ALG9003-03ZZ Gauge, oil level
/ Cummins 4B3.9-G2

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано 10NMX-03-2ZZ Support, front engine 37NMX-3ZZ Relay and bracket 38.6B2MX-27ZZ Sensor AC L001ZZ Cleaner, air ACP9045-02-01ZZ Pump, vacuum AEE9007ZZ Alternator AEH9029ZZ Location, alternator AFE9701(B)-01ZZ Plumbing, air fuel con AFF9736-01ZZ Plumbing, fuel filter AFP9764(A)-25ZZ Coupling, fuel pump AFS9004(A)-01ZZ Pump, lift AFT9797-04ZZ Plumbing, fuel AFW9105(B)-01ZZ Flywheel ALG9003-03ZZ Gauge, oil level AOB9702-3ZZ Cover, cylinder block AP 9366ZZ Approval, agency BP 9704ZZ Lever, rocker BP 9705-01ZZ Follower, cam BP 9807-01ZZ Cover, front gear BP L003ZZ Block, engine CM 9001-01ZZ Cover, cam follower DA 9208ZZ Damper, vibration EA 9098ZZ Accessories, electrical EC 9052ZZ Thermostat EH 9710-03ZZ Drive, alternator FA 9514ZZ Drive, fan FF 9007-01ZZ Filter, fuel FH 9072-05ZZ Housing, flywheel FN 9213ZZ Fan, engine FP L002ZZ Pump, base fuel LA 9007-02ZZ Bracket, lifting LB 9091ZZ Label, engine LB 9101ZZ Labeling engine LC 9017ZZ Cooler, engine oil LP 9711ZZ Pump, lubricating oil OP 9004ZZ Pan, oil OP 9704ZZ Mounting, oil pan PP L004ZZ Performance, parts PP97016-01ZZ Head, cylinder RE 9055ZZ Support, rear engine SCB-24ZZ Kit SCB-62ZZ Kit SM 9001-01ZZ Mounting, starter motor SP 9108ZZ Spacer, fan pilot SS9001zz Paint SS 9530ZZ Kit, miscellaneous ST 9042-02ZZ Motor, starting TH 9001-01ZZ Housing, thermostat VC 9001ZZ Cover, valve WH 9131ZZ Vent, engine coolant WI 9226ZZ Connection, water inlet WI 9701ZZ Connection, water inlet WP 9001-02ZZ Pump, water XM L001ZZ Manifold, exhaust XS L001ZZ Connection, exhaust outlet ZY-1-SYZZ Special part

1

2

3

4

5

6

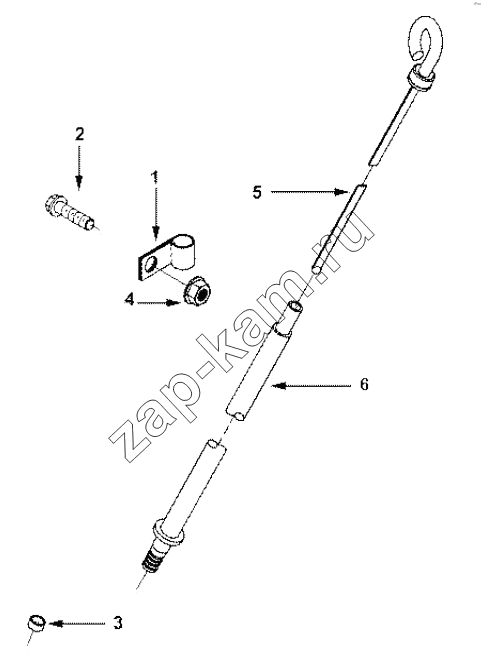

Поз.	Артикул		Название детали	Кол-во	Цена
ALG9003-03ZZ	ALG9003-03ZZ		Gauge, oil level	1;	-
1	A108722		Clamp	1;	-
2	A3900629		Болт	1;	-
3	C3900955		Plug, expasio	2;	-
4	Q340B08		Гайка М6	1;	-
5	Z3900426		Dipstick	1;	-
6	Z3900427		Tube, oil gauge	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
