FV 9234ZZ VALVE, FUEL SHUTOFF
/ Cummins 6BTAA5.9-C180

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано AD 9003ZZ PULLEY, ACCESSORY DRIVE AH 9021ZZ AID, AIR HEATER STARTING AP 90243ZZ APPROVAL, AGENCY BP 9072ZZ BLOCK, ENGINE BP 9091ZZ COVER, FRONT GEAR BP 9710ZZ LEVER ROCKER BP 9711ZZ FOLLOWER, CAM CM 9016ZZ COVER, CAM FOLLOWER CM 9701ZZ COVER, CAM FOLLOWER DA 9208ZZ DAMPER, VIBRATION DF 9051ZZ DRIVE, FRO GER TRA ACC DL 9263ZZ LOCATION, DRAIN EA 9118ZZ ACCESSORIES, ELECTRICAL EC 9052ZZ THERMOSTAT EE 9314ZZ ALTERNATOR EH 97429ZZ DRIVE, ALTERNATOR EH 97541ZZ MOUNTING, ALTERNATOR EI 9701ZZ DRIVE, MECH TACH EO 9106ZZ SENSOR, COO TEMPERATURE EO 9107ZZ SENSOR, OIL PRESSURE FA 9521ZZ DRIVE, FAN FA 9702ZZ MOUNTING, FAN DRIVE FE 9049ZZ PLUMBING, AIR FUEL CONTRO FF 90058ZZ PLUMBING, FUEL FILTER FF 90591ZZ FILTER, FUEL FH 9714ZZ HOUSING, FLYWHEEL FH 9784ZZ PLUMBING, FLYWHEEL HOUSIN FP 90695ZZ COUPLING, FUEL PUMP FP 91286ZZ PUMP, FUEL INJECTION FP 92090ZZ SUPPORT, FUEL PUMP FS 9869ZZ ACCESSORIES, FUEL SYSTEM FS 9933ZZ PUMP, FUEL TRANSFER FT 9161ZZ PLUMBING, FUEL FV 9234ZZ VALVE, FUEL SHUTOFF FW 9787ZZ FLYWHEEL IC 9463ZZ MANIFOLD, AIR INTAKE IC 9494ZZ CONNECTION, AIR TRANSFER IC 9495ZZ CONNECTION, AIR INTAKE IC 9716ZZ MOUNTING, INT CONNECTION LA 9007ZZ BRACKET, LIFTING LB 9101ZZ LABELING, ENGINE LC 9020ZZ COOLER, ENGINE OIL LG 90273ZZ GAUGE, OIL LEVEL LP 9064ZZ PUMP, LUBRICATING OIL OB 9206ZZ COVER, CYLINDER BLOCK OB 9722ZZ COVER, CYLINDER BLOCK OP 9005ZZ PAN, OIL OP 9702ZZ MOUNTING, OIL PAN PP 43106ZZ PARTS, PERFORMANCE PP 97298ZZ MOUTING CYLINDER HEAD PP 99561ZZ HEAD, CYLINDER PP 99562ZZ TURBOCHARGER SM 9702ZZ MOUNTING STARTING SP 9005ZZ SPACER, FAN PILOT SS 9164ZZ PAINT ST 9423ZZ MOTOR, STARTING TB 9766ZZ MOUNTING, EXHAUST MANIFOLD TB 9823ZZ MANIFOLD, EXHAUST TH 9114ZZ HOUSING, THERMOSTAT TL 9106ZZ LEVER, THROTTLE TO 90000ZZ TOOL, SERVICE TP 97342ZZ PLUMBING, TURBOCHARGER VC 9022ZZ COVER, VALVE WH 9125ZZ VENT, ENGINE COOLANT WI 9226ZZ CONNECTION, WATER INLET WI 9701ZZ CONNECTION, WATER INLET WP 9617ZZ PUMP, WATER XS 9009ZZ CONNECTION, EXHAUST OUTLET

1

2

3

4

5

6

7

8

9

10

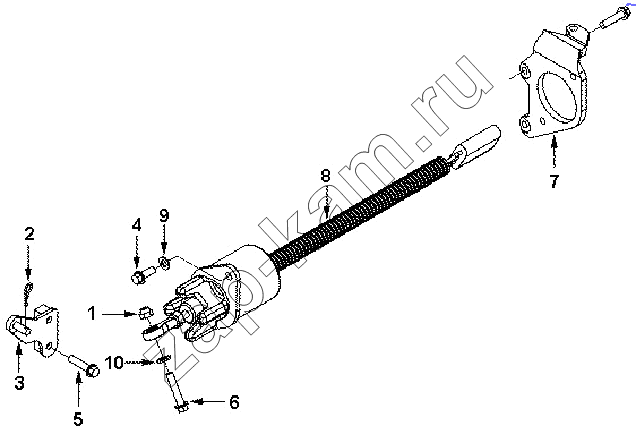

Поз.	Артикул		Название детали	Кол-во	Цена
FV9234ZZ	FV9234ZZ		Valve, fuel shutoff	1;	-
1	3910959		Контргайка	1;	-
2	C3919449		Шплинт	1;	-
3	C3922832		Рычаг электромагнитного клапана	1;	-
4	C3936683		Screw, hex flange head cap	2;	-
5	C3936684		Screw, hex flange head cap	4;	-
6	C3936685		Screw, hex flange head cap	1;	-
7	C3965494		Bracket, solenoid	1;	-
8	C4942878		Solenoid, fuel pump	1;	-
9	D3529610		Шайба	2;	-
10	S600		Замковая шайба	3;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
