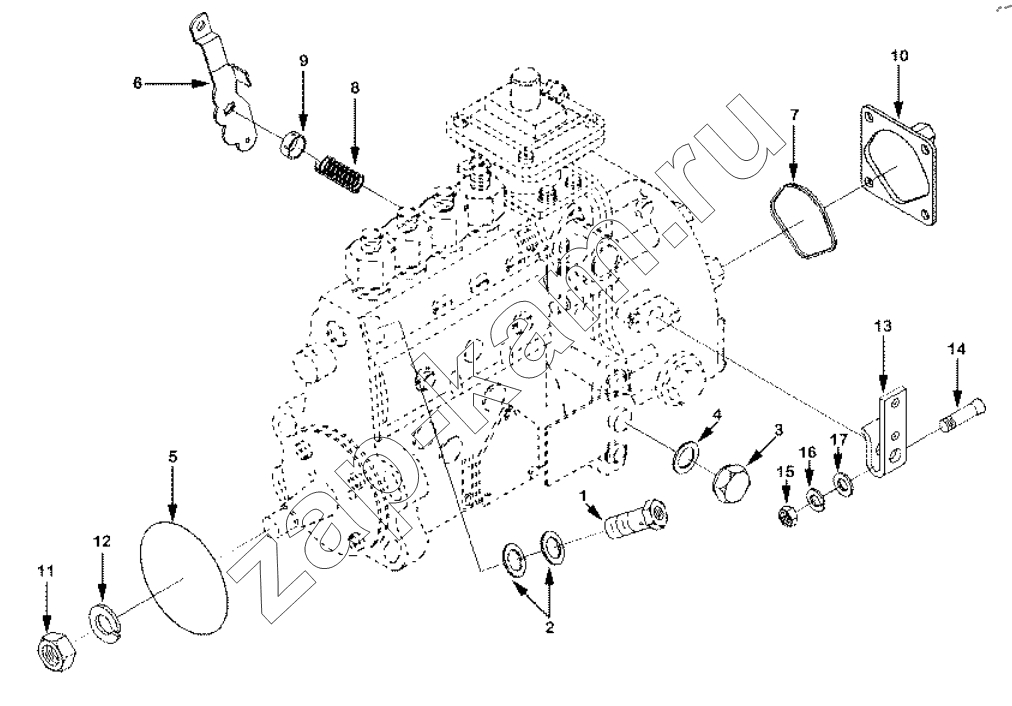

Base Fuel Pump
/ Cummins B3.9-C116
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| FP97757-01 | FP97757-01 | Bosch "a" Pump With RSV | ; | |
| 3928603 | 3928603 | Pump, Fuel Injection | 1; | |
| FP97757-01 | FP97757-01 | Base Fuel Pump | ; | |
| 1 | 3912886 | Valve, Overflow | 1; | |
| 2 | 3912887 | Washer, Sealing | 2; | |
| 3 | 3912888 | Plug, Timing | 1; | |
| 4 | 3912889 | Washer, Sealing | 1; | |
| 5 | 3910503 | O Ring, Sealing | 1; | |
| 6 | 3930657 | Lever, Shutoff | 1; | |
| 7 | 3919286 | O Ring, Sealing | 1; | |
| 8 | 3912890 | Spring, Shutoff | 1; | |
| 9 | 3912891 | Housing, Return Spring | 1; | |
| 10 | 3915169 | Cover, Fuel Pump | 1; | |
| 11 | 3912894 | Nut, Gear Retaining | 1; | |
| 12 | 3912895 | Washer, Lock | 1; | |
| 13 | 3913327 | Lever, Control Assy | 1; | |
| 14 | 3920929 | Bolt, Throttle Shaft | 1; | |
| 15 | 3920930 | Nut, Hexagon | 1; | |
| 16 | 3907478 | Lockwasher | 1; | |
| 17 | 3920931 | Washer, Flat | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
