Valve Cover
/ Cummins B3.9-C116

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано Engine Block Crankshaft And Bearings Front Drive Adapter Connecting Rod And Piston Cover, Front Gear Dataplate Camshaft Camshaft Gear Cover, Cylinder Block Cylinder Head Cylinder Head Rocker Levers Paint Skid, 4b Std Engine, Dry Valve Cover Valve Tappet Cam Follower Cover Air Fuel Control Plumbing Fuel Shutoff Valve Fuel System Accessories Base Fuel Pump Fuel Injector Fuel Plumbing Fuel Plumbing Fuel Filter Plumbing Pump, Fuel Transfer Fuel Drain Location Oil Pan Oil Pan Gauge, Oil Level Gauge, Oil Level Lube Oil Pump Water Pump Thermostat Thermostat Housing Water Inlet Connection Water Inlet Connection Fuel Pump Coupling Drive, Fro Ger Tra Acc Aftercooler Plumbing Aid, Air Heater Starting Turbocharger Turbocharger Arrangement, Turbocharger Turbocharger Plumbing Connection, Exhaust Outlet Alternator Alternator Drive Alternator Location Drive, Alternator Starting Motor Starting Motor Mounting Oil Pressure Sensor Mechanical Tachometer Drive Mechanical Tachometer Drive Flywheel Housing Flywheel Housing Set, Lower Engine Gasket Set, Upper Engine Gasket Lifting Bracket Rating, Fuel

1

2

3

4

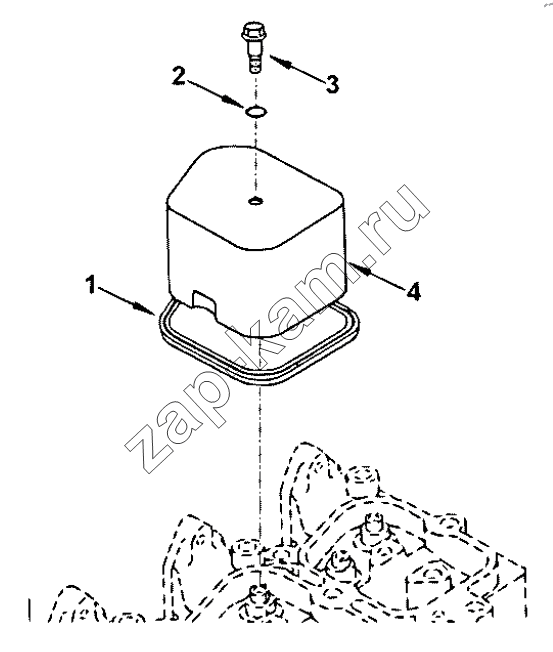

Поз.	Артикул		Название детали	Кол-во
VC9008-04	VC9008-04		Valve Cover	;
1	3930906		Прокладка для колпака клапанного механизма	4;
2	3935449		Шумоизолятор	4;
3	3907049		Винт с шестигранной головкой	4;
4	3928404		Колпак клапанного механизма	4;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
