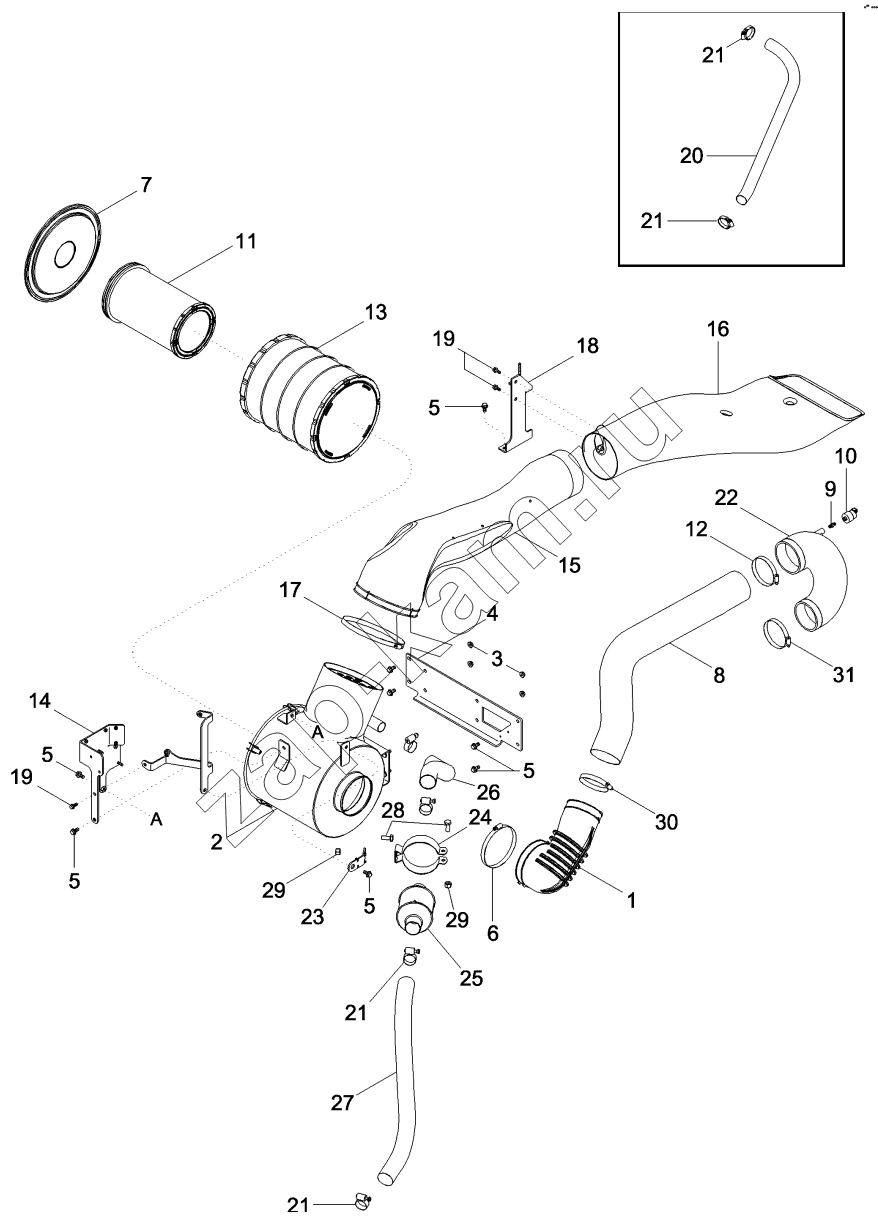

AIR INDUCTION SYSTEM - STANDARD DUTY
/ Cummins 310
1
2
3
4
5
5
5
5
5
6
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
21
21
21
21
22
22
23
24
25
26
27
28
29
29
30
31
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 87384983 | DUCT | 1; | |
| 2 | 87307974 | AIR CLEANER | 1; | |
| 3 | 829-2410 | NUT | 4; | |
| 4 | 87361276 | BRACKET | 1; | |
| 5 | 844-10020 | BOLT | 9; | |
| 6 | 87656134 | CLAMP | 1; | |
| 7 | 379554A1 | COVER | 1; | |
| 8 | 87547220 | TUBE ASSY | 1; | |
| 8 | 87357981 | TUBE ASSY | 1; | |
| 9 | 217-1079 | CONNECTOR | 1; | |
| 10 | 279492A1 | SWITCH | 1; | |
| 11 | 367350A1 | FILTER | 1; | |
| 12 | 87652892 | CLAMP | 1; | |
| 13 | 367349A1 | FILTER | 1; | |
| 14 | 87339310 | BRACKET | 1; | |
| 14 | 87548859 | BRACKET | 1; | |
| 15 | 87335608 | TUBE | 1; | |
| 16 | 87307977 | DUCT | 1; | |
| 17 | 87562289 | CLAMP | 1; | |
| 18 | 87441640 | BRACKET | 1; | |
| 19 | 844-8020 | BOLT | 3; | |
| 20 | 87443700 | HOSE | 1; | |
| 21 | 214-1424 | CLAMP | 2; | |
| 21 | 214-1424 | CLAMP | 4; | |
| 22 | 87357621 | HOSE | 1; | |
| 22 | 87651295 | HOSE | 1; | |
| 23 | 87523365 | BRACKET | 1; | |
| 24 | 87300581 | CLAMP | 1; | |
| 25 | 284427A1 | VALVE | 1; | |
| 26 | 87525729 | HOSE | 1; | |
| 27 | 87525734 | HOSE | 1; | |
| 28 | 627-8020 | BOLT | 2; | |
| 29 | 832-10408 | NUT | 2; | |
| 30 | 87656133 | CLAMP | 1; | |
| 31 | 87652891 | CLAMP | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
