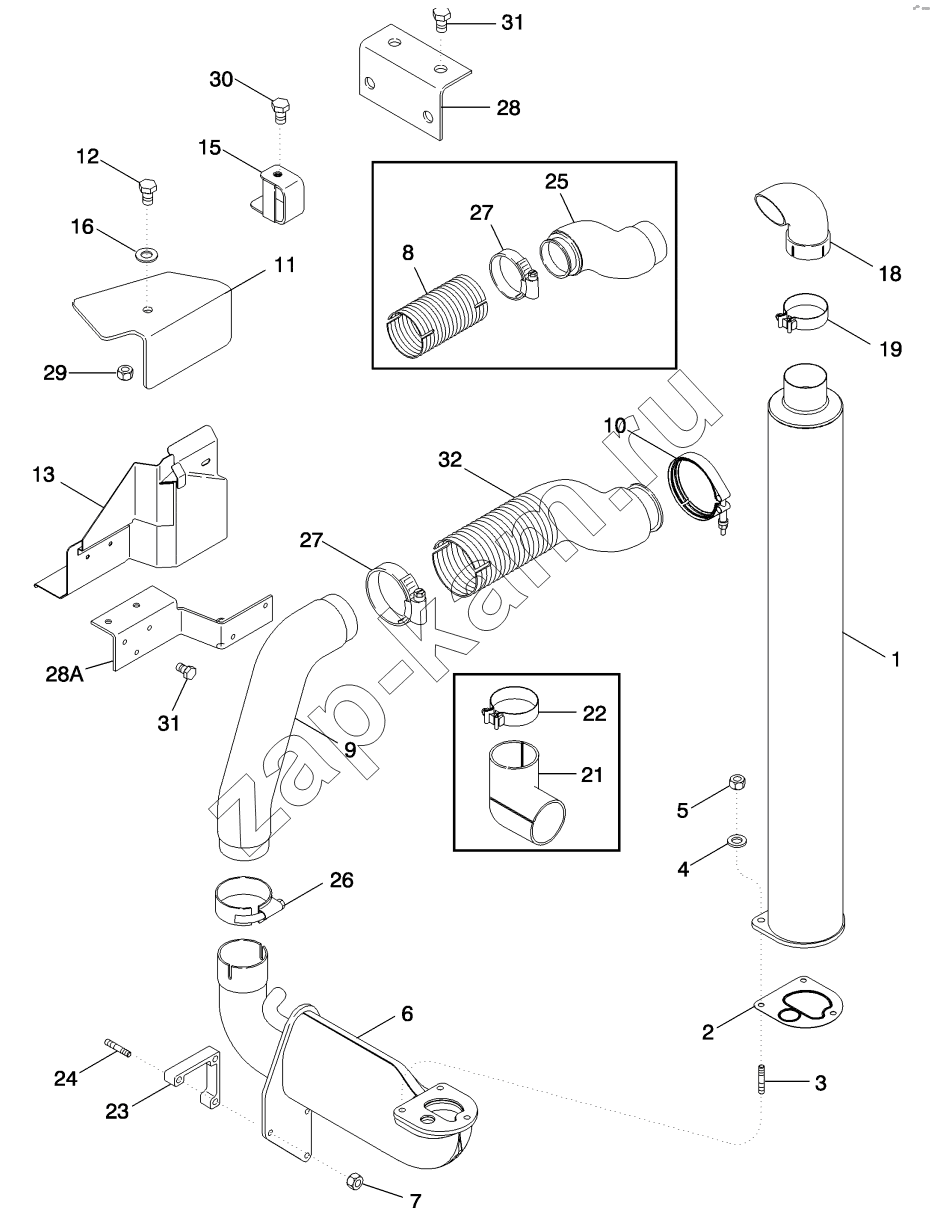

EXHAUST SYSTEM
/ Cummins 310
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
15
16
16
18
19
21
21
22
23
24
25
26
27
27
28
28A
29
30
31
31
32
32
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 87369371 | MUFFLER | 1; | - | |
| 1 | 87369363 | MUFFLER | 1; | - | |
| 2 | 226775A1 | GASKET | 1; | - | |
| 3 | 387795A1 | STUD | 3; | - | |
| 4 | 387798A1 | WASHER | 3; | - | |
| 5 | 387796A1 | NUT | 3; | - | |
| 6 | 87588155 | SUPPORT | 1; | - | |
| 7 | 829-2412 | NUT | 3; | - | |
| 8 | HOSE | HOSE | 1; | - | |
| 9 | 87607503 | TUBE ASSY | 1; | - | |
| 10 | A170807 | CLAMP | 1; | - | |
| 11 | 87451651 | BRACKET | 1; | - | |
| 12 | 844-10016 | BOLT | 1; | - | |
| 13 | 87615756 | SHIELD | 1; | - | |
| 13 | 87715386 | SHIELD | 1; | - | |
| 15 | 87615566 | BRACKET | 1; | - | |
| 16 | 495-81120 | WASHER | 3; | - | |
| 16 | 495-81120 | WASHER | 5; | - | |
| 18 | 87381922 | EXTENSION | 1; | - | |
| 19 | 87449404 | CLAMP | 1; | - | |
| 21 | 87325972 | INSULATION | 1; | - | |
| 21 | 87620835 | INSULATION | 1; | - | |
| 22 | 214-3280 | CLAMP | 2; | - | |
| 23 | 87332194 | SPACER | 1; | - | |
| 24 | 87330610 | STUD | 3; | - | |
| 25 | TUBE | TUBE | 1; | - | |
| 26 | 87449404 | CLAMP | 1; | - | |
| 27 | 87427885 | CLAMP | 2; | - | |
| 27 | 87427885 | CLAMP | 1; | - | |
| 28 | 87449823 | BRACKET | 1; | - | |
| 28A | 87715390 | BRACKET | 1; | - | |
| 29 | 825-2408 | NUT | 1; | - | |
| 30 | 844-10020 | BOLT | 2; | - | |
| 31 | 844-8020 | BOLT | 3; | - | |
| 31 | 844-8020 | BOLT | 5; | - | |
| 32 | 87520146 | TUBE ASSY | 1; | - | |
| 32 | 87714128 | TUBE ASSY | 1; | - |
