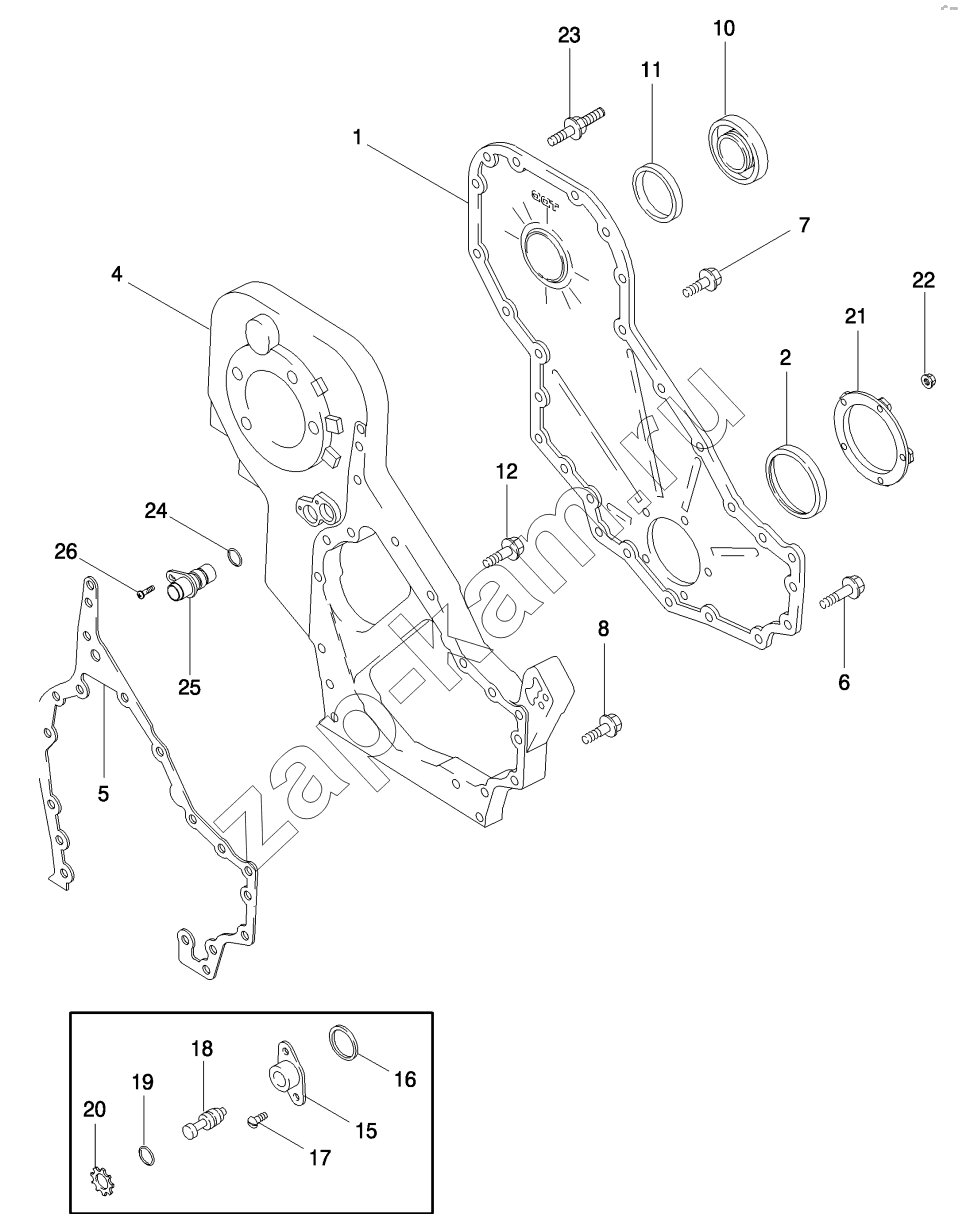

FRONT GEAR COVER
/ Cummins 310
1
2
4
5
6
7
8
10
11
12
15
16
17
18
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| J920706 | J920706 | PLUG | 1; | |
| 263136 | 263136 | PLUG | 1; | |
| 217-438 | 217-438 | PLUG | 2; | |
| 1 | 87340005 | COVER | 1; | |
| 2 | SEAL | SEAL | 1; | |
| 4 | J945852 | TRANSMISSION HOUSING | 1; | |
| 5 | J944293 | GASKET | 1; | |
| 6 | J926863 | BOLT | 11; | |
| 7 | 845-8016 | BOLT | 15; | |
| 8 | J926846 | BOLT | 3; | |
| 10 | J903463 | COVER | 1; | |
| 11 | J903475 | SEAL | 1; | |
| 12 | J943885 | BOLT | 2; | |
| 15 | J919683 | HOUSING | 1; | |
| 16 | J915772 | SEALRING | 1; | |
| 17 | J907998 | SCREW | 2; | |
| 18 | J903924 | PIN | 1; | |
| 19 | J913994 | O-RING | 1; | |
| 20 | 100-2587 | RING | 1; | |
| 21 | J941786 | CARRIER | 1; | |
| 22 | J938077 | NUT | 5; | |
| 23 | J921816 | BOLT | 2; | |
| 24 | 87400235 | O-RING | 1; | |
| 25 | 87338343 | PLUG | 1; | |
| 26 | 845-6015 | BOLT | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
