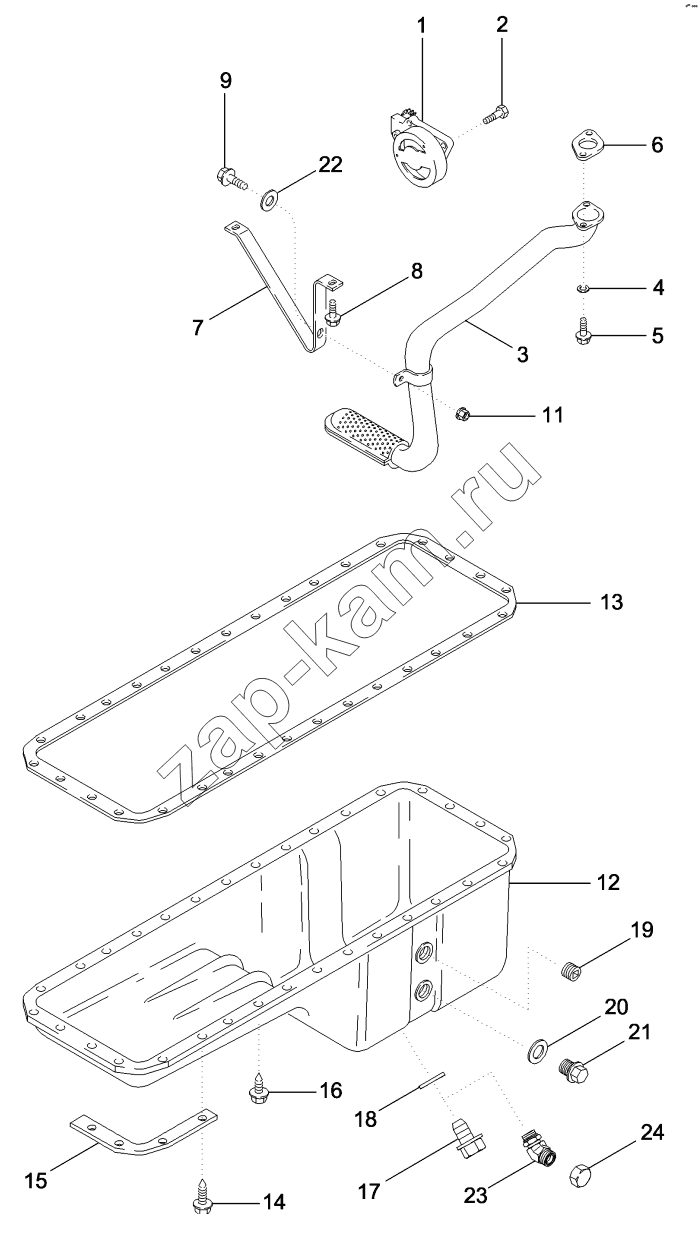

OIL PUMP AND OIL PAN
/ Cummins 310
1
1
1
2
3
3
4
5
6
7
8
9
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | J991123 | PUMP | 1; | |
| 1 | JR991123 | REMAN-PUMP | 1; | |
| 1 | JC991123 | CORE-PUMP | 1; | |
| 2 | J900677 | BOLT | 4; | |
| 3 | J928828 | TUBE ASSY | 1; | |
| 3 | 87357465 | TUBE ASSY | 1; | |
| 4 | J926865 | SPACER | 2; | |
| 5 | 845-6030 | BOLT | 2; | |
| 6 | 87447959 | GASKET | 1; | |
| 7 | J927611 | BRACKET | 1; | |
| 8 | 845-6015 | BOLT | 2; | |
| 9 | 845-6020 | BOLT | 1; | |
| 11 | 825-2406 | NUT | 1; | |
| 12 | 87357469 | PAN | 1; | |
| 12 | 87362733 | PAN | 1; | |
| 13 | 87308050 | GASKET | 1; | |
| 14 | J907860 | BOLT | 16; | |
| 14 | J907860 | BOLT | 32; | |
| 15 | 87414461 | SUPPORT | 4; | |
| 16 | J920400 | BOLT | 16; | |
| 17 | J924147 | PLUG | 1; | |
| 18 | J920773 | WASHER | 1; | |
| 19 | 86637727 | PLUG | 1; | |
| 20 | J902425 | WASHER | 1; | |
| 21 | J924148 | PLUG | 1; | |
| 22 | J910960 | WASHER | 1; | |
| 23 | 87327028 | ELBOW | 1; | |
| 24 | 701-905 | CAP | 1; |
