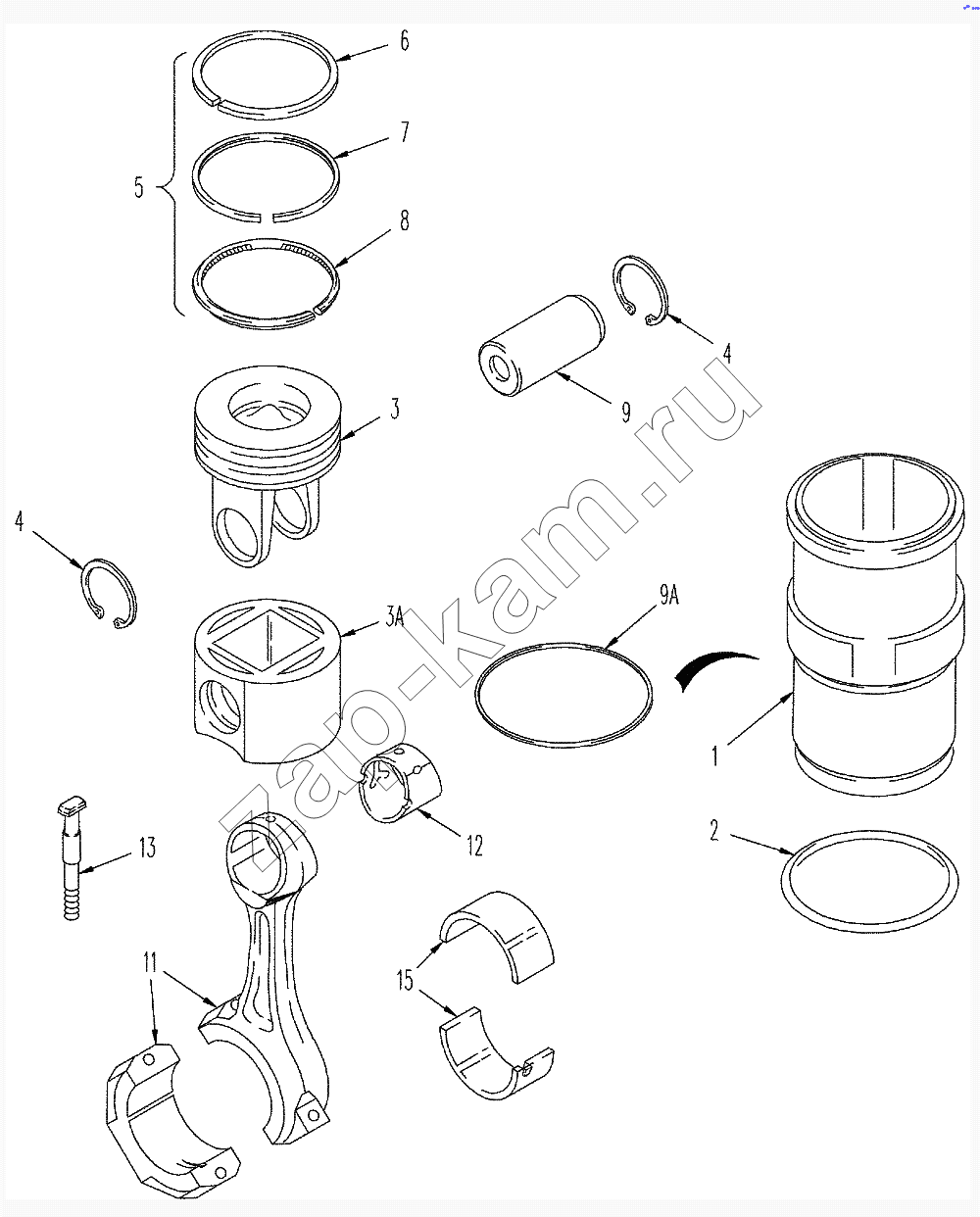

PISTONS AND CONNECTING RODS, MAGNUM 310
/ Cummins 310
1
2
3
3A
4
4
5
6
7
8
9
9A
9A
9A
9A
9A
11
12
13
15
15
15
15
15
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 87356567 | 87356567 | PISTON | 6; | |
| 87685905 | 87685905 | PISTON | 6; | |
| 87546493 | 87546493 | KIT | 1; | |
| 1 | J948095 | SLEEVE CYLINDER | 1; | |
| 2 | J907177 | O-RING | 1; | |
| 87356533 | 87356533 | KIT | 6; | |
| 87685890 | 87685890 | KIT | 6; | |
| 3 | PISTON | PISTON | 1; | |
| 3A | SKIRT | SKIRT | 1; | |
| 4 | 100-21175 | RING | 2; | |
| 4 | 100-21175 | RING | 12; | |
| 5 | 87343194 | KIT | 6; | |
| 6 | RING | RING | 1; | |
| 7 | RING | RING | 1; | |
| 8 | RING | RING | 6; | |
| 9 | 87342670 | PIN | 1; | |
| 9A | J924445 | SHIM | AR; | |
| 9A | J924446 | SHIM | AR; | |
| 9A | J924447 | SHIM | AR; | |
| 9A | J924448 | SHIM | AR; | |
| 9A | J924449 | SHIM | AR; | |
| 87356548 | 87356548 | ROD | 6; | |
| 87356732 | 87356732 | REMAN-ROD CONNECTING | 1; | |
| 87356735 | 87356735 | CORE-ROD CONNECTING | 1; | |
| 11 | ROD | ROD | 1; | |
| 12 | 87687031 | BUSHING | 1; | |
| 13 | J944679 | BOLT | 2; | |
| 15 | 87356776 | KIT | 6; | |
| 15 | 87356813 | KIT | 6; | |
| 15 | 87356833 | KIT | 6; | |
| 15 | 87356848 | KIT | 6; | |
| 15 | 87356862 | KIT | 6; | |
| 16 | 87308050 | GASKET | 1; | |
| 17 | 87344132 | GASKET | 1; | |
| 18 | 87447959 | GASKET | 1; |
