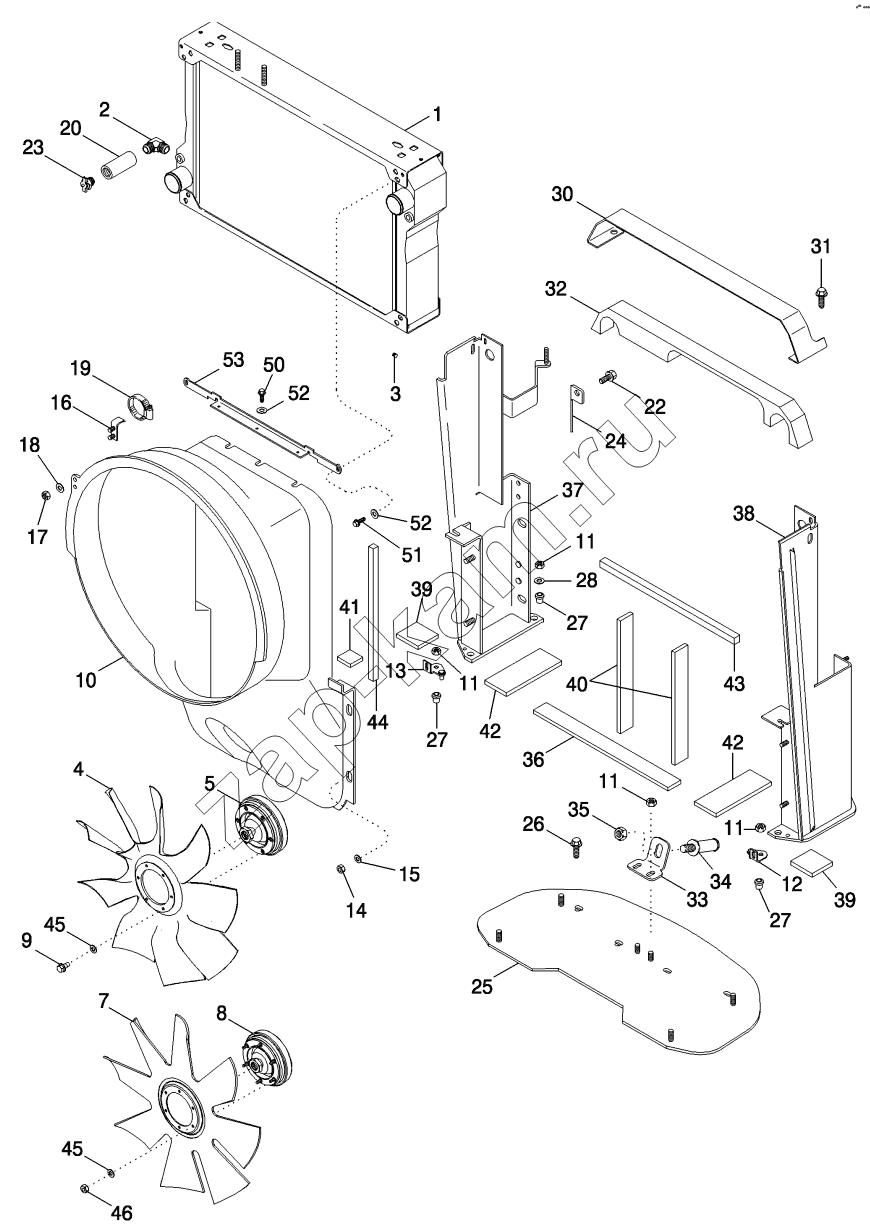

RADIATOR AND FAN SHROUD
/ Cummins 310
1
2
3
4
5
7
8
9
10
11
11
11
11
12
13
14
15
16
17
18
19
20
22
23
23
24
25
26
27
27
27
28
30
31
32
33
34
35
36
37
38
39
39
40
41
42
42
43
44
44
45
45
46
50
51
52
52
53
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | REF | INSTRUCTION | 1; | |
| 2 | 217-1225 | ELBOW | 1; | |
| 3 | 86568834 | PLUG | 1; | |
| 4 | 87445032 | FAN | 1; | |
| 5 | 87446414 | DRIVE ASSY | 1; | |
| 7 | 87446914 | FAN | 1; | |
| 8 | 87318959 | DRIVE ASSY | 1; | |
| 9 | 555-1 | BOLT | 6; | |
| 10 | 87357057 | SHROUD | 1; | |
| 11 | 825-2410 | NUT | 6; | |
| 12 | 87443609 | BRACKET | 1; | |
| 13 | 87443611 | BRACKET | 1; | |
| 14 | 895-25008 | WASHER | 4; | |
| 15 | 825-2408 | NUT | 4; | |
| 16 | 87438422 | BRACKET | 1; | |
| 17 | 829-1406 | NUT | 2; | |
| 18 | 895-11006 | WASHER | 2; | |
| 19 | 214-3248 | CLAMP | 1; | |
| 20 | 87350039 | TUBE | 1; | |
| 22 | 555-1 | BOLT | 1; | |
| 23 | 217-103 | COCK | 1; | |
| 23 | 217-92 | COCK | 1; | |
| 24 | 87313142 | BRACKET | 1; | |
| 25 | 87367856 | SUPPORT | 1; | |
| 26 | 844-12025 | BOLT | 4; | |
| 27 | 434177A1 | MOUNT | 4; | |
| 28 | 495-81148 | WASHER | 2; | |
| 29 | 844-8025 | BOLT | 4; | |
| 30 | 87340498 | BRACKET | 1; | |
| 31 | 844-8025 | BOLT | 5; | |
| 32 | 87456357 | SEAL | 1; | |
| 33 | 87312069 | PLATE | 1; | |
| 34 | 301081A1 | SCREW | 1; | |
| 35 | 825-2412 | NUT | 1; | |
| 36 | 87356125 | SEAL | 1; | |
| 37 | 87621948 | SUPPORT | 1; | |
| 38 | 87621960 | SUPPORT | 1; | |
| 39 | 87456329 | SEAL | 2; | |
| 40 | 87356358 | SEAL | 2; | |
| 41 | 87438831 | SEAL | 2; | |
| 42 | 87356126 | SEAL | 2; | |
| 43 | 87356124 | SEAL | 1; | |
| 44 | 87356123 | SEAL | 2; | |
| 44 | 87390684 | SEAL | 2; | |
| 45 | 496-11034 | WASHER | 6; | |
| 46 | 829-1408 | NUT | 6; | |
| 50 | 844-8025 | BOLT | 3; | |
| 51 | 844-8020 | BOLT | 2; | |
| 52 | 895-25008 | WASHER | 5; | |
| 53 | 87454889 | BRACKET | 1; |
