ALTERNATOR LOCATION
/ Cummins-4BT3.9

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано FRONT DRIVE ADAPTER DATAPLATE DATAPLATE FRONT GEAR COVER BP9703 FRONT GEAR COVER VALVE TAPPET FRONT GEAR COVER BP9727 CYLINDER BLOCK CRANKSHAFT REAR CLUTCH CAM FOLLOWER COVER THERMOSTAT ALTERNATOR LOCATION ALTERNATOR LOCATION ALTERNATOR LOCATION TEMPERATURE SENSOR FAN DRIVE FAN DRIVE FAN DRIVE AIR FUEL CONTROL PLUMBING FUEL FILTER FUEL FILTER PLUMBING FLYWHEEL HOUSING FLYWHEEL HOUSING FUEL PUMP COUPLING BOSCH INJECTION PUMP BOSCH VE PUMP SERVICE PARTS BOSCH INJECTION PUMP BOSCH INJECTION PUMP BOSCH VE PUMP SERVICE PARTS FUEL SYSTEM ACCESSORIES PLUMBING, FUEL FLYWHEEL LIFTING BRACKET LUBRICATING OIL COOLER LUBRICATING OIL COOLER OIL LEVEL GAUGE OIL LEVEL GAUGE LUBRICATING OIL PUMP CYLINDER BLOCK COVER CYLINDER BLOCK COVER CYLINDER BLOCK COVER OIL PAN CONNECTING ROD AND PISTON CAMSHAFT CYLINDER HEAD FUEL INJECTOR FUEL INJECTOR TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER TURBOCHARGER STARTING MOTOR MOUNTING FAN PILOT SPACER STARTING MOTOR TURBOCHARGER LOCATION TURBOCHARGER LOCATION TURBOCHARGER LOCATION THERMOSTAT HOUSING TURBOCHARGER PLUMBING TRANSMISSION VALVE COVER WATER INLET CONNECTION WATER INLET CONNECTION PUMP WATER

1

2

3

4

5

6

6

7

8

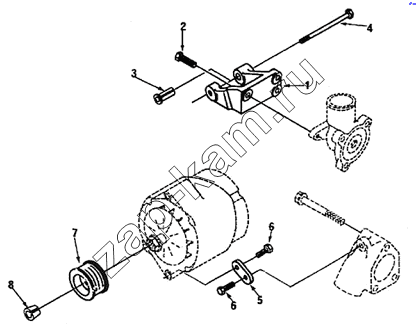

Поз.	Артикул		Название детали	Кол-во
1	3910713		Support, Alternator	1;
2	3900631		Винт с шестигранной головкой	3;
3	3910715		Spacer, Mounting	1;
4	3908226		Screw, Hex Flange Head Cap	1;
5	3903089		Brace, Alternator	1;
6	3900630		Винт с шестигранной головкой	2;
7	3908560		Pulley, Alternator	1;
8	3908563		Retainer, Pulley	1;
