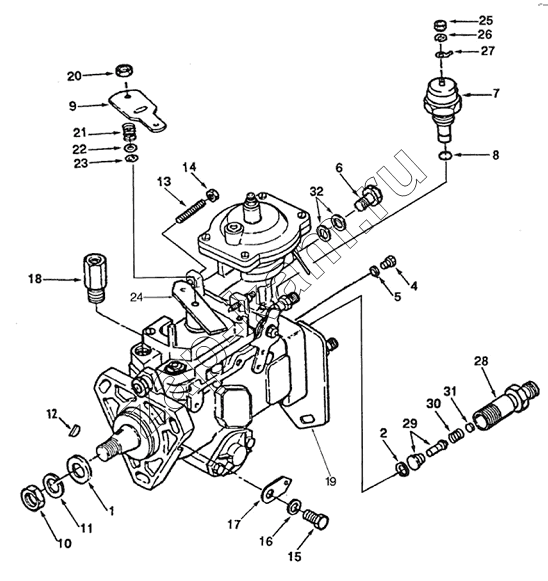

BOSCH VE PUMP SERVICE PARTS
/ Cummins-4BT3.9
1
2
2
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3802047 | 3802047 | Kit, Delivery Bypass Valve | 1; | |
| 1 | 3903569 | Seal, Shaft | 1; | |
| 2 | 3903570 | Gasket, Delivery Valve | 4; | |
| 2 | 3903570 | Gasket, Delivery Valve | 1; | |
| 4 | 3903572 | Screw, Vent | 1; | |
| 5 | 3903573 | Gasket, Vent Screw | 1; | |
| 6 | 3905465 | Screw, Banjo Connector | 1; | |
| 7 | 3903575 | Kit, Solenoid | 1; | |
| 7 | 3903576 | Kit, Solenoid | 1; | |
| 8 | 3903577 | O'Ring, Solenoid | 1; | |
| 8 | 3903577 | O'Ring, Solenoid | 1; | |
| 9 | 3908765 | Lever, Control | 1; | |
| 10 | 3903738 | Nut, Regular Hexagon | 1; | |
| 11 | S-609 | Washer, Lock | 1; | |
| 12 | 3902332 | Key, Plain Woodruff | 1; | |
| 13 | 3904782 | Screw, Low Idle Stop | 1; | |
| 14 | 3904783 | Nut, Idle Screw Hex | 1; | |
| 15 | 3904784 | Screw, Timing Lock | 1; | |
| 16 | 3904785 | O'Ring Timing Lock | 1; | |
| 17 | 3904786 | Plate, Timing Lock | 1; | |
| 18 | 3903382 | Adapter, Reducing | 1; | |
| 19 | 3905696 | Bracket (4VE) | 1; | |
| 20 | 3907475 | Nut | 1; | |
| 21 | 3907476 | Spring | 1; | |
| 22 | 3907477 | Shim | 1; | |
| 23 | 3907478 | Lockwasher | 1; | |
| 24 | 3907479 | Lever, Splined | 1; | |
| 25 | 3907480 | Nut | 1; | |
| 26 | 3907481 | Lockwasher | 1; | |
| 27 | 3907482 | Blade, Terminal | 1; | |
| 28 | 3910794 | Fitting, Bypass Valve | 1; | |
| 29 | 3910795 | Valve, Bypass | 1; | |
| 30 | 3910796 | Spring | 1; | |
| 31 | 39107S7 | Shim | 1; | |
| 32 | 3903037 | Washer, Sealing | 2; |
