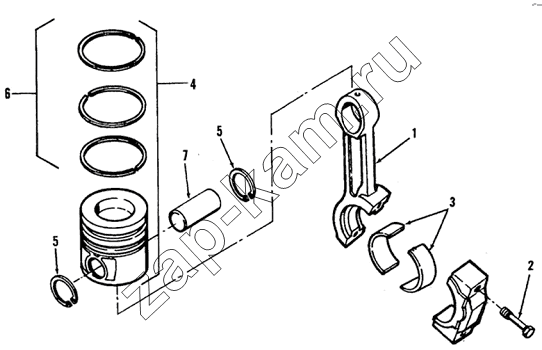

CONNECTING ROD AND PISTON
/ Cummins-4BT3.9
1
1
2
3
3
3
3
3
4
4
4
5
5
5
5
6
6
6
7
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3908816 | 3908816 | Piston, Engine | 1; | |
| 3908815 | 3908815 | Piston, Engine | 1; | |
| 3907163 | 3907163 | Piston, Engine | 1; | |
| 1 | 3901569 | Rod, Engine Connecting | 4; | |
| 1 | 3901568 | Rod, Engine Connecting | 1; | |
| 2 | 3900919 | Screw, Connecting Rod Cap | 2; | |
| 3 | 3901174 | Bearing, Connecting Rod | ; | |
| 3 | 3901173 | Bearing, Connecting Rod | ; | |
| 3 | 3901172 | Bearing, Connecting Rod | ; | |
| 3 | 3901171 | Beating, Connecting Rod | ; | |
| 3 | 3901170 | Bearing, Connecting Rod | 2; | |
| 4 | 3802132 | Kit, Engine Piston | 4; | |
| 4 | 3802160 | Kit, Engine Piston | 4; | |
| 4 | 3802134 | Kit, Engine Piston | 4; | |
| 5 | 3901706 | Ring, Retaining | 2; | |
| 5 | 3901706 | Ring, Retaining | 2; | |
| 5 | 3901706 | Ring, Retaining | 2; | |
| 6 | 3802052 | Set, Piston Ring | 1; | |
| 6 | 3802054 | Set, Piston Ring | 1; | |
| 6 | 3802050 | Set, Piston Ring | 1; | |
| 7 | 3901793 | Pin, Piston | 4; |
