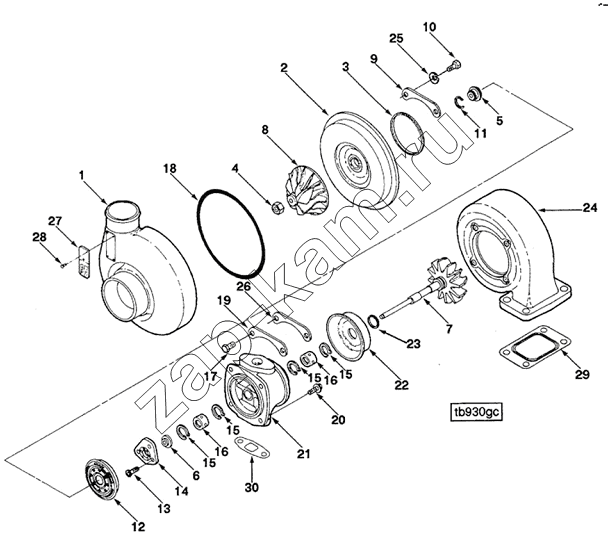

TURBOCHARGER
/ Cummins-4BT3.9
3802113
3522900
1
2
3
3
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
15
15
15
15
16
16
16
17
17
18
19
20
20
21
22
23
23
24
25
25
26
27
28
29
29
30
30
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3802113 | 3802113 | Turbocharger | 1; | |
| 3523958 | 3523958 | Seal, O'Ring | 1; | |
| 3545652 | 3545652 | Kit, Turbo Repair | 1; | |
| 3802147 | 3802147 | Kit, Turbo Repair | 1; | |
| 3523323 | 3523323 | Rotor Assembly | 1; | |
| 3522900 | 3522900 | Turbocharger | 1; | |
| 1 | 3521848 | Housing, Compressor | 1; | |
| 2 | 3521121 | Diffuser, Turbocharger | 1; | |
| 3 | 3523176 | Seal, Rectangular Ring | 1; | |
| 3 | 3502449 | Seal, Rectangular Ring | 1; | |
| 3 | 3502449 | Seal, Rectangular Ring | 1; | |
| 4 | 3503562 | Nut, Lock | 1; | |
| 5 | 3503662 | Slinger, Oil | 1; | |
| 6 | 3518980 | Collar, Thrust | 1; | |
| 7 | 3519336 | Shaft & Wheel | 1; | |
| 8 | 3521863 | Impeller, Tur Compressor | 3; | |
| 9 | 3502734 | Plate, Clamping | 6; | |
| 10 | 3759526 | Screw, Hexagon Head Set | 1; | |
| 11 | 3758848 | Seal, Split Ring | 1; | |
| 11 | 3758848 | Seal, Split Ring | 1; | |
| 12 | 3503668 | Baffle, Oil | 1; | |
| 13 | 3503347 | Screw, Flat Head Cap | 3; | |
| 13 | 3503347 | Screw, Flat Head Cap | 3; | |
| 14 | 3525739 | Bearing, Tur Thrust | 1; | |
| 14 | 3525739 | Bearing, Tur Thrust | 1; | |
| 15 | 3762259 | Ring, Retaining | 4; | |
| 15 | 3762259 | Ring, Retaining | 4; | |
| 16 | 3503100 | Bearing, Turbocharger | 2; | |
| 16 | 3503100 | Bearing, Turbocharger | 2; | |
| 17 | 3759917 | Screw, Hexagon Head Set | 4; | |
| 17 | 3759917 | Screw, Hexagon Head Set | 4; | |
| 18 | 3523958 | Seal, O'Ring | 1; | |
| 19 | 3501188 | Plate, Clamping | 2; | |
| 20 | 3527184 | Screw, Hex Flange Head Cap | 4; | |
| 20 | 3527184 | Screw, Hex Flange Head Cap | 4; | |
| 21 | 3520702 | Housing, Tur Bearing | 1; | |
| 22 | 3519302 | Shield, Turbocharger Heat | 1; | |
| 23 | 3756754 | Seal, Split Ring | 1; | |
| 23 | 3756754 | Seal, Split Ring | 1; | |
| 24 | 3521927 | Housing, Turbine | 1; | |
| 25 | 3518004 | Washer, Lock | 6; | |
| 25 | 3518004 | Washer, Lock | 8; | |
| 26 | 3501102 | Lock plate | 2; | |
| 27 | 3527619 | Data plate | 1; | |
| 28 | 3519163 | Screw, Drive | 2; | |
| 29 | 3709861 | Gasket, Turbocharger | 1; | |
| 29 | 3901356 | Gasket, Turbocharger | 1; | |
| 30 | 3914388 | Gasket, Oil Drain | 1; | |
| 30 | 3914388 | Gasket, Oil Drain | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
