IM 9101 Manifold, air intake
/ Cummins L325-20

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано AF 9156 Adapter front drive AP 9481 Approval, agency BB 9171 Block, cylinder BB 9213 Plumbing, cyl blk lbc BB 9215 Plumbing, cyl blk coolant BB 9881 Housing, front gear BR 9239 Breather, crankcase CA 9083 Plumbing, air cleaner CC 9367 Plumbing, cpr coolant CH 9087 Plumbing, coo htr stg aid CI 9124 Arrangement, cpr air inle CL 9079 Clutch, rear CP 9521 Compressor, air DA 9270 Damper, vibration EA 9089 Accessories, electrical EB 9057 Brake, engine EC 9702 Thermostat ED 9071 Documentatio, eng idt EE 9359 Alternator EH 9591 Mounting, alternator EM 9225 Support, front engine FA 9310 Drive, fan FA 9739 Mounting, fan drive FE 9062 Plumbing, air fuel contro FF 9593 Location, fuel filter FF 9594 Plumbing, fuel filter FH 9413 Housing, flywheel FH 9777 Plumbing, flywheel housin FP90753 Pump, fuel FP90370 Mounting, fuel pump FS 9849 Pump, fuel transfer FT 9127 Plumbing, fuel FV 9352 Valve, fuel shutoff FW90179 Flywheel FW90025 Mounting, flywheel GG 9804 Mounting, gear cover GG 9806 Cover, front gear HC 9115 Plumbing, cabin heater HD 9201 Pump, auxiliary IC 9376 Hose, air intake IC 9657 Connection, air intake IM 9101 Manifold, air intake IT 9043 Connection, air transfer LA 9074 Arrangement, lifting LA 9128 Mounting, lifting bracket LC 9765 Cooler, engine oil LF 9130 Filter lubricating oil LG90191 Gauge, oil level LO 9701 Oil, engine LP 9724 Pump, lubricating oil OB 9340 Arrangement, oil fill OB 9363 Cover, cylinder block OP 9338 Pan, oil PA 9001 Pulley, accessory PP41480 Parts, performance PP98698 Plumbing, injector PP98994 Plumbing, cylinder head PP99130 Turbocharger PP99187 Head, cylinder RL9783 Lever, rocker RP9042 Vent, engine connection SD9113 Switch, temperature SD9169 Sensor, oil pressure SM9772 Mounting, starting SS9471 Paint ST9543 Motor, starting TB91406 Arrangement, turbocharger TK9022 Cooler, tor converter TO90003 Tool, service TP97292 Plumbing, turbocharger VC9775 Cover, valve WI9198 Connection, water inlet WO9052 Connection, water outl WP9101 Pump, water WP9916 Tensioner, belt WP9963 Drive, water pump XS9256 Connection, exhaust outle

1

2

3

4

5

6

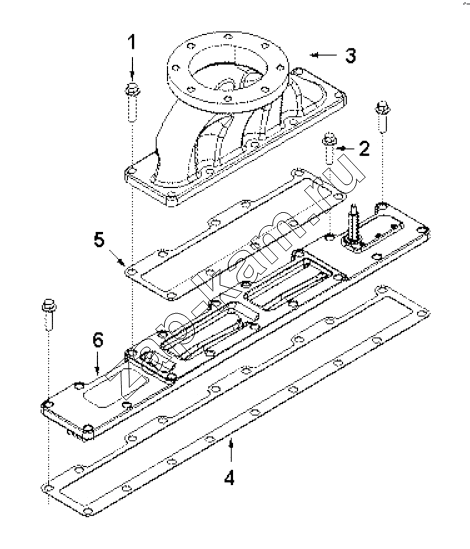

Поз.	Артикул		Название детали	Кол-во
IM 9101	IM 9101		Manifold, air intake	1;
1	C3900678		Болт	10;
2	C3902114		Болт	3;
3	C3943613		Труба впускная	1;
4	C3944646		Gasket, int manifold cove	1;
5	C3992090		Gasket, connection	1;
6	C4940600		Heating, intake air	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
