COOLER LUB OIL TC
/ Cummins NT855-C280 BC III
1
1
1
1
1
2
3
4
4
7
7
8
8
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25

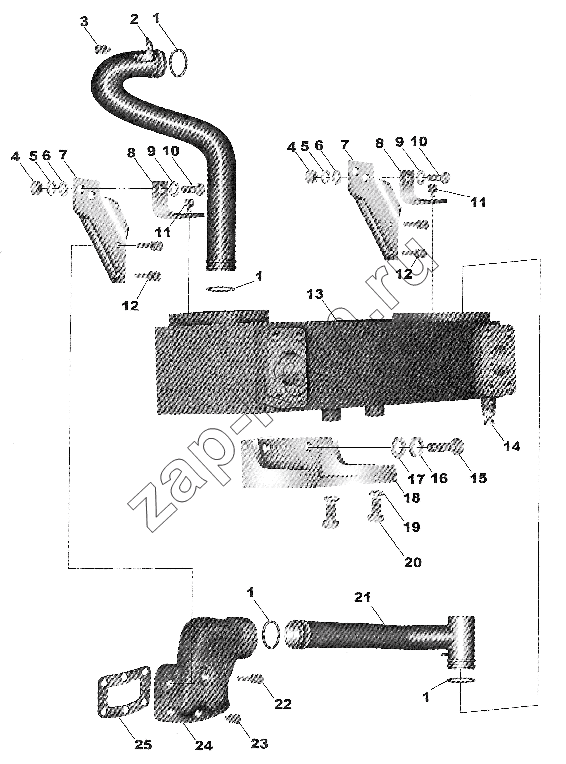

| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| S602 | S602 | WASHER, PLAIN | 2; | |
| S602 | S602 | WASHER, PLAIN | 2; | |
| S604 | S604 | SUPPORT, OIL GAUGE TUBE | 2; | |
| 3021470 | 3021470 | SCREW, HEXAGON HEAD CAP | 4; | |
| S600 | S600 | Замковая шайба | 4; | |
| 4061381 | 4061381 | MTG, TUBE WTR TRANSFER | 1; | |
| 4061538 | 4061538 | COOLER LUB I0L ТС | 1; | |
| S600 | S600 | Замковая шайба | 4; | |
| 4061539 | 4061539 | MTG, BRACE T, C COOLER | 1; | |
| 1 | 43463A | SEAL, O RING | 2; | |
| 1 | 43463A | SEAL, O RING | 2; | |
| 2 | 4061380 | TUBE, WATER TRANSFER | 1; | |
| 3 | 3022589 | SCREW, CAPTIVE WASHER | 1; | |
| 4 | S205 | NUT, REGULAR HEXAGON | 2; | |
| 7 | 4061179 | BRACET, COOLER | 2; | |
| 8 | 4061180 | BRACET | 2; | |
| 10 | S172В | SCREW, HEXAGON HEAD CAP | 2; | |
| 11 | S168С | SCREW, HEXAGON HEAD CAP | 3; | |
| 12 | S105С | SCREW, HEXAGON HEAD CAP | 4; | |
| 13 | 4061161 | COOLER, Т, С, | 1; | |
| 14 | 3165997 | DRAIN COCK | 1; | |
| 15 | S113 | SCREW, HEXAGON HEAD CAP | 2; | |
| 16 | S608 | WASHER, LOCK | 2; | |
| 17 | S670 | WASHER, PLAIN | 2; | |
| 18 | 4061178 | SUPPORT, OIL COOLER | 1; | |
| 19 | 3010596 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 20 | 3010596 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 21 | 4061162 | TUBE, WATER TRANSFER | 1; | |
| 22 | S156В | SCREW, HEXAGON HEAD CAP | 1; | |
| 23 | S168С | SCREW, HEXAGON HEAD CAP | 3; | |
| 24 | 4061540 | CONNECTION WATER OUTLET | 1; | |
| 24 | 3035368 | CONNECTION WATER OUTLE | 1; | |
| 25 | 700891 | GASKET | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
