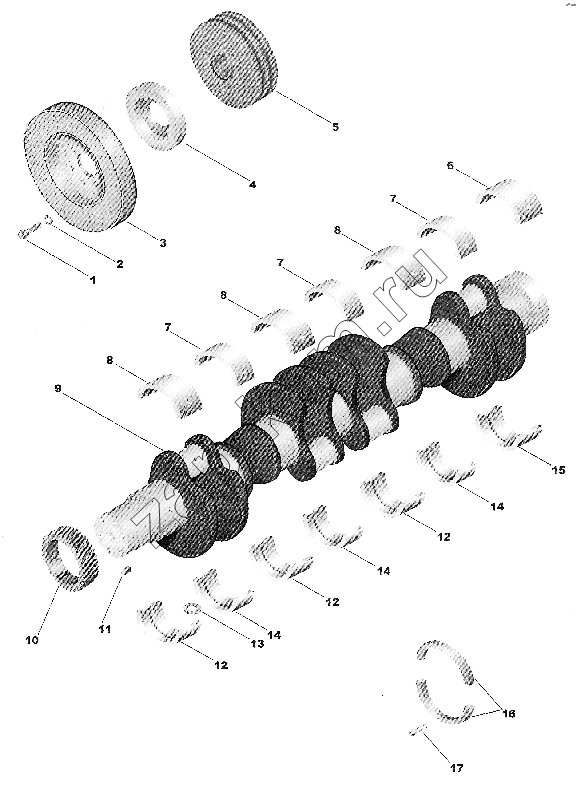

CRANKSHAFT, ENGINE DAMPER VIBRATION
/ Cummins NT855-C280 BC III
3054866
1
2
3
4
5
6
7
7
7
8
8
8
9
10
11
12
12
12
13
14
14
14
15
15
16
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3037046 | 3037046 | SET, MAIN BEARING | 1; | |
| 3054866 | 3054866 | CRANKSHAFT | 1; | |
| 3260635 | 3260635 | MTG, VIB DAMPER | 1; | |
| 1 | 212114 | SCREW, TWELVE POINT CAP | 6; | |
| 2 | 127316 | WASHER, PLAIN | 6; | |
| 3 | 211915 | DAMPER, VIBRATION | 1; | |
| 4 | 3326141 | SPACER, CRANKSHAFT | 1; | |
| 5 | 3326153 | PULLEY, CRANKSHAFT | 1; | |
| 6 | 3019198 | BEARING, MAIN | 1; | |
| 7 | 3019186 | BEARING, MAIN | 3; | |
| 8 | 3019174 | BEARING, MAIN | 3; | |
| 9 | 3608833 | CRANKSHAFT, ENGINE | 1; | |
| 10 | 3014614 | GEAR, CRANKSHAFT | 1; | |
| 11 | 210179 | KEY, RECTANGULAR | 1; | |
| 12 | 3019180 | BEARING, MAIN | 3; | |
| 13 | 3037045 | RING, MAIN BEARING | 7; | |
| 14 | 3019192 | BEARING, MAIN | 3; | |
| 15 | 3019204 | BEARING, MAIN | 1; | |
| 16 | 3067568 | BEARING, THRUST | 4; |
