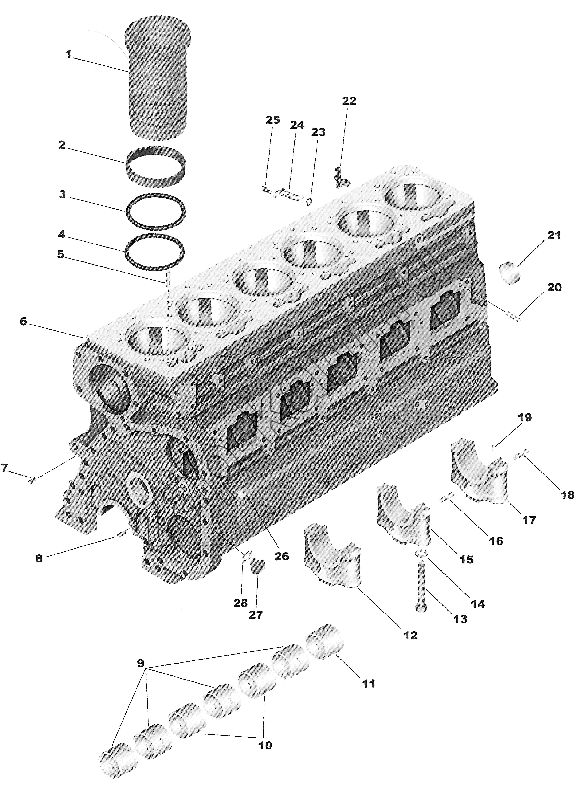

CYLINDER BLOCK
/ Cummins NT855-C280 BC III
1
2
3
4
5
6
9
10
11
12
13
14
15
17
18
19
20
21
23
24
25
28
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3032187 | 3032187 | BLOCK, CYLINDER | 1; | |
| MP5346 | MP5346 | MTG, CYL BLOCK | 1; | |
| 69901 | 69901 | PLUG, PIPE | 7; | |
| 210884 | 210884 | PLUG, PIPE | 1; | |
| 3008466 | 3008466 | PLUG, PIPE | 1; | |
| 3008468 | 3008468 | Заглушка трубки | 3; | |
| 3013786 | 3013786 | PLUG, PIPE | 5; | |
| S966E | S966E | PLUG, PIPE | 1; | |
| 3014404 | 3014404 | NOZZLE, PISTON COOLING | 6; | |
| 3013591 | 3013591 | NOZZLE, PISTON COOLING | 6; | |
| 3801826 | 3801826 | LINER, CYLINDER | 6; | |
| 1 | 3055099 | LINER, CYLINDER | 6; | |
| 2 | 215090 | SEAL, CREVICE | 6; | |
| 3 | 3032874 | SEAL, O RING | 12; | |
| 4 | 3032874 | SEAL, O RING | 12; | |
| 5 | 68445 | PIN, GROOVE | 6; | |
| 6 | 3031156 | BLOCK, CYLINDER | 1; | |
| 9 | 3028075 | BUSHING | 4; | |
| 10 | 3028269 | BUSHING | 2; | |
| 11 | 3011951 | BUSHING | 1; | |
| 12 | 3008047 | CAP, MAIN BEARING | 3; | |
| 13 | 208346 | SCREW, HEXAGON HEAD | 14; | |
| 14 | 3039305 | WASHER, PLAIN | 14; | |
| 15 | 3008048 | CAP, MAIN BEARING | 3; | |
| 17 | 3008049 | CAP, MAIN BEARING | 1; | |
| 18 | 202903 | PIN, POLL | 2; | |
| 19 | 67211 | DOWEL, REAR MAIN | 2; | |
| 20 | 68585 | DOWER, PIN | 6; | |
| 21 | 3011952 | PLUG, EXPENSION | 1; | |
| 23 | 3007442 | SEAL О RING | 6; | |
| 24 | 3013590 | NOZZLE, PISTON COOLING | 6; | |
| 25 | 3033822 | SCREW, CAPTIVE WAS | 6; | |
| 28 | 66292 | WASHER, PLATE | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
