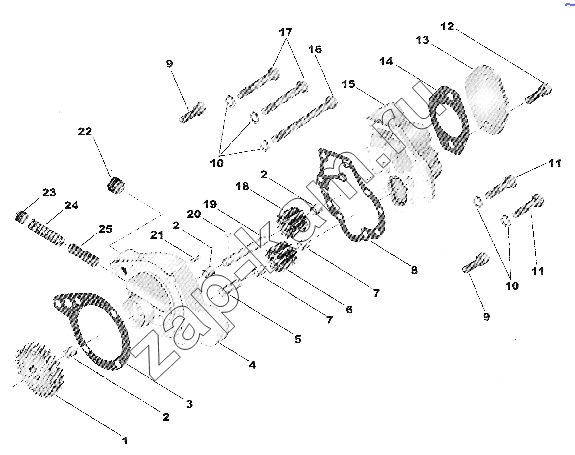

LUB OIL PUMP
/ Cummins NT855-C280 BC III
1
2
2
2
2
3
4
5
6
7
7
8
9
9
10
10
11
11
13
14
14
16
17
17
18
19
20
21
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3821579 | 3821579 | PUMP, LUBO!L | 1; | |
| 3821577 | 3821577 | BODY5LUBRICATING OIL PUMP | 1; | |
| 3014964 | 3014964 | COVER, LUB PUMP | 1; | |
| 3821578 | 3821578 | PUMP, LUBOIL | 1; | |
| 3012726 | 3012726 | PLUG RETAINER | 1; | |
| 3014754 | 3014754 | WASHER, PLAIN | 1; | |
| 3010146 | 3010146 | SPRING, COMPRESSION | 1; | |
| 3032267 | 3032267 | MTG, LUB OIL PUMP | 1; | |
| 179063 | 179063 | PLUG RETAINER | 1; | |
| 146161 | 146161 | WASHER, PLAIN | 1; | |
| 145504 | 145504 | SEAL, 0 RING | 2; | |
| 3014965 | 3014965 | GEARSLUB PUMPING | 2; | |
| 1 | 204832 | GEAR LUBRICATING OIL PUM | 1; | |
| 2 | 69521 | BUSHING | 2; | |
| 2 | 69521 | BUSHING | 1; | |
| 3 | 3067613 | GASKET, LUB OIL PUMP | 1; | |
| 4 | 3087812 | BODY, LUBRICATING OIL PUMP | 1; | |
| 5 | 3012531 | SHAFT, LUB PUMP DRIVE | 1; | |
| 6 | 3014784 | GEAR | 1; | |
| 7 | 69365 | BUSHING | 1; | |
| 8 | 3014778 | GASET , COVER, LUB PUMP | 1; | |
| 9 | 3010595 | SCREW, CAPTIVE WASHER | 2; | |
| 10 | S610 | WASHER, LOCK | 5; | |
| 11 | S108A | SCREW, HEXAGON HEAD CAP | 3; | |
| 13 | 204048 | COVER | 1; | |
| 14 | 3004242 | GASKET, HYDRAULIC PUMP | 1; | |
| 14 | 3014777 | COVER, LUB PUMP | 1; | |
| 16 | S142A | SCREW, HEXAGON HEAD | 2; | |
| 17 | 3022590 | SCREW, CAPTIVE WASHER CAP | 7; | |
| 17 | 13022589 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 18 | 3014783 | GEAR, LUB PUMPING | 1; | |
| 19 | 3012532 | SHAFT, LUB OIL PUMP | 1; | |
| 20 | 193695 | KET WOODRUFF | 1; | |
| 21 | 69519 | POWEL, PIN | 1; | |
| 23 | 3014755 | DISC VALVE | 1; | |
| 24 | 3014756 | SPRING COMPRESSION | 1; | |
| 25 | 3884126 | PIN COMPRESSION | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
