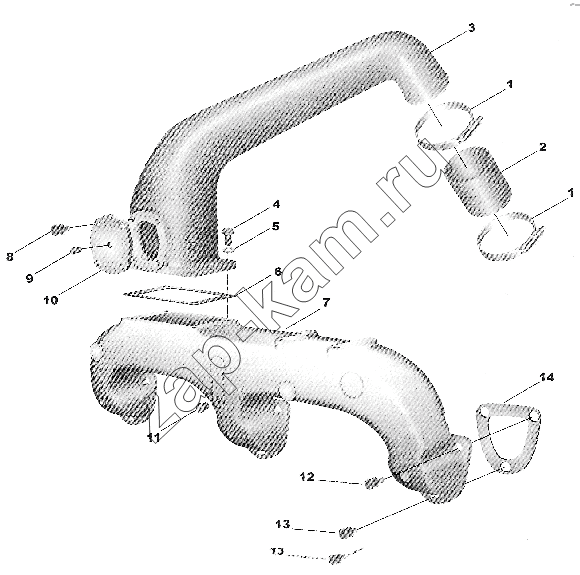

MANIFOLD EXHAUST
/ Cummins NT855-C280 BC III
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3261151 | 3261151 | MOUNTING, AIR MANIFOLD | 1; | |
| 3012972 | 3012972 | GASKET, INTAKE MANIFOLD | 1; | |
| 3260623 | 3260623 | CONNECTION, AIR CROSSOVER | 1; | |
| 1 | 208326 | CLAMP, T BOLT | 2; | |
| 2 | 202994 | HOSE, PLAIN | 1; | |
| 3 | 3418722 | CONNECTION, AIR CROSSOVER | 1; | |
| 4 | 3335041 | SCREW, HEXAGON HEAD CAP | 4; | |
| 5 | S605 | TUBE, BREATHER | 4; | |
| 6 | 417370 | GASKET, COVER PLATE | 1; | |
| 7 | 3325483 | MANIFOLD, AIR INTAKE | 1; | |
| 8 | 3011715 | SCREW, CAPTIVE WASHER CAP | 6; | |
| 9 | S911В | PLUG, PIPE | 3; | |
| 10 | 3326188 | PLATE, COVER | 1; | |
| 11 | 70295 | PLUG, PIPE | 2; | |
| 12 | 3011715 | SCREW, CAPTIVE WASHER CAP | 4; | |
| 13 | 3011716 | SCREW, CAPTIVE WASHER | 3; | |
| 14 | 3008591 | GASKET, INTAKE MANIFOLD | 3; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
