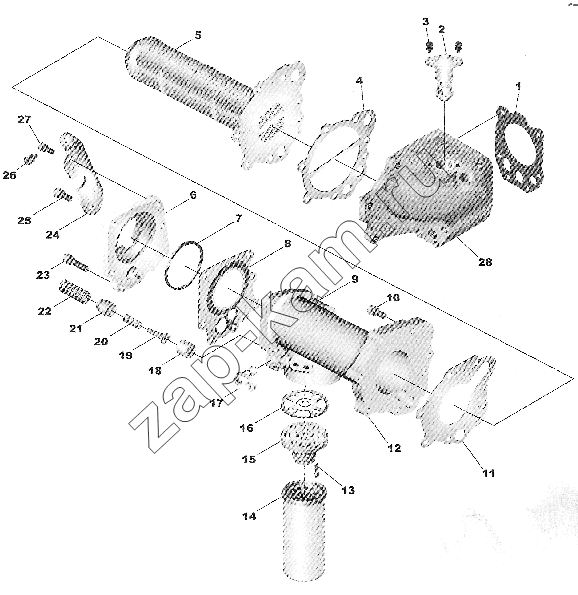

OIL COOLER
/ Cummins NT855-C280 BC III
1
2
3
3
4
5
6
7
8
9
10
10
10
11
13
14
15
16
17
18
19
20
21
22
25
26
27
28
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3031956 | 3031956 | COOLER5LUBE OIL MTG | 1; | |
| 3030807 | 3030807 | UNIT, SENDING | 1; | |
| 3017915 | 3017915 | WASHER, PLAIN | 4; | |
| 3013786 | 3013786 | PLUG, PIPE | 1; | |
| 3008466 | 3008466 | PLUG, PIPE | 1; | |
| 3031005 | 3031005 | SCREW, PAN HEAD CAP | 1; | |
| 101996 | 101996 | SCREW, PAN HEAD CAP | 1; | |
| 3030808 | 3030808 | SEAL, 0 RING | 1; | |
| 3053393 | 3053393 | COOLER, LUB OIL | 1; | |
| 3165997 | 3165997 | DRAIN COCK | 1; | |
| 3044901 | 3044901 | SCREW5CAPTIVE WASHER CAP | 2; | |
| 3044896 | 3044896 | COVER, PROTECTIVE | 1; | |
| 3045979 | 3045979 | SEAL, O RING | 1; | |
| 3018697 | 3018697 | BRACE, OIL COOLER | 1; | |
| 1 | 3008017 | GASKET, OIL COOLER SUPPORT | 1; | |
| 2 | 3023512 | VALVE, BYPASS | 1; | |
| 3 | S117 | SCREW, HEXAGON HEAD CAP | 2; | |
| 3 | S604 | SUPPORT, OIL GAUGE TUBE | 2; | |
| 4 | 3047464 | GASKET, OIL COOLER CORE | 1; | |
| 5 | 3412285 | CORE, COOLER | 1; | |
| 6 | 3069079 | COVER, TOR CNV OIL COOLE | 1; | |
| 7 | 3018695 | SEAL, RECTANGULAR RING | 1; | |
| 8 | 3069014 | GASKET, LUB OIL CLR COVE | 1; | |
| 9 | 3052210 | HOUSING, OIL COOLER | 1; | |
| 10 | 3010597 | SCREW, CAPTiVE WASHER CAP | 3; | |
| 10 | 3010596 | SCREW, CAPTIVE WASHER CAP | 3; | |
| 10 | 3044413 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 11 | 3047465 | GASKET, LUB OIL CLR HSG | 1; | |
| 13 | 212535 | SCREW TWELVE POINT CAP | 4; | |
| 14 | 3401544 | Фильтр масляный | 1; | |
| 15 | 3918334 | HEAD, LUB OIL FILTER | 1; | |
| 16 | 3070478 | GASKET, FILTER HEAD | 1; | |
| 17 | 3035028 | ASSEMBLY, SENSING UNIT | 1; | |
| 18 | 3030804 | PISTON, BYPASS VALVE | 1; | |
| 19 | 3030806 | PLUNGER, BYPASS VALVE | 1; | |
| 20 | 3039296 | SPRING, COMPRESSION | 1; | |
| 21 | 3030805 | PISTON, PRESSURE SENSING | 1; | |
| 22 | 3030803 | SPRING, COMPRESSION | 1; | |
| 25 | 3035624 | SCREW, CAPTIVE WASHER CAP | 3; | |
| 26 | 3040838 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 27 | 3040837 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 28 | 3027460 | SUPPORT, OIL COOLER | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
