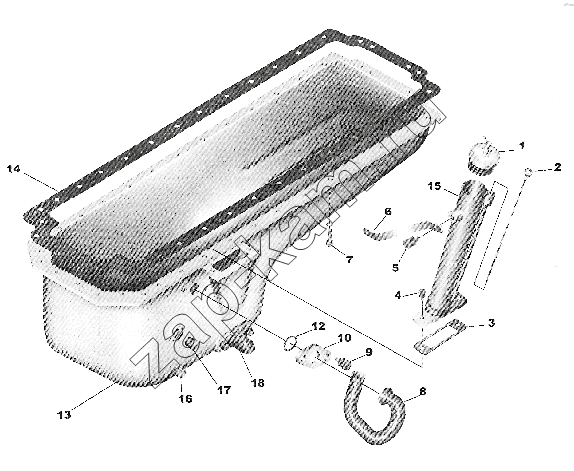

OIL PAN
/ Cummins NT855-C280 BC III
3165319
1
1
2
3
4
4
5
5
5
6
7
7
7
7
7
7
7
7
7
7
8
9
10
12
12
13
14
15
16
16
16
16
16
17
18
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3261137 | 3261137 | РАМ OIL MTG | 1; | |
| 3095723 | 3095723 | NUT, HEXAGON FLANGE | 2; | |
| 3165321 | 3165321 | TUBE, LUB OIL TRANSFER | 1; | |
| 3165957 | 3165957 | WASHER, PLAIN | 2; | |
| 3165976 | 3165976 | WASHER, LOCK | 2; | |
| 3335003 | 3335003 | SCREW, HEXAGON HEAD CAP | 2; | |
| 3031962 | 3031962 | TUBE, OIL SUCTION | 1; | |
| 157551 | 157551 | GASKET, OIL SUC CONNECTION, | 1; | |
| 3010595 | 3010595 | SCREW, CAPTIVE WASHER | 2; | |
| 3034830 | 3034830 | RETAINER, SEAL | 1; | |
| 3165319 | 3165319 | OIL PAN | 1; | |
| 3034986 | 3034986 | SEAL, RECTANGULAR RING | 1; | |
| 3655892 | 3655892 | BRACKET, OIL TUBE | 1; | |
| '3260633 | '3260633 | MTG, DIPSTICK & FILL TUBE | 1; | |
| 3655895 | 3655895 | DIPSTICK | 1; | |
| 3071179 | 3071179 | CLIP | 2; | |
| 1 | 3418519 | CAP, FILLER | 1; | |
| 1 | S604 | SUPPORT, OIL GAUGE TUBE | 1; | |
| 2 | 3326078 | DIPSTICK | 1; | |
| 3 | 421541 | GASKET, OIL GAUGE SUPPORT | 1; | |
| 4 | 3335005 | SCREW, HEXAGON HEAD CAP | 1; | |
| 4 | S608 | WASHER, LOCK | 1; | |
| 5 | 106069 | SCREW, HEXAGON HEAD CAP | 1; | |
| 5 | S109 | SCREW, HEXAGON HEAD CAP | 1; | |
| 5 | S602 | WASHER, PLAIN | 1; | |
| 6 | 3251004 | BRACE, TUBE | 1; | |
| 7 | 104856 | SPACER | 4; | |
| 7 | 103009 | SCREW, HEXAGON HEAD CAF | 4; | |
| 7 | 3008069 | SCREW, CAPTiVE WAS | 27; | |
| 7 | 3165956 | WASHER, PLAIN | 1; | |
| 7 | 3335001 | SCREW, HEXAGON HEAD | 1; | |
| 7 | S626 | WASHER, LOCK | 27; | |
| 7 | S610 | WASHER, LOCK | 4; | |
| 7 | S142 | SCREW, HEXAGON HEAD | 4; | |
| 7 | S605 | TUBE, BREATHER | 4; | |
| 7 | 3165975 | WASHER, LOCK | 1; | |
| 8 | 3029848 | TUBE, LUB OIL TRANSFER | 1; | |
| 9 | 3035624 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 10 | 3029850 | PLATE, CLAMPING | 1; | |
| 12 | 3029847 | SEAL, 0 RING | 1; | |
| 12 | 3655315 | SEAL, O RING | 1; | |
| 13 | 3165320 | OIL PAN | 1; | |
| 14 | 3032861 | GASKET, OSL PAN | 1; | |
| 15 | 3250939 | BRACKET, OIL TUBE | 1; | |
| 16 | 3046943 | SEAL, O RING | 1; | |
| 16 | 3046869 | PLUG/THREADED | 1; | |
| 16 | 3046942 | PLUG, PIPE | 2; | |
| 16 | 3008470 | PLUG, PIPE | 2; | |
| 16 | 3655222 | CORE | 1; | |
| 17 | 3008468 | Заглушка трубки | 1; | |
| 18 | 3325064 | VALVE, SHUTOFF | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
