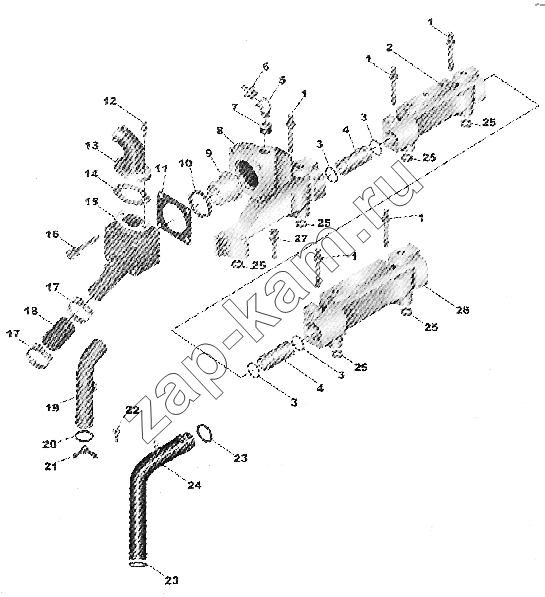

WATER MANIFOLD
/ Cummins NT855-C280 BC III
1
1
1
1
1
1
1
2
3
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
23
24
25
25
25
25
25
25
25
25
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3038047 | 3038047 | MANIFOLD, WATER MTG | 1; | |
| S626 | S626 | WASHER, LOCK | 1; | |
| AR10032 | AR10032 | TUBE, WATER BYPASS | 1; | |
| 3008468 | 3008468 | Заглушка трубки | 2; | |
| MP5510 | MP5510 | MTG, WATER MANIFOLD | 1; | |
| 3008469 | 3008469 | Заглушка трубки | 1; | |
| 3013786 | 3013786 | PLUG, PIPE | 2; | |
| 3025458 | 3025458 | PLUG, PIPE | 1; | |
| 'MP5144 | 'MP5144 | MANIFOLD, WATER MTG | 1; | |
| MP5146 | MP5146 | MANIFOLD, WATER MTG REAR | 1; | |
| 3008468 | 3008468 | Заглушка трубки | 1; | |
| AR9480 | AR9480 | TUBE, WATER TRANSFER | 1; | |
| 3013786 | 3013786 | PLUG, PIPE | 1; | |
| 3008468 | 3008468 | Заглушка трубки | 1; | |
| MP4533 | MP4533 | CONNECTION, WATER | 1; | |
| AR10124 | AR10124 | HOUSING, THERMOST | 1; | |
| 3010870 | 3010870 | MTG, THERMOSTAT HOUSING | 1; | |
| 1 | 3010596 | SCREW, CAPTIVE WASHER CAP | 4; | |
| 1 | 3010596 | SCREW, CAPTIVE WASHER CAP | 4; | |
| 1 | 3010596 | SCREW, CAPTIVE WASHER CAP | 4; | |
| 2 | 3325978 | MANIFOLD, WATER | 1; | |
| 3 | 70624 | SEAL, O RING | 2; | |
| 3 | 70624 | SEAL, O RING | 2; | |
| 4 | 130394 | CONNECYION, WATER BYPASS | 1; | |
| 4 | 130394 | CONNECYION, WATER BYPASS | 1; | |
| 5 | S973 | ELBOW, PLAIN STREET PIPE | 1; | |
| 6 | 179902 | CONNECTION | 1; | |
| 7 | S921D | BUSHING, REDUCING PIPE | 1; | |
| 8 | 3165314 | MANIFOLD, WATER | 1; | |
| 9 | 3076489 | THERMOSTAT | 1; | |
| 10 | 186780 | SEAL, THERMOSTAT | 1; | |
| 11 | 208128 | GASKET | 1; | |
| 12 | 3010595 | SCREW, CAPTIVE WASHER | 2; | |
| 13 | 3018764 | CONNECTION, RADIATOR | 1; | |
| 14 | 3019158 | GASKET | 1; | |
| 15 | 3013612 | HOUSING, THERMOST ТА | 1; | |
| 16 | 3010597 | SCREW, CAPTiVE WASHER CAP | 4; | |
| 17 | 43828В | CLAMP, HOSE | 2; | |
| 18 | 102522 | HOSE, PLAIN | 1; | |
| 19 | 213485 | TUBE, WATER BYPASS | 1; | |
| 20 | 43463A | SEAL, O RING | 1; | |
| 21 | 214617 | CLAMP, TUBE | 1; | |
| 22 | 3022589 | SCREW, CAPTIVE WASHER | 1; | |
| 22 | 3022589 | SCREW, CAPTIVE WASHER | 1; | |
| 23 | 212161 | SEAL, O RING | 2; | |
| 24 | 3024666 | TUBE, WATER TRANSFER | 1; | |
| 25 | 3024709 | SEAL, RECTANGULAR RING | 2; | |
| 25 | 3024709 | SEAL, RECTANGULAR RING | 2; | |
| 25 | 3024709 | SEAL, RECTANGULAR RING | 2; | |
| 26 | 3251003 | MANIFOLD, WATR | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
