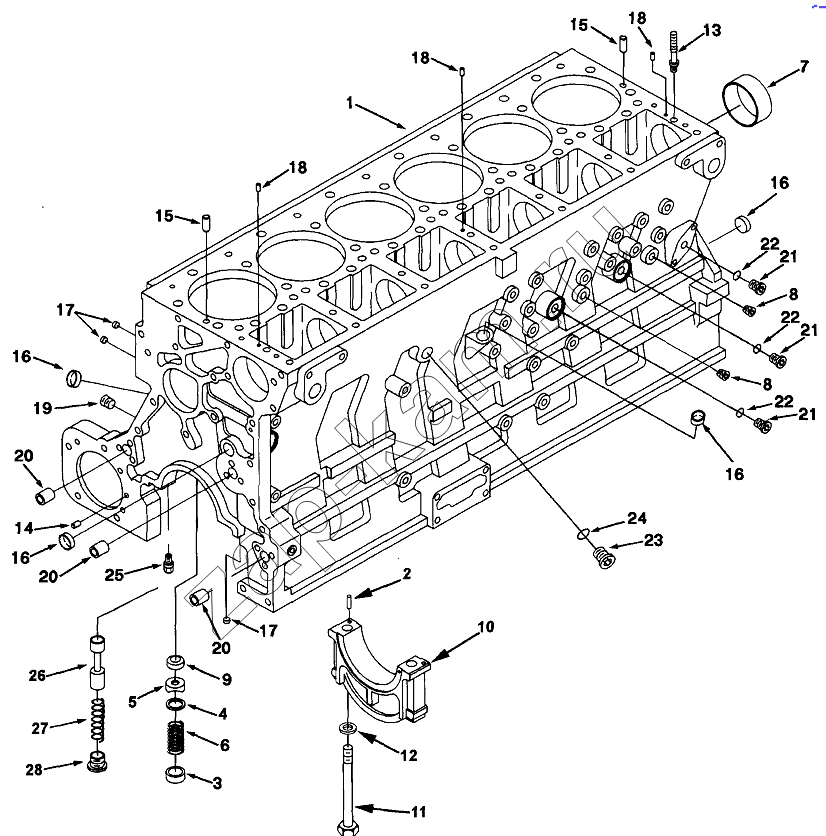

Cylinder Block BB2712
/ Cummins QSM-11 Tier 3
1
2
3
4
5
6
7
8
8
9
10
10
10
10
10
11
12
13
14
15
15
16
16
16
16
17
17
18
18
18
19
20
20
20
21
21
21
22
22
22
23
24
25
26
27
28
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4060393 | 4060393 | Block, Cylinder | 1; | |
| 3046202 | 3046202 | Plug, Threaded | 1; | |
| 3037536 | 3037536 | Plug, Threaded | 4; | |
| 3053349 | 3053349 | Dowel, Pin | 1; | |
| 3803504 | 3803504 | Kit, Screw Hex Head Cap | 14; | |
| 1 | 4060392 | Block, Cylinder | 1; | |
| 2 | 148555 | Dowel, Pin | 2; | |
| 3 | 179063 | PLUG RETAINER | 1; | |
| 4 | 3014754 | WASHER, PLAIN | 1; | |
| 5 | 3014755 | DISC VALVE | 1; | |
| 6 | 3014756 | SPRING COMPRESSION | 1; | |
| 7 | 3820566 | Bushing | 7; | |
| 8 | 3008466 | PLUG, PIPE | 2; | |
| 9 | 3026758 | Seat, Prs Regulator Valve | 1; | |
| 10 | 4060387 | Cap, Main Bearing | 1; | |
| 10 | 3026961 | Cap, Main Bearing | 1; | |
| 10 | 4060391 | Cap, Main Bearing | 5; | |
| 11 | 3328742 | Screw, Hexagon Head Cap | 14; | |
| 12 | 3019631 | Washer, Plain | 14; | |
| 13 | 3895832 | Stud | 7; | |
| 14 | 70550 | DOWEL, PIN | 1; | |
| 15 | 142207 | Dowel, Pin | 2; | |
| 16 | 3007635 | Plug, Expansion | 4; | |
| 17 | 3007632 | Расширительная пробка | 9; | |
| 18 | 3008446 | Dowel, Pin | 3; | |
| 19 | 3008468 | Заглушка трубки | 1; | |
| 20 | 3026231 | Dowel, Ring | 3; | |
| 21 | 3040813 | Plug, Threaded | 1; | |
| 22 | 3037537 | Seal, O Ring | 1; | |
| 23 | 3040810 | Plug, Threaded | 1; | |
| 24 | 3046201 | Уплотнительное кольцо | 1; | |
| 25 | 3069728 | Sensor, Viscosity | 1; | |
| 26 | 3068979 | Plunger, Prs Regulator | 1; | |
| 27 | 3010146 | SPRING, COMPRESSION | 1; | |
| 28 | 3821725 | Plug, Retainer | 1; |
