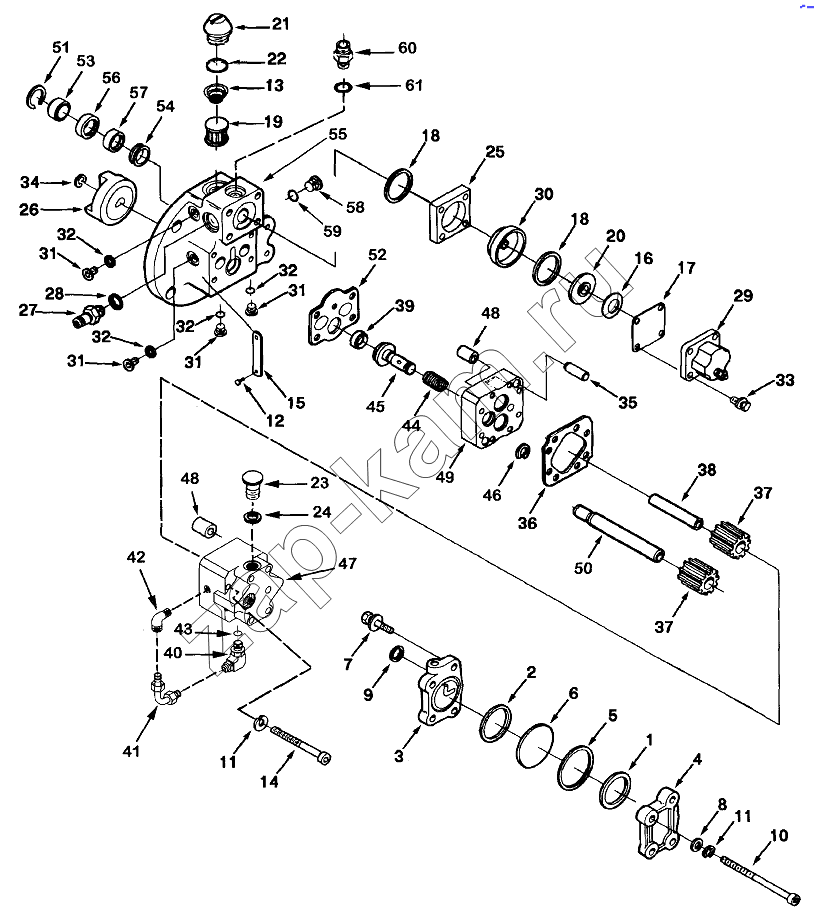

Fuel Pump FP2953
/ Cummins QSM-11 Tier 3

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
31
32
32
32
32
33
34
35
36
37
37
37
37
38
39
40
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
56
57
58
59
60
61
Поз. Артикул Название детали Кол-во
ВМ76340 ВМ76340 Damper, Fuel Pump 1;
3074317 3074317 Spacer, Seal 1;
3074316 3074316 Spacer, Seal 1;
3040813 3040813 Plug, Threaded 1;
3037536 3037536 Plug, Threaded 1;
3033742 3033742 Plug, Threaded 1;
128807 128807 Ring, Retaining 1;
3803493 3803493 Support, Fuel Pump 1;
3036865 3036865 Union, Male 1;
3037536 3037536 Plug, Threaded 1;
3042619 3042619 Nipple, Coupling 1;
3408421 3408421 Solenoid 1;
3803477 3803477 Kit, Oil Seal 1;
3090993 3090993 Support, Fuel Pump 1;
3095635 3095635 Gear & Shaft 1;
3056416 3056416 Plug, Threaded 4;
4010319 4010319 Pump, Gear Fuel 1;
3019617 3019617 Gear & Shaft 1;
3090996 3090996 Support, Fuel Pump 1;
3096077 3096077 Gasket, Fuel Pump 1;
4010324 4010324 Pump, Gear Fuel 1;
3037537 3037537 Seal, O Ring 1;
3090942 3090942 Pump, Fuel 1;
129888 129888 Seal, Rectangular Ring 2;
4024808 4024808 Kit, Fuel Solenoid 1;
3084713 3084713 Seal, Oil 1;
3071643 3071643 Seal, Oil 1;
3803477 3803477 Kit, Oil Seal 1;
1 100099 Seal, Rectangular Ring 1;
2 139988 Seal, Rectangular Ring 1;
3 153336 Body, Fuel Pump Damper 1;
4 153338 Cover, Fuel Pump Damper 1;
5 160514 Washer, Plain 1;
6 202897 Diaphragm, Ful Pump Damper 1;
7 3017051 Screw, Captive Washer Cap 2;
8 70704 Washer, Plain 2;
9 151900 Seal, Rectangular Ring 1;
10 153346 Screw, Socket Head Cap 2;
11 181466 Washer, Lock 4;
11 181466 Washer, Lock 2;
12 S2286 Screw, Drive 2;
13 70700 Spring, Compression 1;
14 100129 Screw, Socket Head Cap 4;
15 105375 Nameplate 1;
16 129768 Spring, Valve 1;
17 129839 Shield, Shutoff Valve 1;
18 129888 Seal, Rectangular Ring 2;
19 146483 Screen, Filter 1;
20 196057 Disc, Valve 1;
21 3014575 Cap, Fuel Pump Filter 1;
22 3021123 Seal, O Ring 1;
23 3079584 Plug, Threaded 1;
24 3034412 Seal, О Ring 1;
25 3034451 Housing, Actuator 1;
26 3095355 Hub, Jaw Coupling 1;
27 3042620 Nipple, Coupling 1;
28 3037537 Seal, O Ring 1;
29 3408421 Solenoid 1;
30 3056009 Disc, Actuator 1;
31 3056003 Plug, Threaded 1;
32 3056415 Seal, О Ring 1;
33 3065944 Screw, Captive Washer Cap 4;
34 3068768 Ring, Retaining 1;
35 64816А Dowel, Pin 2;
36 110855 Gasket, Fuel Pump 1;
37 119364 Gear, Fuel Pumping 1;
37 119364 Gear, Fuel Pumping 1;
38 175865 Shaft, Fuel Pump 1;
39 3033719 Dowel, Ring 1;
40 3033740 Valve, Check 1;
41 4010514 Tube, Fuel Drain 1;
42 68139 Колено входящей в другую деталь соединительной части 1;
43 3034412 Seal, О Ring 1;
44 4010297 Spring, Compression 1;
45 4010296 Plunger, Prs Regulator 1;
46 3085615 Ring, Retaining 1;
47 3033714 Housing, Fuel Pump Gear 1;
48 3033724 Bushing 4;
49 4010318 Cover, Fuel Pump Gear 1;
50 3095356 Shaft, Fuel Pump Drive 1;
51 128807 Ring, Retaining 1;
52 3096077 Gasket, Fuel Pump 1;
53 3074317 Spacer, Seal 1;
54 3074316 Spacer, Seal 1;
55 3090996 Support, Fuel Pump 1;
56 3084713 Seal, Oil 1;
57 3071643 Seal, Oil 1;
58 3040813 Plug, Threaded 1;
59 3037537 Seal, O Ring 1;
60 3100526 Union, Male 1;
61 3037236 Seal, O'Ring 1;
