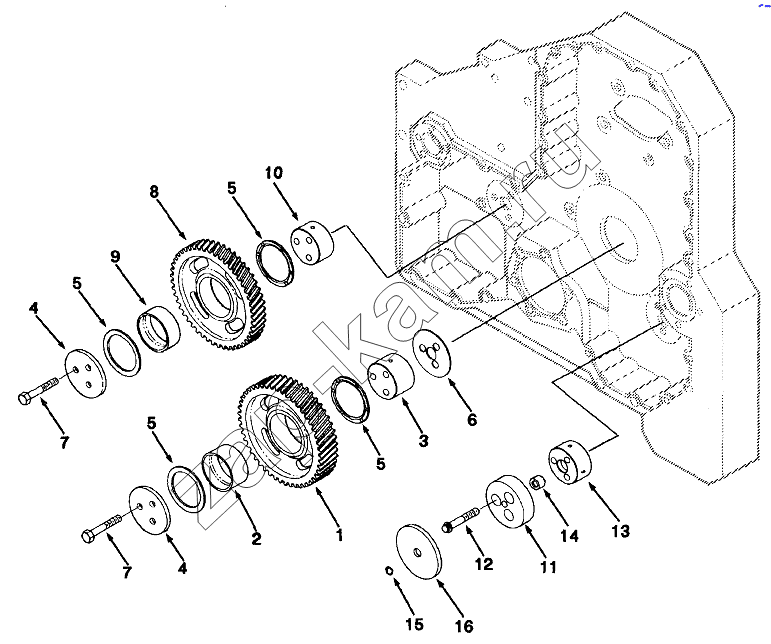

Idler Gears BB2712
/ Cummins QSM-11 Tier 3
1
2
3
4
4
4
4
5
5
5
5
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 3084533 | 3084533 | Gear, Idler | 1; | - | |
| 3084532 | 3084532 | Gear, Idler | 1; | - | |
| 1 | 3084447 | Gear, Idler | 1; | - | |
| 2 | 3026188 | Bushing | 1; | - | |
| 3 | 3026166 | Shaft, Idler | 1; | - | |
| 4 | 3026233 | Retainer, Gear | 1; | - | |
| 4 | 3026233 | Retainer, Gear | 1; | - | |
| 5 | 3084899 | Bearing, Thrust | 2; | - | |
| 5 | 3084899 | Bearing, Thrust | 2; | - | |
| 6 | 3088161 | Plate, Thrust Bearing Wear | 1; | - | |
| 7 | 3088162 | Screw, Hexagon Head Cap | 3; | - | |
| 7 | 3088162 | Screw, Hexagon Head Cap | 3; | - | |
| 8 | 3084448 | Gear, Idler | 1; | - | |
| 9 | 3026189 | Bushing | 1; | - | |
| 10 | 3026167 | Shaft, Idler | 1; | - | |
| 11 | 3882528 | Retainer, Gear | 1; | - | |
| 12 | 3882922 | Screw, Twelve Point Cap | 3; | - | |
| 13 | 3882902 | Spacer, Hydraulic Pump | 1; | - | |
| 14 | 3026231 | Dowel, Ring | 1; | - | |
| 15 | 3883510 | Seal, Rectangular Ring | 1; | - | |
| 16 | 3882513 | Spacer, Mounting | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
