Oil Filler Arrangement OB2409
/ Cummins QSM-11 Tier 3

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано Accessory Drive Pulley AD2031 Cylinder Block BB2712 Cylinder Liner BB2712 Crankshaft BB2712 Main Bearings BB2712 Gear Housing BB2712 Idler Gears BB2712 Cam Follower Lever BB2712 Cylinder Block Plumbing BB2737 Crankcase Breather Plumbing BR2708 Air Cleaner Plumbing CA2041 Coolant Heater Starting Aid CH2021 Air Compressor Inlet Connection CI2705 Air Compressor Plumbing CP2063 Vibration Damper DA2070 Front Gear Train Accessory Drive Fuel Pump Drive DP2701 Engine Brake Control EB2047 Thermostat EC2701 Alternator EE2050 Alternator Mounting EH2165 Alternator Drive Pulley EH2712 Front Engine Support EM2078 Fan Drive FA2288 Fan Drive Belt FA2736 Fuel Filter FF2238 Fuel Pump Fitting FF2758 Flywheel Housing FH2221 Fuel Pump FP2953 Fuel Pump Coupling FP2957 Fuel Plumbing FT20072 Flywheel FW2254 Front Gear Cover GG2706 Air Intake Connection IC2012 Air Intake Connection IC2030 Air Intake Manifold IM2001 Air Intake Manifold Mounting IM2702 Air Transfer Connection IT2017 Lifting Bracket LA2053 Oil Filter Cooler Head LC2737 Full Flow Oil Filter LF2066 Oil Level Gauge LG2085 Lube Oil Pump LP2711 Oil Filler Arrangement OB2409 Hand Hole Cover OB2701 Oil Pan OP2048 Electronic Control Cooler PH2810 Piston Cooling Nozzle PP8543 Connecting Rod PP8543 Engine Piston Kit PP8543 Camshaft PP8543 Cylinder Head PP8543 Injectors PP8543 Turbocharger PP20035 Turbocharger PP20038 Rear Engine Support RE2024 Rocker Lever Radiator Plumbing RP2708 Starting Motor Mounting SM2704 Fan Pilot Spacer SP2006 Starting Motor ST2026 Turbocharger Arrangement TB2323 Exhaust Manifold TB2723 Thermostat Housing TH2086 Thermostat Housing Plumbing TH2762 Torque Converter Cooler TK2008 Turbocharger Plumbing TP2832 Turbocharger Plumbing TP2833 Corrosion Resistor WF2060 Oil Cooler Water Plumbing WH2704 Water Pump WP2705 External Control Module Wiring Harness WR2717 Exhaust Clamp XS2017 Lower Engine Gasket Set Upper Engine Gasket Set Repair Kits & Sets

1

2

3

4

5

5

6

7

7

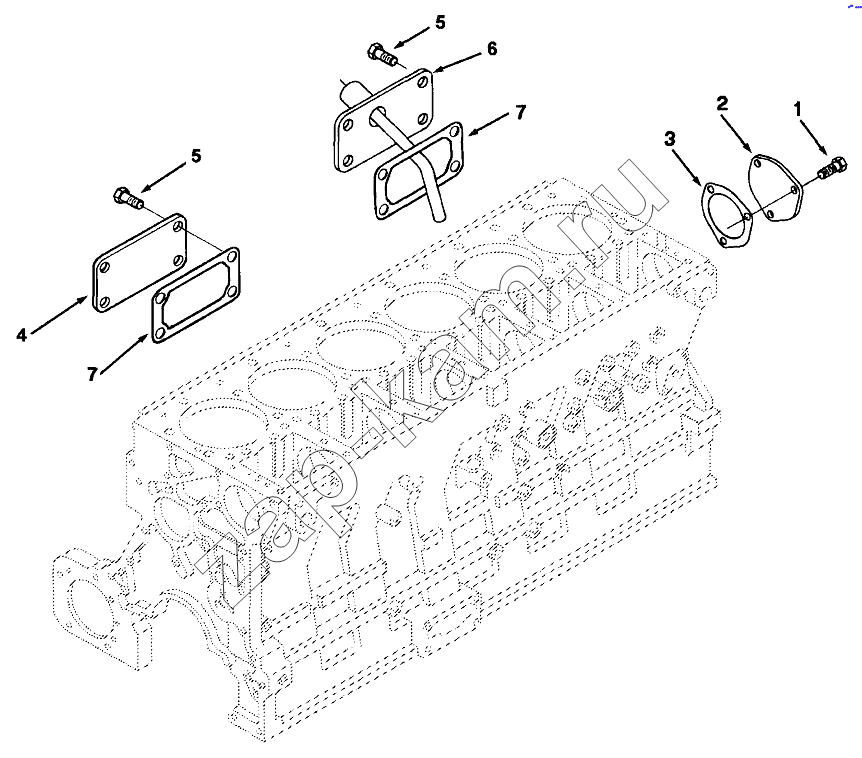

Поз.	Артикул		Название детали	Кол-во
3892253	3892253		Tag, Instruction	1;
1	3009887		Screw, Hexagon Head Cap	3;
2	3025295		Cover, Camshaft	1;
3	3025296		Gasket, Cover Plate	1;
4	3028684		Cover, Hand Hole	1;
5	3036230		Screw, Hexagon Head Cap	8;
6	3820470		Cover, Hand Hole	1;
7	3883472		Gasket, Hand Hole	2;
