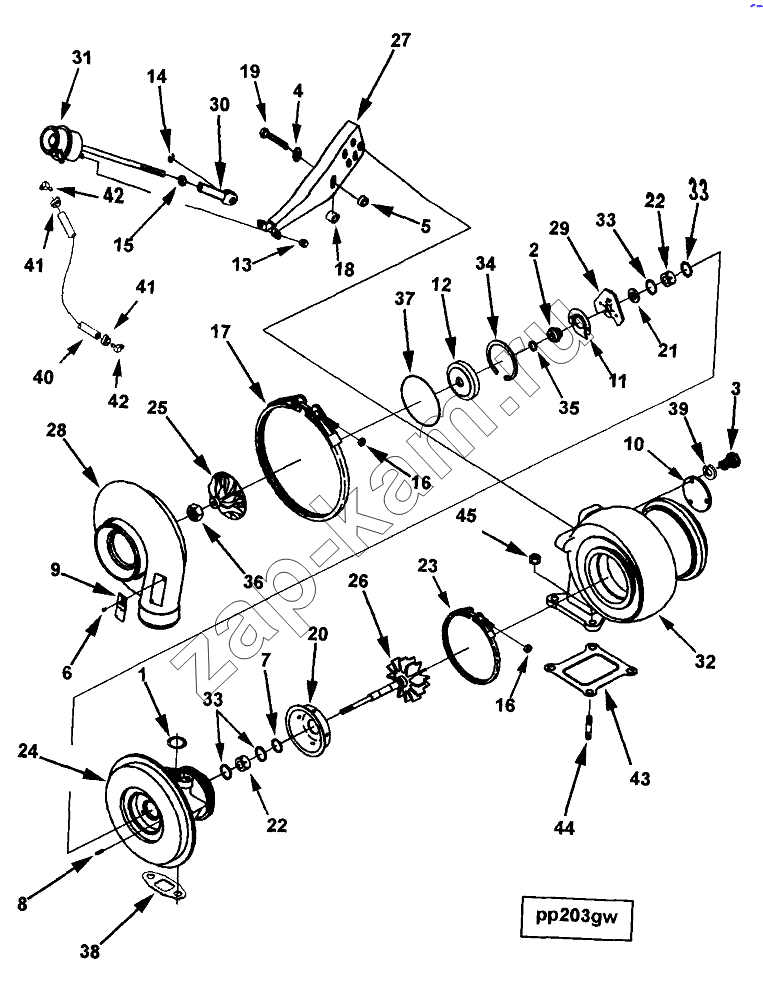

Turbocharger PP20035
/ Cummins QSM-11 Tier 3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
36
37
38
39
40
41
41
42
42
43
44
45
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 4037625 | 4037625 | Turbocharger | 1; | - | |
| 4089858 | 4089858 | Kit, Turbocharger | 1; | - | |
| 1 | 3037537 | Seal, O Ring | 1; | - | |
| 2 | 3502231 | Slinger, Oil | 1; | - | |
| 3 | 3759526 | Screw, Hexagon Head Set | 3; | - | |
| 4 | 3504967 | Плоская шайба | 3; | - | |
| 5 | 3591206 | Spacer, Mounting | 3; | - | |
| 6 | 3519163 | Screw, Drive | 2; | - | |
| 7 | 3521441 | Seal, Split Ring | 1; | - | |
| 8 | 3522597 | Цилиндрический штифт | 2; | - | |
| 9 | 3527619 | Data plate | 1; | - | |
| 10 | 3527651 | Plate, Cover | 1; | - | |
| 11 | 3528094 | Baffle, Oil | 1; | - | |
| 12 | 3528096 | Plate, Oil Seal | 1; | - | |
| 13 | 3528204 | Nut, Lock | 2; | - | |
| 14 | 3528221 | Пружинное кольцо | 1; | - | |
| 15 | 3528414 | Стандартная шестигранная контргайка | 1; | - | |
| 16 | 3529372 | Nut, Regular Hexagon | 2; | - | |
| 17 | 3529852 | Clamp, V Band | 1; | - | |
| 18 | 3532195 | Крепление распорки | 3; | - | |
| 19 | 3534292 | Screw, Hexagon Head Set | 3; | - | |
| 20 | 3533038 | Shield, Turbocharger Heat | 1; | - | |
| 21 | 3534109 | Collar, Thrust | 1; | - | |
| 22 | 3534833 | Bearing, Turbocharger | 2; | - | |
| 23 | 3535399 | Clamp, V Band | 1; | - | |
| 24 | 3535575 | Housing, Tur Bearing | 1; | - | |
| 25 | 4035887 | Impeller, Tur Compressor | 1; | - | |
| 26 | 3535983 | Shaft & Wheel | 1; | - | |
| 27 | 3591204 | Bracket, Actuator | 1; | - | |
| 28 | 4036914 | Housing, Compressor | 1; | - | |
| 29 | 3591655 | Bearing, Tur Thrust | 1; | - | |
| 30 | 3597518 | End, Adjusting Link | 1; | - | |
| 31 | 4037622 | Actuator, Turbocharger | 1; | - | |
| 32 | 3592774 | Housing, Turbine | 1; | - | |
| 33 | 3709510 | Ring, Retaining | 4; | - | |
| 34 | 3723863 | Ring, Retaining | 1; | - | |
| 35 | 3758848 | Seal, Split Ring | 1; | - | |
| 36 | 3760250 | Nut, Lock | 1; | - | |
| 37 | 3762915 | Seal, О Ring | 1; | - | |
| 38 | 3899343 | Gasket, Turbocharger | 1; | - | |
| 39 | 3518004 | Washer, Lock | 3; | - | |
| 40 | 3538468 | Трубка | 1; | - | |
| 41 | 3914420 | Clamp, Hose | 2; | - | |
| 42 | 3528121 | Коленчатый шланг муфты | 2; | - | |
| 43 | 3088984 | Gasket, Turbocharger | 1; | - | |
| 44 | 3095798 | Stud | 2; | - | |
| 45 | 3818824 | Nut, Hexagon Flange | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
