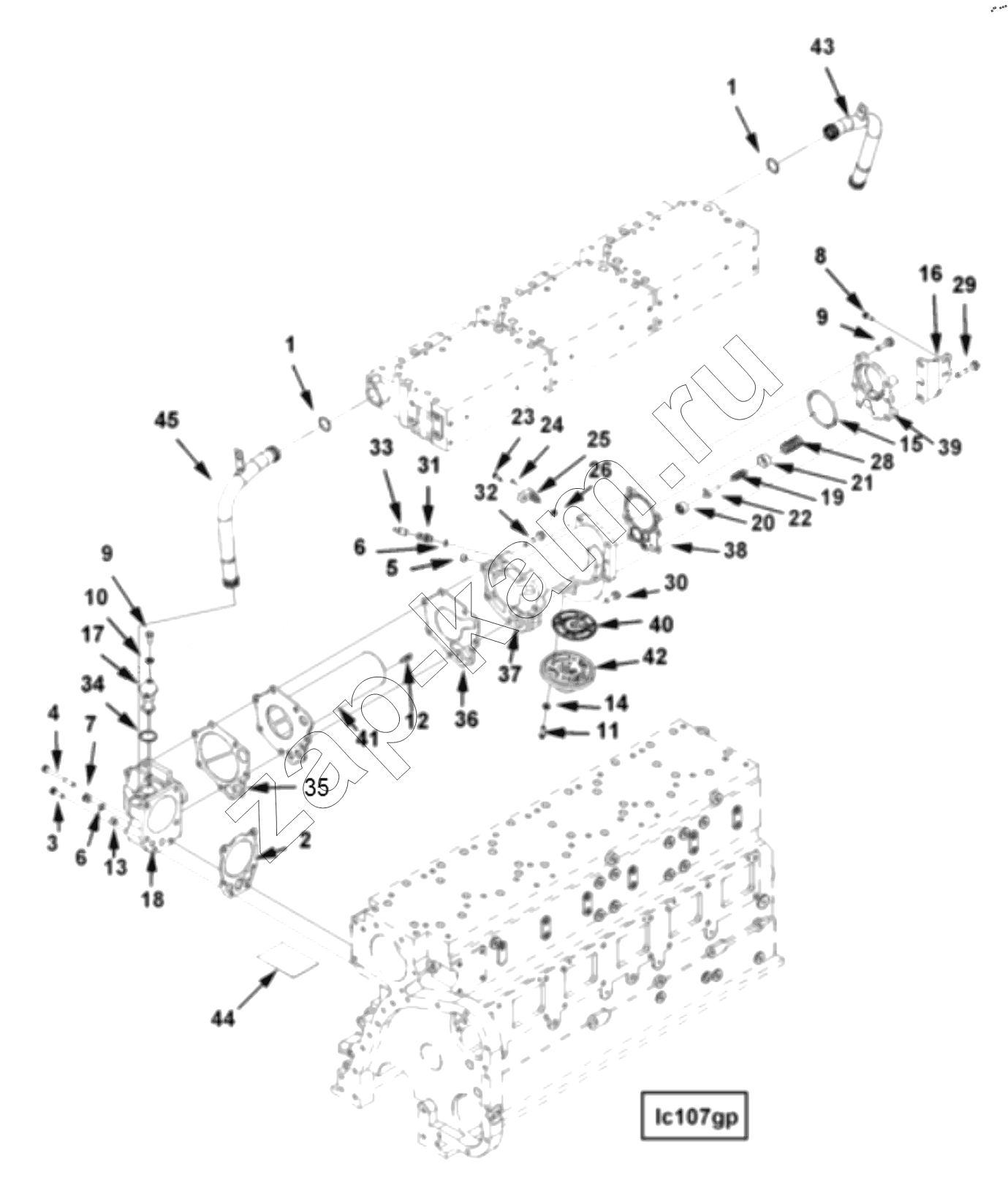

COOLER, ENGINE OIL LC 1767
/ Cummins QSNT-G
1
1
2
3
4
5
6
6
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
32
34
35
36
37
38
40
41
42
44
45
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3042619 | 3042619 | Nipple, Coupling | 1; | |
| 3035028 | 3035028 | ASSEMBLY, SENSING UNIT | 1; | |
| 4296439 | 4296439 | OIL COOLER, ENGINE | 1; | |
| 1 | 212161 | SEAL, O RING | 2; | |
| 2 | 3008017 | GASKET, OIL COOLER SUPPORT | 1; | |
| 3 | 3010596 | SCREW, CAPTIVE WASHER CAP | 3; | |
| 4 | 3010597 | SCREW, CAPTiVE WASHER CAP | 3; | |
| 5 | 3013786 | PLUG, PIPE | 2; | |
| 6 | 3037537 | Seal, O Ring | 1; | |
| 8 | 3044901 | SCREW5CAPTIVE WASHER CAP | 2; | |
| 9 | S 117 | SCREW HEXAGON HEAD | 2; | |
| 10 | S 604 | WASHER LOCK | 2; | |
| 11 | 212535 | SCREW TWELVE POINT CAP | 4; | |
| 12 | 214345 | DRAINCOCK | 1; | |
| 13 | 3008466 | PLUG, PIPE | 1; | |
| 14 | 3017915 | WASHER, PLAIN | 4; | |
| 15 | 4296501 | SEAL, RECTANGULAR RING | 1; | |
| 16 | 4296503 | BRACE, OIL COOLER | 1; | |
| 17 | 3023512 | VALVE, BYPASS | 1; | |
| 18 | 4296495 | SUPPORT, OIL COOLER | 1; | |
| 19 | 3030803 | SPRING, COMPRESSION | 1; | |
| 20 | 3030804 | PISTON, BYPASS VALVE | 1; | |
| 21 | 3030805 | PISTON, PRESSURE SENSING | 1; | |
| 22 | 3030806 | PLUNGER, BYPASS VALVE | 1; | |
| 23 | 3031005 | SCREW, PAN HEAD CAP | 1; | |
| 24 | 101996 | SCREW, PAN HEAD CAP | 1; | |
| 25 | 3030807 | UNIT, SENDING | 1; | |
| 26 | 3030808 | SEAL, 0 RING | 1; | |
| 27 | 3035624 | SCREW, CAPTIVE WASHER CAP | 4; | |
| 28 | 3039296 | SPRING, COMPRESSION | 1; | |
| 29 | 3040837 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 30 | 3040838 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 31 | 3042620 | Nipple, Coupling | 1; | |
| 32 | 3044413 | SCREW, CAPTIVE WASHER CAP | 8; | |
| 34 | 3045979 | SEAL, O RING | 1; | |
| 35 | 4296496 | GASKET, OIL COOLER CORE | 1; | |
| 36 | 4296497 | GASKET, LUB OIL CLR HSG | 1; | |
| 37 | 4296498 | HOUSING, OIL COOLER | 1; | |
| 38 | 4296500 | GASKET, LUB OIL CLR COVE | 1; | |
| 39 | 4296502 | COVER, LUB OIL COOLER | 1; | |
| 40 | 3070478 | GASKET, FILTER HEAD | 1; | |
| 41 | 4296499 | CORE, COOLER | 1; | |
| 42 | 3918334 | HEAD, LUB OIL FILTER | 1; | |
| 44 | 4025950 | DECAL, INFORMATION | 1; | |
| 45 | 4999531 | TUBE, WATER TRANSFER | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
