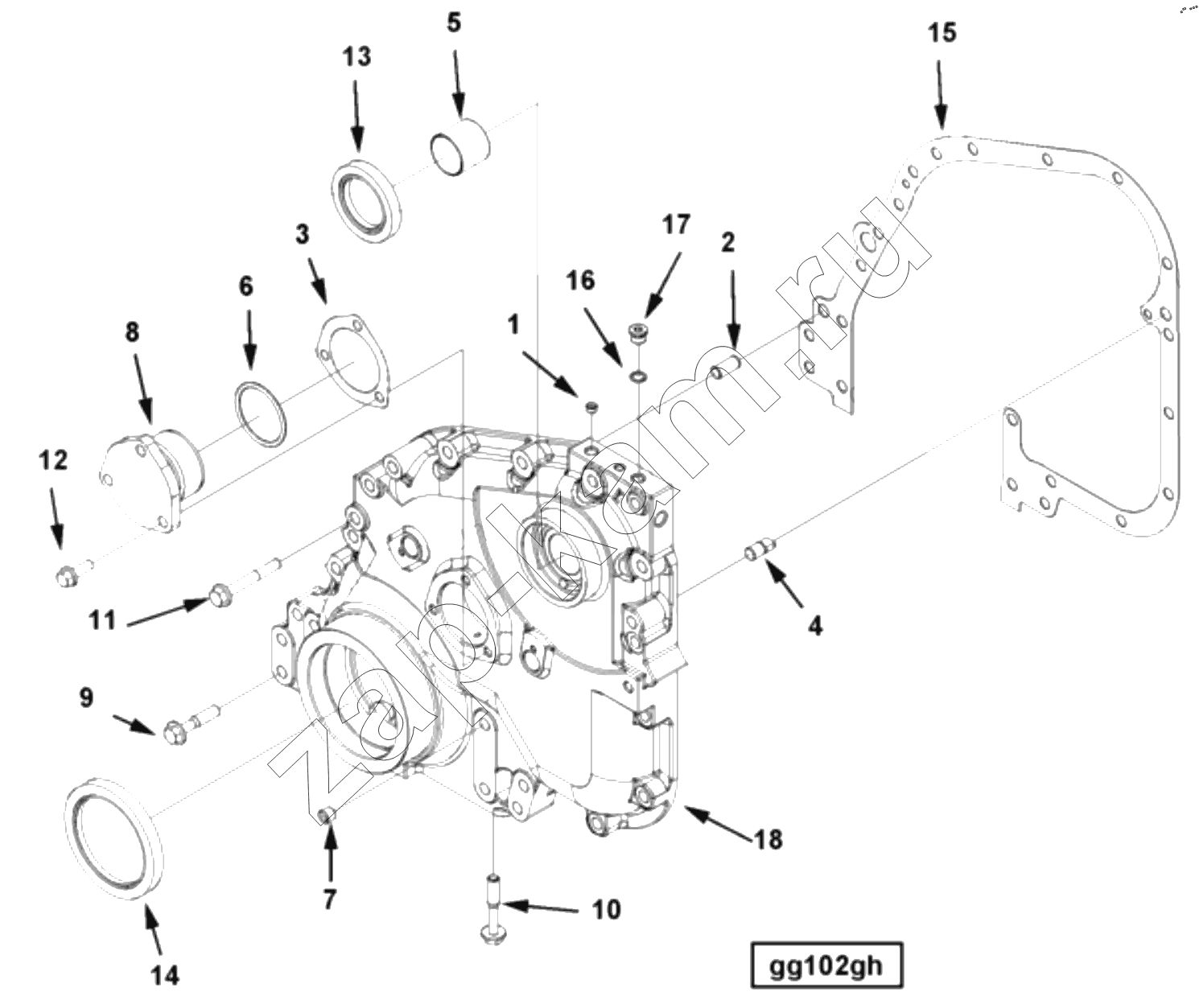

COVER, FRONT GEAR GG 1752
/ Cummins QSNT-G
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 3037536 | 3037536 | Plug, Threaded | 1; | |
| 4914941 | 4914941 | COVER, GEAR | 1; | |
| 1 | S 911 B | PLUG, PIPE | 1; | |
| 2 | 60408 | DWEL, PIN | 1; | |
| 3 | 65259 C | SHIM | 1; | |
| 4 | 70653 | DOWEL | 1; | |
| 5 | 132770 | BUSHING | 1; | |
| 5 | 132770 | BUSHING | 1; | |
| 6 | 215705 | SEAL, ORING | 1; | |
| 7 | 3008466 | PLUG, PIPE | 1; | |
| 8 | 3008530 | SUPPORT, CAMSHAFT THRUST | 1; | |
| 9 | 3011712 | SCREW, CAPTIVE WASHER CAP | 9; | |
| 10 | 3011713 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 11 | 3011714 | SCREW, CAPTIVE WAS | 3; | |
| 12 | 3011715 | SCREW, CAPTIVE WASHER CAP | 3; | |
| 13 | 3020185 | SEAUOiL | 1; | |
| 14 | 302018 | SEAL, OIL | 1; | |
| 15 | 3021704 | GASKET, GEAR COVER | 1; | |
| 16 | 3037537 | Seal, O Ring | 1; | |
| 17 | 3040813 | Plug, Threaded | 1; | |
| 18 | 4914937 | COVER, GEAR | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
