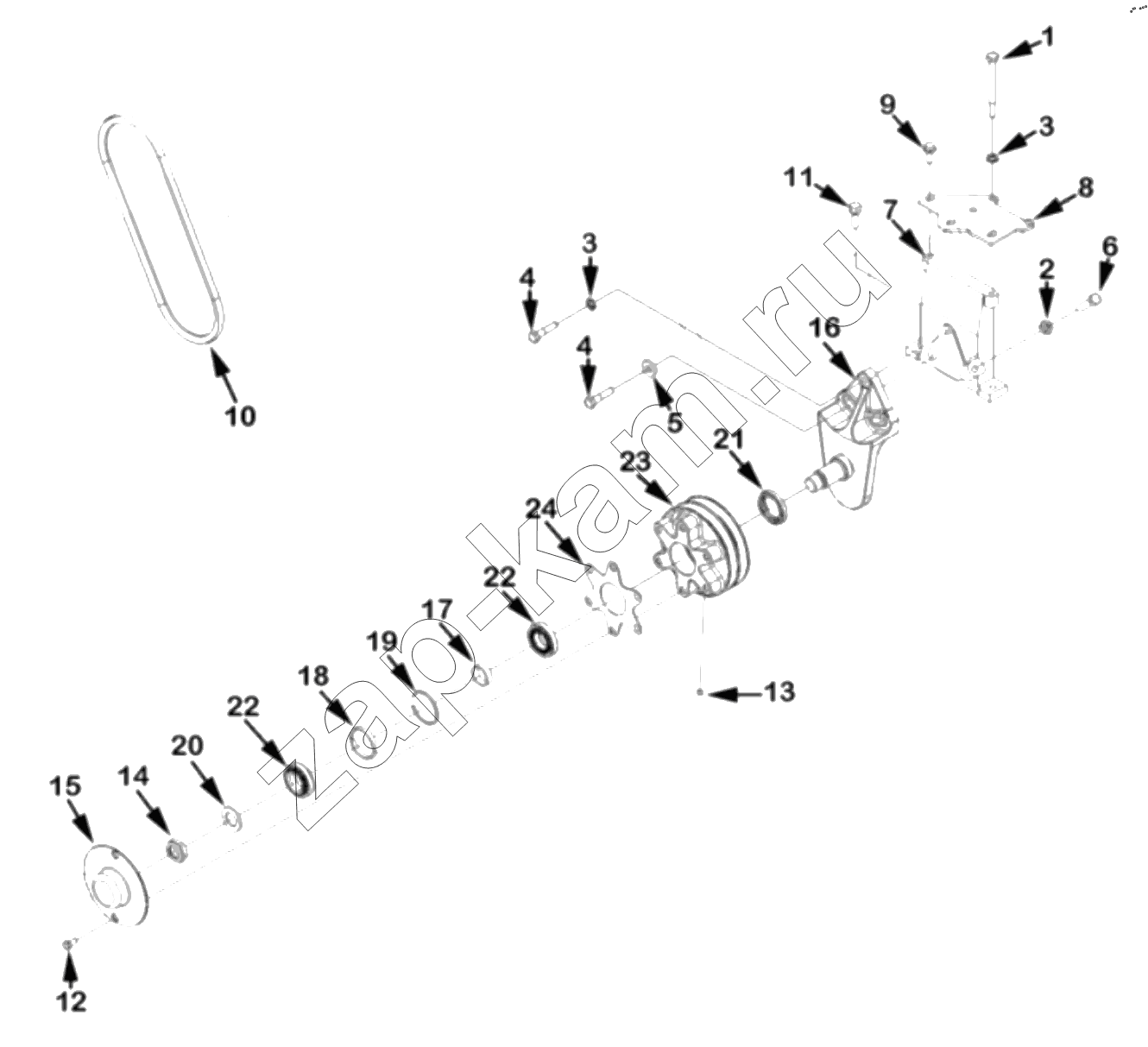

DRIVE, FAN FA 1681
/ Cummins QSNT-G
1
2
3
3
4
4
5
6
7
9
10
12
13
14
15
16
17
18
19
20
21
22
22
23
24
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4915469 | 4915469 | HUB, FAN | 1; | |
| 1 | 3069633 | SCREW, HEXAGON HEAD CAP | 3; | |
| 2 | S 285 | NUT, HEAVY HEXAGON JAM | 1; | |
| 3 | S 608 | WASHER, LOCK | 3; | |
| 4 | 69952 | SCREW, HEXAGON HEAD CAP | 3; | |
| 5 | 117267 | WASHER, COUNTER WEIGHT | 2; | |
| 6 | 166777 | SCREW, HEXAGON HEAD CAP | 1; | |
| 7 | 4297022 | BRACKET, FAN | 1; | |
| 9 | 3015282 | SCREW, CAPTIVE WASHER CAP | 2; | |
| 10 | 3040386 | BELT, V | 2; | |
| 12 | S 117 | SCREW HEXAGON HEAD | 2; | |
| 13 | S 911 B | PLUG, PIPE | 1; | |
| 14 | 142176 | NUT, LOCK | 1; | |
| 15 | 210888 | COVER, FAN HUB | 1; | |
| 16 | 211854 | SPINDLE, FAN | 1; | |
| 17 | 217008 | ACCESSORY DRIVE | 1; | |
| 18 | 217011 | SPACER, BEARING | 1; | |
| 19 | 3001280 | RING, RETAINING | 1; | |
| 20 | 3012467 | WASHER, PLATE | 1; | |
| 21 | 3062393 | SEAL, OIL | 1; | |
| 22 | 3655115 | BEARING, ROLLER | 2; | |
| 23 | 4296216 | PULLEY, FAN | 1; | |
| 24 | 4913829 | GASKET, FAN SPACER | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
