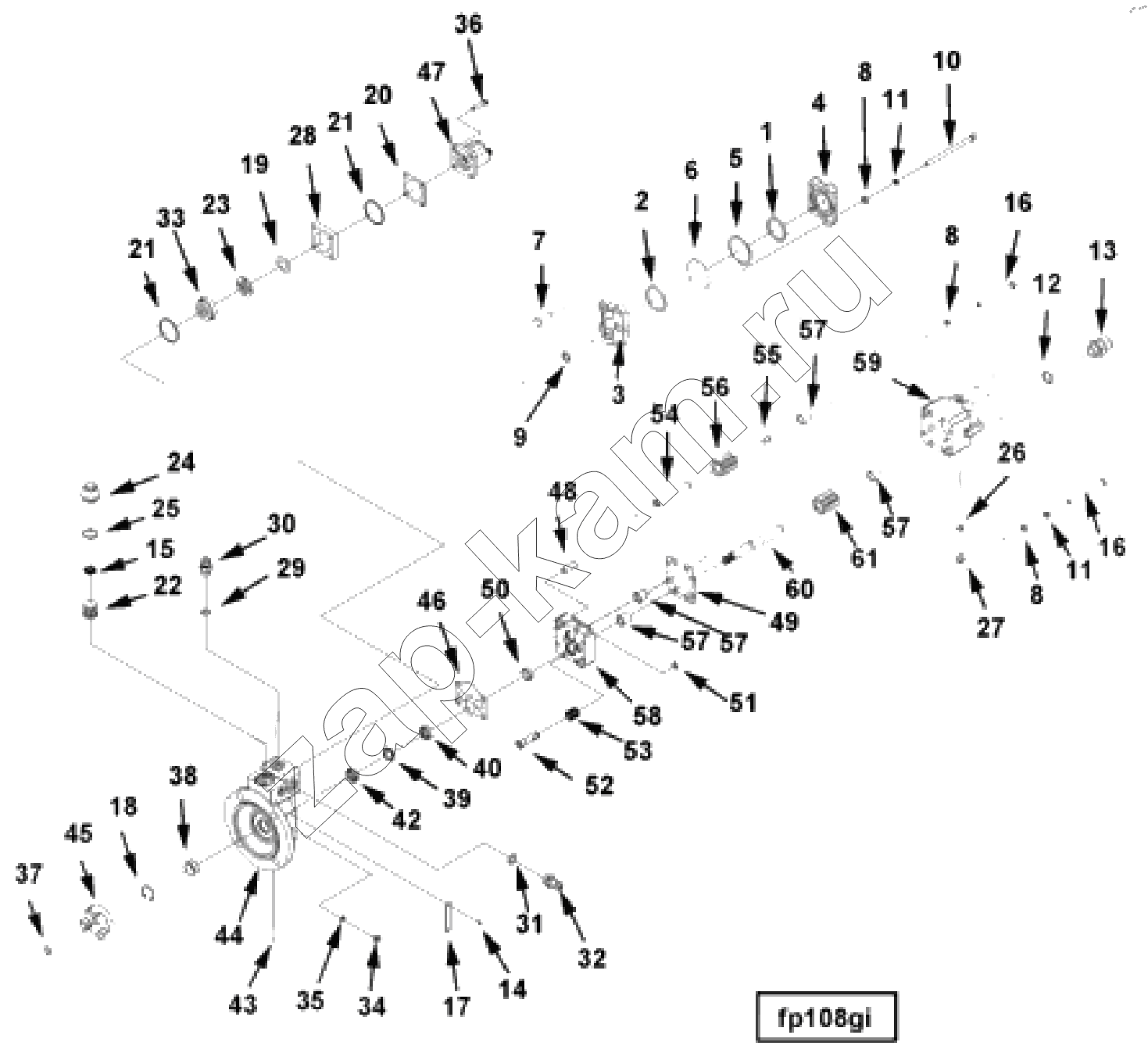

FUEL PUMP FP11079
/ Cummins QSNT-G
1
2
3
4
5
6
7
8
8
8
8
8
8
9
10
11
11
11
11
11
11
12
13
14
15
16
16
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
57
57
57
57
57
57
58
59
60
61
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4296362 | 4296362 | PUMP, FUEL | 1; | |
| 3098353 | 3098353 | PUMP, FUEL | 1; | |
| 3042619 | 3042619 | Nipple, Coupling | 1; | |
| 3056416 | 3056416 | Plug, Threaded | 4; | |
| 203850 | 203850 | Union, Male | 1; | |
| 4954878 | 4954878 | GEAR & SHAFT | 1; | |
| 4954877 | 4954877 | HOUSING, FUEL PUMP GEAR | 1; | |
| 4954876 | 4954876 | Cover, Fuel Pump Gear | 1; | |
| 4903125 | 4903125 | Gear & Shaft | 1; | |
| 3033742 | 3033742 | Plug, Threaded | 2; | |
| BM76340 | BM76340 | DAMPER, FUEL PUMP | 1; | |
| 3036865 | 3036865 | Union, Male | 1; | |
| 3090993 | 3090993 | Support, Fuel Pump | 1; | |
| 4954880 | 4954880 | Pump, Gear Fuel | 1; | |
| 1 | 100099 | Seal, Rectangular Ring | 1; | |
| 2 | 139988 | Seal, Rectangular Ring | 1; | |
| 3 | 153336 | Body, Fuel Pump Damper | 1; | |
| 4 | 153338 | Cover, Fuel Pump Damper | 1; | |
| 5 | 160514 | Washer, Plain | 1; | |
| 6 | 202897 | Diaphragm, Ful Pump Damper | 1; | |
| 7 | 3017051 | Screw, Captive Washer Cap | 2; | |
| 8 | 70704 | Washer, Plain | 2; | |
| 8 | 70704 | Washer, Plain | 2; | |
| 9 | 151900 | Seal, Rectangular Ring | 1; | |
| 10 | 153346 | Screw, Socket Head Cap | 2; | |
| 11 | 181466 | Washer, Lock | 2; | |
| 11 | 181466 | Washer, Lock | 4; | |
| 11 | 181466 | Washer, Lock | 2; | |
| 12 | 3046201 | Уплотнительное кольцо | 1; | |
| 13 | 3100517 | UNION, MALE | 1; | |
| 14 | S 2286 | SCREW, DRIVE | 2; | |
| 15 | 70700 | Spring, Compression | 1; | |
| 16 | 100129 | Screw, Socket Head Cap | 4; | |
| 16 | 100129 | Screw, Socket Head Cap | 2; | |
| 17 | 105375 | Nameplate | 1; | |
| 18 | 128807 | Ring, Retaining | 1; | |
| 19 | 129768 | Spring, Valve | 1; | |
| 20 | 129839 | Shield, Shutoff Valve | 1; | |
| 21 | 129888 | Seal, Rectangular Ring | 2; | |
| 22 | 146483 | Screen, Filter | 1; | |
| 23 | 196057 | Disc, Valve | 1; | |
| 24 | 3014575 | Cap, Fuel Pump Filter | 1; | |
| 25 | 3021123 | Seal, O Ring | 1; | |
| 26 | 3034412 | Seal, О Ring | 1; | |
| 27 | 3079584 | Plug, Threaded | 1; | |
| 28 | 3034451 | Housing, Actuator | 1; | |
| 29 | 3037236 | Seal, O'Ring | 1; | |
| 30 | 3100526 | Union, Male | 1; | |
| 31 | 3037537 | Seal, O Ring | 1; | |
| 32 | 3042620 | Nipple, Coupling | 1; | |
| 33 | 3056009 | Disc, Actuator | 1; | |
| 34 | 3056003 | Plug, Threaded | 1; | |
| 35 | 3056415 | Seal, О Ring | 1; | |
| 36 | 3065944 | Screw, Captive Washer Cap | 4; | |
| 37 | 3068768 | Ring, Retaining | 1; | |
| 38 | 3074317 | Spacer, Seal | 1; | |
| 39 | 2872429 | SPACER, SEAL | 1; | |
| 40 | 3071643 | Seal, Oil | 1; | |
| 42 | 3084713 | Seal, Oil | 1; | |
| 44 | 3090996 | Support, Fuel Pump | 1; | |
| 45 | 3095355 | Hub, Jaw Coupling | 1; | |
| 46 | 3096077 | Gasket, Fuel Pump | 1; | |
| 47 | 3098354 | SOLENOID | 1; | |
| 48 | 64816 A | DOWEL, PIN | 2; | |
| 49 | 110855 | Gasket, Fuel Pump | 1; | |
| 50 | 3033719 | Dowel, Ring | 1; | |
| 51 | 3085615 | Ring, Retaining | 1; | |
| 52 | 4010296 | Plunger, Prs Regulator | 1; | |
| 53 | 4010297 | Spring, Compression | 1; | |
| 54 | 4009847 | SHAFT, IDLER | 1; | |
| 55 | 4010038 | Valve, Check | 1; | |
| 56 | 4903124 | Gear, Fuel Pumping | 1; | |
| 57 | 3033724 | Bushing | 2; | |
| 57 | 3033724 | Bushing | 2; | |
| 58 | 4954875 | COVER, FUEL PUMP GEAR | 1; | |
| 59 | 4954794 | HOUSING, FUEL PUMP GEAR | 1; | |
| 60 | 3095356 | Shaft, Fuel Pump Drive | 1; | |
| 61 | 4903124 | Gear, Fuel Pumping | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
