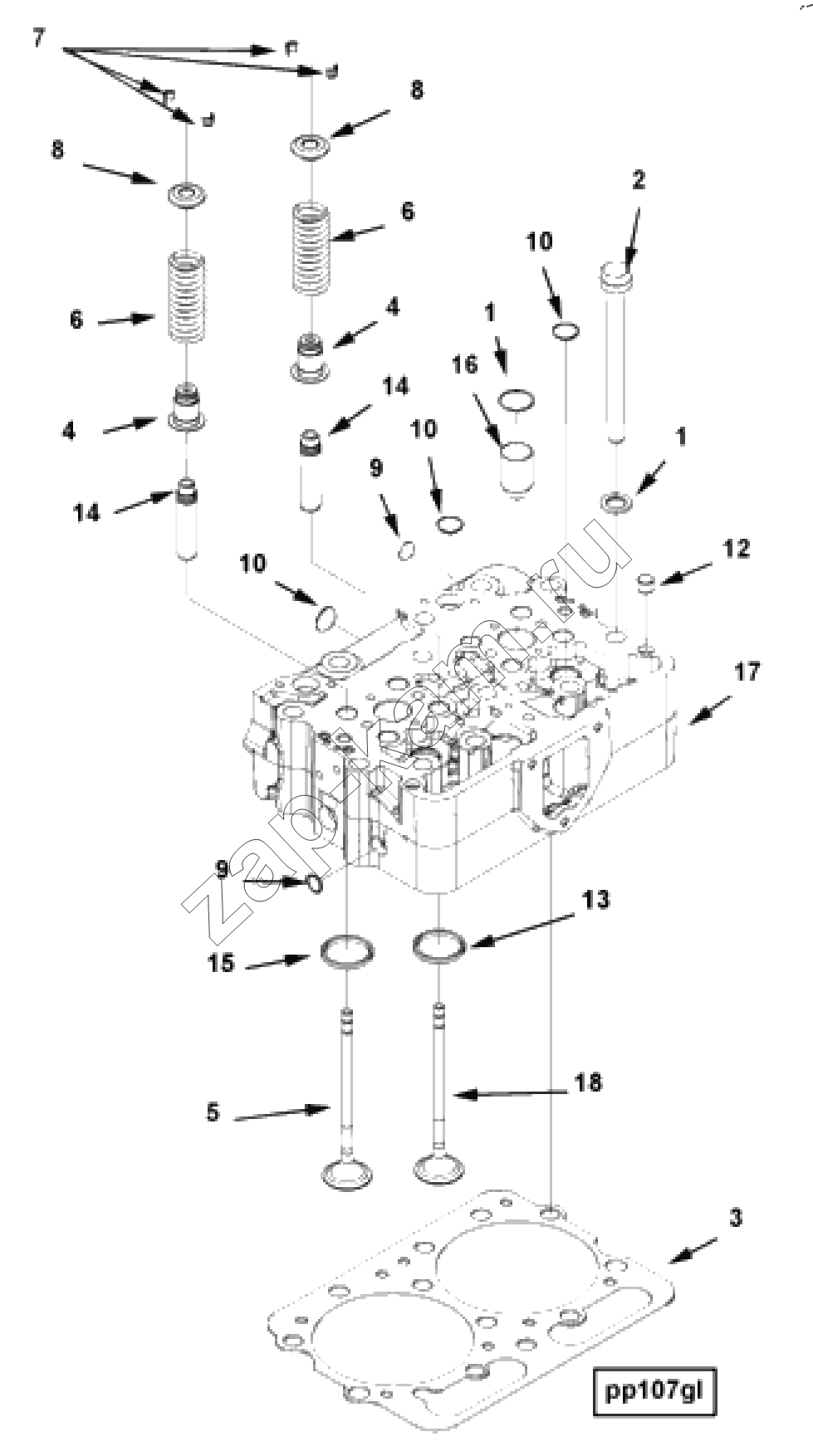

HEAD, CYLINDER PP 10388
/ Cummins QSNT-G
1
1
2
3
4
4
5
6
6
7
8
8
9
9
10
10
10
12
13
14
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4914939 | 4914939 | HEAD, CYLINDER | 1; | |
| 4999535 | 4999535 | HEAD, CYLINDER | 3; | |
| 1 | 3071075 | WASHER, PLAIN | 36; | |
| 2 | 3071161 | SCREW, HEXAGON HEAD CAP | 36; | |
| 3 | 4058790 | GASKET, CYLINDER HEAD | 3; | |
| 4 | 3064281 | SEAL, VALVE STEM | 8; | |
| 5 | 3068519 | VALVE, INTAKE | 4; | |
| 6 | 3070460 | SPRING, VALVE | 8; | |
| 7 | 3072369 | COLLET, VALVE | 16; | |
| 8 | 4026228 | RETAINER, VALVE SPRING | 8; | |
| 9 | 3007634 | PLUG, EXPANSION | 3; | |
| 10 | 3007635 | Plug, Expansion | 8; | |
| 11 | 3007759 | SEAL, O RING | 2; | |
| 12 | 3027106 | Dowel, Ring | 2; | |
| 13 | 3054590 | INSERT, VALVE | 4; | |
| 14 | 3064312 | GUIDE, VALVE STEM | 8; | |
| 15 | 3069692 | INSERT, VALVE | 4; | |
| 16 | 3406702 | SLEEVE, INJECTOR | 2; | |
| 17 | 4914940 | HEAD, CYLINDER | 1; | |
| 18 | 4999536 | VALVE, EXHAUST | 4; |
