LINER, CYLINDER BB 1924
/ Cummins QSNT-G

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано CLEANER, AIR AC 1262 PULLY, ACCESSORY DRIVE AD 1325 INDICATOR, RESTRICTION AG 1005 AIR HEATER STARTING AID AH 1006 APPROVAL, AGENCY AP 1280 BLOCK, CYLINDER BB 1924 LINER, CYLINDER BB 1924 CRANKSHAFT BB 1924 BLOCK, CYLINDER BB 1924 CRANKCASE, BREATHER BR 1302 ARRANGEMENT, CPR COOLANT CC 1037 ARRANGEMENT, CPR AIR INL CI 1013 DAMPER, VIBRATION DA 1269 FOLLOWER, CAMSHAFT DD 1709 DRIVE, FUEL PUMP DP 1712 THERMOSTAT EC 1731 ALTERNATOR EE 1310 MTG, ALTERNATOR EH 1138 SUPPORT, FRONT ENGINE EM 1309 DRIVE, FAN FA 1681 FILTER, FUEL FF 1323 PLUMBING, FUEL FILTER FF10035 HOUSING, FLYWHEEL FH11057 FAN, ENGINE FN 1047 MOUNTING, FUEL PUMP FP10250 COUPLING, FUEL PUMP FP11070 FUEL PUMP FP11079 ACCESSORIES, FUEL SYSTEM PLUMBING, FUEL FT10301 FLYWHEEL FW 1010 COVER, FRONT GEAR GG 1752 CONNECTION, AIR INTAKE IC 1125 MANIFOLD, AIR INTAKE IM1846 CONNECTION, AIR TRANSFER IT 1039 ARRANGEMENT, LIFTING LA 1126 COOLER, ENGINE OIL LC 1767 FILTER, FULL FLOW OIL LF 1253 GAUGE, OIL LEVER LG 1154 PUMP, LUBRICATING OIL LP 1726 LITERATURE LT 1188 ARRANGEMENT, OIL FILL OB 1448 PAN, OIL OP 1222 MOUNTING, OIL PAN OP 1795 MODULE, ENGINE CONTROL PH 1841 HEAD, CYLINDER PP 10388 TURBOCHARGER PP 10477 CAMSHAFT PP 44691 INJECTOR PP 44691 CONNECTING ROD AND PISTON PP 44691 FUEL CONNECTION PP 44691 PARTS, PERFORMANCE PP44691 LEVER, ROCKER RL1760 ACCESSORIES, ELECTRIC SB 1002 SHIELD, HEAT SH 1021 MOUNTING, STARTER MOTOR SM 1752 SPACER, FAN PILOT SP 1087 MOTOR, STARTING ST 1434 ARRANGEMENT, TURBOCHARGER TB 1584 MOUNTING, EXHAUST MANIFOLD TB10100 HOUSING, THERMOSTAT TH1214 PLUMBING, TURBOCHARGER TP 1874 COVER, VALVE VC 1090 PLUMBING, WATER DISCHARGE WD 1001 RESISTOR, CORROSION WF 1264 CONNECTION, WATER INLET WI 1078 CONNECTION, WATER OUTLET WO 1157 PUMP, WATER WP 1780 HARNESS, ECM WIRING WR 1729 CONNECTION, EXHAUST OUTLET XS 1099 CONNECTION, EXHAUST OUTLET XS 1100

1

2

3

4

Поз.	Артикул		Название детали	Кол-во
2885806	2885806		KIT, LINER	1;
215090	215090		SEAL, CREVICE	1;
3032874	3032874		SEAL, O RING	2;
3054948	3054948		RING, LINER SEAL	1;
3055099	3055099		LINER, CYLINDER	1;

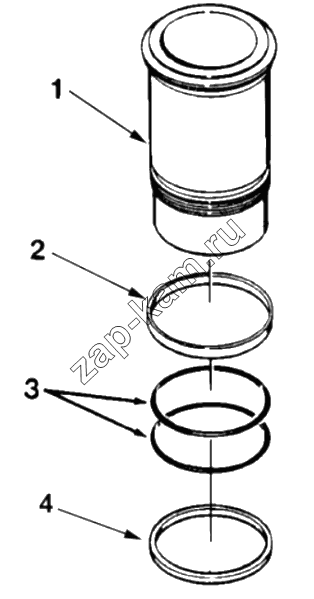

1	3055099		LINER, CYLINDER	6;
2	215090		SEAL, CREVICE	6;
3	3032874		SEAL, O RING	12;
4	3054948		RING, LINER SEAL	6;
