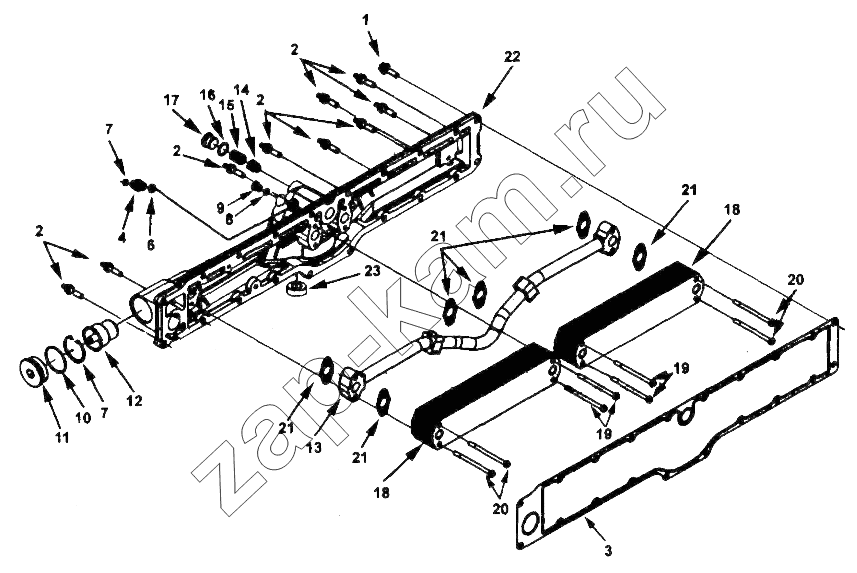

LC1734 Engine Oil Cooler
/ Cummins QSX-15 I
1
2
2
2
2
3
4
6
6
7
7
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
21
21
22
23
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4058956 | 4058956 | Cover, Protective | 1; | |
| 4026420 | 4026420 | Cover, Protective | 1; | |
| 3682789 | 3682789 | Gasket, Lub Oil Clr Hsg | 1; | |
| 4952506 | 4952506 | Head, Oil Filter Cooler | 1; | |
| 3090400 | 3090400 | Union, Male | 1; | |
| 4089197 | 4089197 | Kit, Lub Oil Clr Hsg Gaske | 1; | |
| 3679880 | 3679880 | Plug, Threaded | 1; | |
| 3678921 | 3678921 | Резьбовая пробка | 3; | |
| 1 | 3417474 | Screw, Captive Washer Cap | 15; | |
| 2 | 3681927 | Screw, Captive Washer Cap | 5; | |
| 3 | 3104232 | Gasket, Lub Oil Clr Hsg | 1; | |
| 4 | 3090419 | Union, Male | 1; | |
| 5 | 3679139 | Уплотнительное кольцо | 1; | |
| 6 | 3922794 | Уплотнительное кольцо | 1; | |
| 7 | 3411881 | Ring, Retaining | 1; | |
| 8 | 3678912 | Кольцевое уплотнение | 1; | |
| 9 | 3678922 | Пробка резьбовая | 1; | |
| 10 | 3089025 | Seal, О Ring | 1; | |
| 11 | 3679881 | Plug, Threaded | 1; | |
| 12 | 4952631 | Thermostat | 1; | |
| 13 | 3681557 | Tube, Oil Cooler | 1; | |
| 14 | 3820320 | Plunger, Bypass Valve | 1; | |
| 15 | 38825864952760 | Spring, Compression Plug, Threaded | 1; | |
| 16 | 3678606 | Seal, O Ring | 1; | |
| 17 | 4952759 | Plug, Threaded | 1; | |
| 18 | 4965870 | Core, Cooler | 2; | |
| 19 | 4101867 | Screw, Twelve Point Cap | 4; | |
| 20 | 4107868 | Screw, Twelve Point Cap | 4; | |
| 21 | 4101869 | Gasket, Oil Cooler Core | 6; | |
| 22 | 4952507 | Head, Oil Filter Cooler | 1; | |
| 23 | 3681508 | Insert, Filter Head | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
