5. OB1401 Oil Fill Arrangement

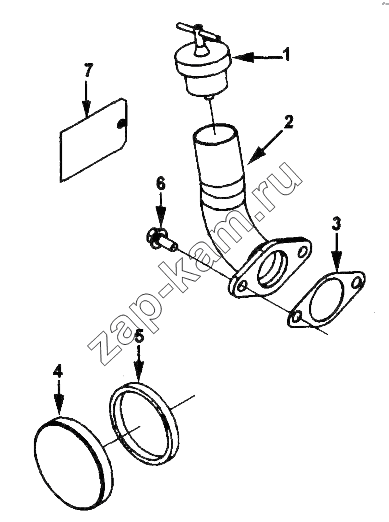

OB1401 Oil Fill Arrangement
/ Cummins QSX-15 I

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано AP1030 Agency Approval AP1045 Agency Approval BB1725 Cylinder Block BB1725 Cylinder Liner Kit BB1725 Cover Plate BB1725 Crankshaft BB1725 Gear Housing/Idler Gears BB1725 Gear Housing Brace BB1836 Cylinder Block BB1836 Cylinder Liner Kit BB1836 Cover Plate BB1836 Crankshaft BB1836 Gear Housing/Idler Gears BB1836 Gear Housing Brace BR1242 Crankcase Breather BR1252 Crankcase Breather CB1704 Engine Barring Drive CB1705 Engine Barring Drive CF1032 Refrigerant Compressor СН1011 Coolant Heater Starting Aid CH1014 Coolant Heater Starting Aid DA1229 Vibration Damper DA1230 Vibration Damper DF1044 Front Gear Train Accessory Drive EB1203 Engine Brake EC1722 Thermostat EE1240 Alternator EH1083 Alternator Mounting EH1721 Alternator Drive EH1723 Alternator Drive EM1343 Front Engine Support FA1464 Fan Drive FA1480 Fan Drive IC1056 Air Intake Connection IT1014 Air Transfer Connection FH11089 Flywheel Housing FH11093 Flywheel Housing LF1210 Full Flow Oil Filter FP11056 Fuel Pump FP11061 Fuel Pump PP2627 Piston Cooling Nozzle GG1725 Front Gear Cover GG1727 Front Gear Cover IC1065 Air Intake Connection FF1254 Fuel Filter IT1021 Air Transfer Connection LC1734 Engine Oil Cooler LG1037 Oil Level Gauge LG1088 Oil Level Gauge (Long) OB1397 Oil Fill Arrangement OB1401 Oil Fill Arrangement OP1491 Oil Pan PH1763 Electronic Control Module FW1020 Flywheel PP2627 Engine Piston PP2627 Cylinder Head IC1056 Air Intake Connection IT1014 Air Transfer Connection PP2627 Injector PP2627 Gear Cover Noise Panel LF1210 Full Flow Oil Filter PP2825 Injector PP10169 Turbocharger PP10200 Cylinder Head PP10200 Gear Cover Noise Panel PP10224 Engine Piston PP2627 Piston Cooling Nozzle RL1732 Rocker Lever PP2627 Camshaft SM1742 Starting Motor Mounting TB1374 Turbocharger Arrangement TB1411 Turbocharger Arrangement PP2825 Camshaft TH1160 Thermostat Housing TP1750 Turbocharger Plumbing VC1072 Valve Cover WI1087 Water Inlet Connection PP10224 Piston Cooling Nozzle W01123 Water Outlet Connection WP1730 Water Pump PP10252 Turbocharger WP1733 Water Pump Gasket Set Kits & Sets SM1732 Starting Motor Mounting ST1361 Starting Motor WF1241 Corrosion Resistor W01121 Water Outlet Connection XS1060 Exhaust Outlet Connection Gasket Set

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
3100789	3100789		Assembly, Oil Fill	1;
1	3101401		Cap, Filler	1;
2	3100468		Tube, Oil Filler	1;
3	3104119		Gasket, Cover Plate	1;
4	3903463		Колпак. Отверстие для доступа	1;
5	4962609		Seal, Rectangular Ring	1;
6	3903990		Винт	2;
7	3892253		Tag, Instruction	1;
