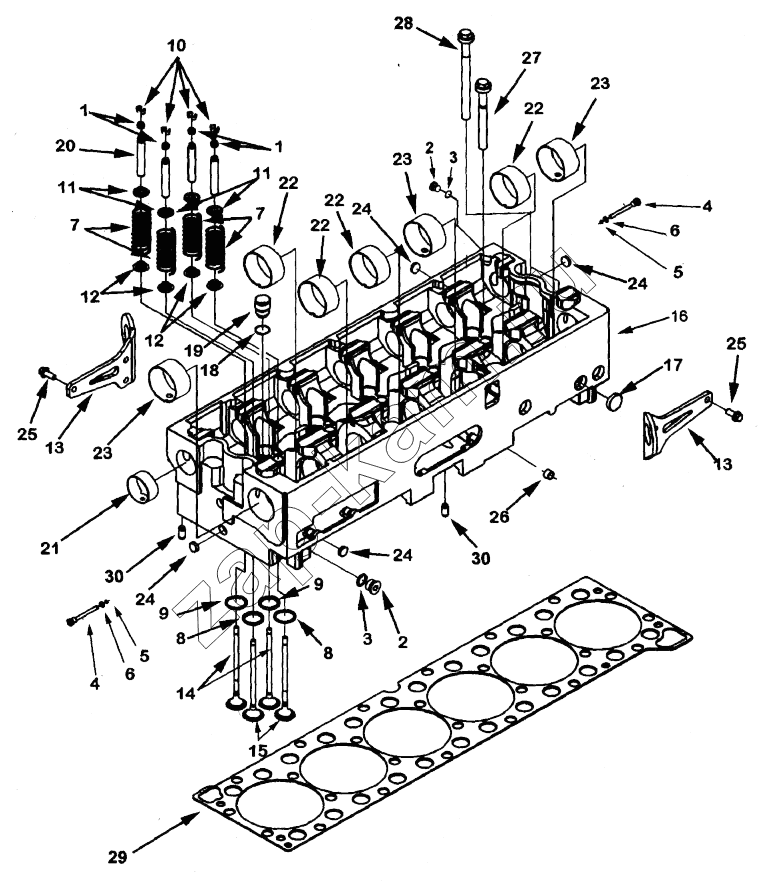

PP2627 Cylinder Head
/ Cummins QSX-15 I
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
22
22
23
23
23
24
24
24
24
25
25
26
27
28
29
30
30
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4059238 | 4059238 | Head, Cylinder | 1; | |
| 1 | 4026660 | Seat, Valve Stem | 12; | |
| 1 | 4026791 | Seal, valve Stem | 12; | |
| 2 | 3678611 | Plug, Threaded | 3; | |
| 3 | 3678608 | Seal, О Ring | 1; | |
| 4 | 3679354 | Plug, Threaded | 6; | |
| 5 | 3678603 | Кольцевое уплотнение | 1; | |
| 6 | 3679122 | Seal, О Ring | 1; | |
| 7 | 3679551 | Spring, Valve | 24; | |
| 8 | 3679537 | Insert, Valve | 12; | |
| 9 | 4059215 | Insert, Valve | 12; | |
| 10 | 3680883 | Collet, Valve | 48; | |
| 11 | 3680884 | Retainer, Valve Spring | 48; | |
| 12 | 3680318 | Guide, Valve Spring | 24; | |
| 13 | 3680656 | Bracket, Lifting | 2; | |
| 14 | 4059326 | Valve, Intake | 12; | |
| 15 | 4059327 | Valve, Exhaust | 12; | |
| 16 | 4059248 | Head, Cylinder | 1; | |
| 17 | 3015865 | Plug, Expansion | 7; | |
| 18 | 3678536 | Seal, Rectangular Ring | 6; | |
| 19 | 4061685 | Sleeve, Injector | 6; | |
| 20 | 4026657 | Guide, Valve Stem | 24; | |
| 21 | 4026423 | Bushing | 7; | |
| 22 | 3680580 | Bushing | 4; | |
| 23 | 3680581 | Bushing | 3; | |
| 24 | 3813247 | Plug, Expansion | 20; | |
| 25 | 3910495 | Винт с шестигранной головкой | 6; | |
| 26 | 3911678 | Dowel, Ring | 2; | |
| 27 | 3678506 | Screw, Hex Flange Head Cap | 22; | |
| 28 | 3678804 | Screw, Hex Flange Head Cap | 4; | |
| 29 | 4059350 | Gasket, Cylinder Head | 1; | |
| 30 | 3901846 | Pin, Dowel | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
