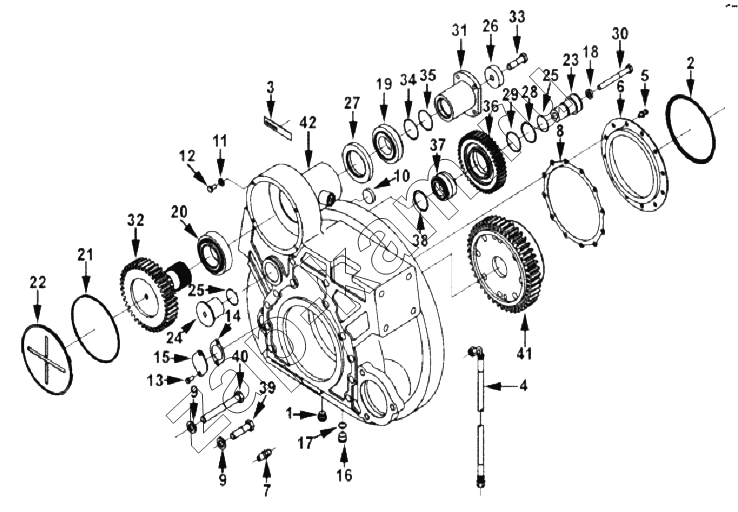

FH2326 Flywheel Housing
/ Cummins Серия ISMe
/71.gif)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| FH2326 | FH2326 | Flywheel Housing | ; | |
| 3046202 | 3046202 | Plug, Threaded | 1; | |
| 3892091 | 3892091 | Gear, Idler | 1; | |
| 4973870 | 4973870 | Housing, Flywheel | 1; | |
| 1 | 3042004 | Plug, Threaded | 2; | |
| 2 | 3161025 | Seal, Dust | 1; | |
| 3 | 3161082 | Decal | 1; | |
| 4 | 3417496 | TUBE, FLEXIBLE Screw, Captive | 1; | |
| 5 | 3821783 | Screw, Captive Washer Cap | 12; | |
| 6 | 3883620 | Seal, Oil | 1; | |
| 7 | 3896796 | Connector, Male | 2; | |
| 8 | 4022497 | Gasket, Carrier | 1; | |
| 9 | 127316 | WASHER, PLAIN | 12; | |
| 10 | 204476 | Plug, Expansion | 1; | |
| 11 | 3009329 | Washer, Plain | 4; | |
| 12 | 3025801 | Head Cap Screw, Hexagon | 4; | |
| 13 | 3025802 | Screw, Hexagon Head Cap | 2; | |
| 14 | 3026134 | Gasket, Cover Plate | 1; | |
| 15 | 3026135 | Cover, Access Hole | 1; | |
| 16 | 3040810 | Plug, Threaded | 1; | |
| 17 | 3046201 | Уплотнительное кольцо | 1; | |
| 18 | 3627372 | Washer, Spring | 1; | |
| 19 | 3862522 | Bearing, Roller | 1; | |
| 20 | 3862523 | Bearing, Roller Seal, Rectangular | 1; | |
| 21 | 3862524 | Ring | 1; | |
| 22 | 3862525 | Plate, Cover | 1; | |
| 23 | 3862661 | Shaft, Idler | 1; | |
| 24 | 3862662 | Retainer, Shaft | 1; | |
| 25 | 3862669 | Seal, O-Ring | 2; | |
| 26 | 3862673 | Washer, Spring | 1; | |
| 27 | 3862674 | Seal, Oil | 1; | |
| 28 | 3862676 | Washer, Plan | 1; | |
| 29 | 3862678 | Washer, Plan Screw, Hexagon | 1; | |
| 30 | 3862777 | Head Cap Flange, Power | 1; | |
| 31 | 3862906 | Takeoff Shaft, Accessory | 1; | |
| 32 | 3862917 | Drive Screw, Hexagon | 1; | |
| 33 | 3862966 | Head Cap | 1; | |
| 34 | 3862997 | Washer, Plan | 1; | |
| 35 | 3862998 | Washer, Plan | 1; | |
| 36 | 3862916 | Gear, Idler | 1; | |
| 37 | 3892357 | Bearing, Roller | 1; | |
| 38 | 3892317 | Washer, Plan Screw, Hexagon | 1; | |
| 39 | 3892790 | Head Cap Screw, Hexagon | 5; | |
| 40 | 3892791 | Head Cap | 7; | |
| 41 | 4082735 | Gear, Crankshaft | 1; | |
| 42 | 4973869 | Housing, Flywheel | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
