РР2830-04 Injector
/ Cummins Серия ISMe
/53.gif)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

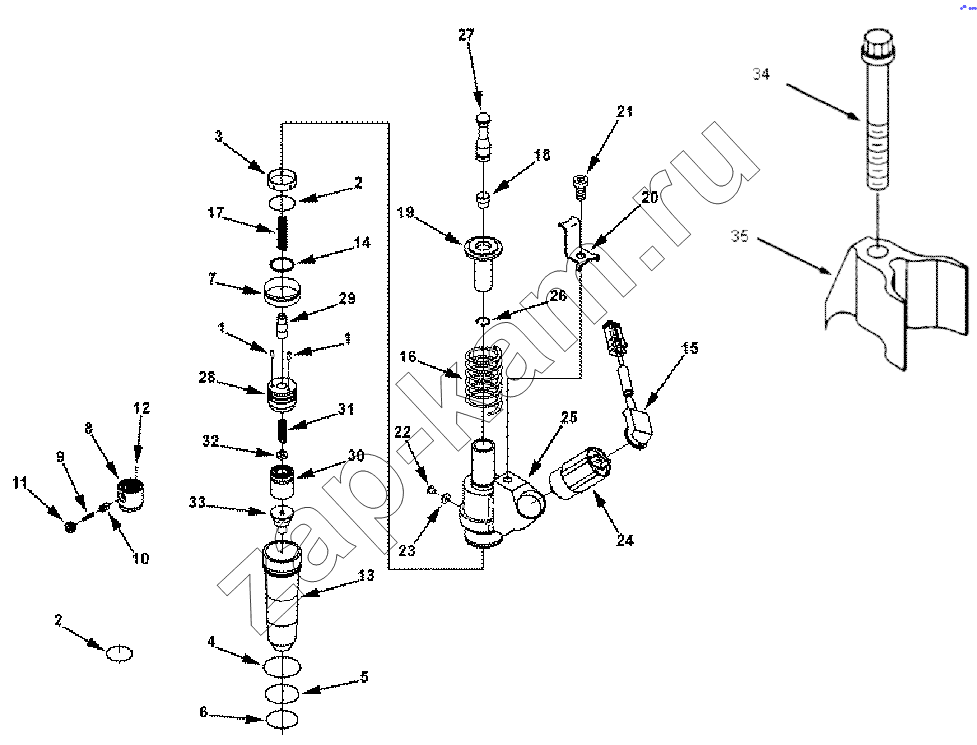

| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 4061851 | 4061851 | Injector | 6; | - | |
| 3087555 | 3087555 | Body & Plunger | 1; | - | |
| 3095106 | 3095106 | Link, Injector Plunger | 1; | - | |
| 3411711 | 3411711 | Barrel & Plunger | 1; | - | |
| 4061852 | 4061852 | Cup, Injector | 1; | - | |
| РР2830-04 | РР2830-04 | Injector | ; | - | |
| 3083863 | 3083863 | Coupling, Injector Plunger | 1; | - | |
| 3072823 | 3072823 | Spacer, Inj Spring Housing | 1; | - | |
| 1 | 4077153 | Pin, Straight | 2; | - | |
| 2 | 3068959 | Seal, O-Ring | 1; | - | |
| 3 | 3070113 | Sleeve, Injector | 1; | - | |
| 4 | 3070136 | Seal, О Ring | 1; | - | |
| 5 | 3070137 | Seal, О Ring | 1; | - | |
| 6 | 3070138 | Seal, О Ring | 1; | - | |
| 7 | 3071967 | Screen, Filter | 1; | - | |
| 8 | 3072819 | Spacer, Inj Spring Housing | 1; | - | |
| 9 | 3072820 | Spring, Injector | 1; | - | |
| 10 | 3072821 | Guide, Spring | 1; | - | |
| 11 | 3072822 | Screw, Socket Set | 1; | - | |
| 12 | 3076068 | Ball, Check | 1; | - | |
| 13 | 3074219 | Retainer, Injector Cup | 1; | - | |
| 14 | 3075658 | Seal, О Ring | 1; | - | |
| 15 | 3076256 | Harness, Wiring | 1; | - | |
| 16 | 3078236 | Spring, Injector | 1; | - | |
| 17 | 3081388 | Spring, Injector | 1; | - | |
| 18 | 3079924 | Socket, Injector Coupling | 1; | - | |
| 19 | 3083862 | Coupling, Injector Plunger | 1; | - | |
| 20 | 3083871 | Retainer, Inj Coupling | 1; | - | |
| 21 | 3083872 | Screw, Socket Head Cap | 1; | - | |
| 22 | 3075613 | Screw, Socket Head Cap | 1; | - | |
| 23 | 3080421 | Washer, Sealing | 1; | - | |
| 24 | 3080429 | Valve, Solenoid | 1; | - | |
| 25 | 3087553 | Body & Plunger | 1; | - | |
| 26 | 3072486 | Retainer, Injector Link | 1; | - | |
| 27 | 3080426 | Link, Injector Plunger | 1; | - | |
| 28 | 3095088 | Barrel, Injector | 1; | - | |
| 29 | 3411710 | Plunger, Injector | 1; | - | |
| 30 | 3066736 | Housing, Injector Spring | 1; | - | |
| 31 | 3066738 | Spring, Compression | 1; | - | |
| 32 | 3067426 | Retainer, Injector Spring | 1; | - | |
| 33 | 4061853 | Cup & Tip | ; | - | |
| 34 | 3882793 | Screw, Twelve Point Cap | 1; | - | |
| 35 | 4022914 | Clamp, Injector | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
