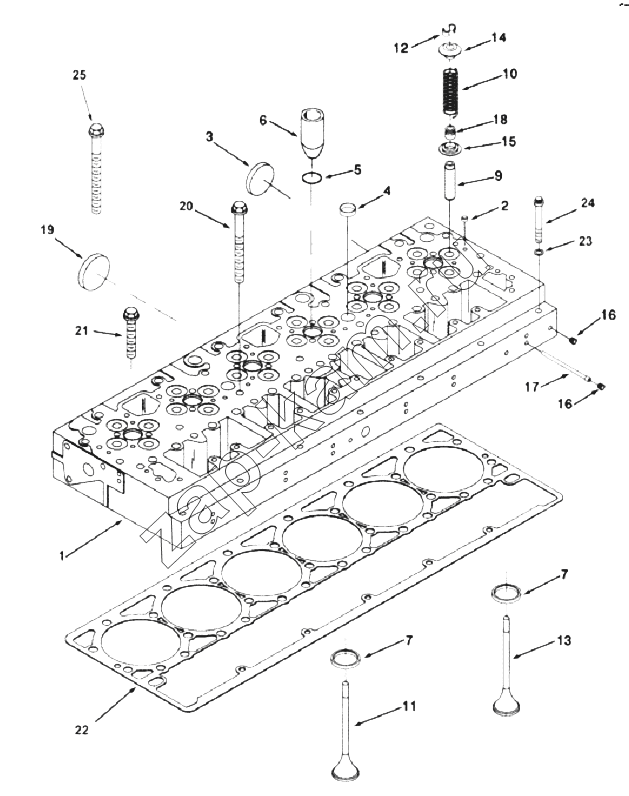

РР2830-05 Cylinder Head
/ Cummins Серия ISMe
/54.gif)
1
2
3
4
5
6
7
7
9
10
11
12
12
13
14
15
16
16
18
19
20
21
22
23
24
25
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 2864028 | 2864028 | Head, Cylinder Tla | 1; | - | |
| 3418047 | 3418047 | Insert, Valve | ; | - | |
| 3418046 | 3418046 | Insert, Valve | ; | - | |
| 3418045 | 3418045 | Insert, Valve | ; | - | |
| 3418044 | 3418044 | Insert, Valve | ; | - | |
| 3417558 | 3417558 | Guide, Valve Stem | ; | - | |
| РР2830-05 | РР2830-05 | Cylinder Head | ; | - | |
| 1 | 2864024 | Head, Cylinder | 1; | - | |
| 2 | 3007632 | Расширительная пробка | 2; | - | |
| 3 | 206741 | Plug, Expansion | 2; | - | |
| 4 | 3007635 | Plug, Expansion | 8; | - | |
| 5 | 3035026 | Seal, 0 Ring | 6; | - | |
| 6 | 3417717 | Sleeve, Injector | 6; | - | |
| 7 | 3090704 | Insert, Valve | 24; | - | |
| 9 | 4923471 | Guide, Valve Stem | 24; | - | |
| 10 | 3895860 | Spring, Valve | 24; | - | |
| 11 | 4926069 | Valve, Intake | 12; | - | |
| 12 | 3275354 | Collet, Valve | 24; | - | |
| 12 | 3275354 | Collet, Valve | 24; | - | |
| 13 | 3417779 | Valve, Exhaust | 12; | - | |
| 14 | 3104151 | Retainer, Valve Spring | 24; | - | |
| 15 | 3070072 | Guide, Valve Spring | ; | - | |
| 16 | 3008465 | Заглушка трубки, 1/8 NPT резьба | 16; | - | |
| 18 | 4003966 | Seal, Valve Stem | 24; | - | |
| 19 | 3895479 | Plug, Expansion | 2; | - | |
| 20 | 4923187 | Screw, Hex Flange Head Cap | 29; | - | |
| 21 | 4022907 | Screw, Hex Flange Head Cap | 3; | - | |
| 22 | 4022500 | Gasket, Cylinder Head | 1; | - | |
| 23 | 3328328 | Washer, Sealing | 7; | - | |
| 24 | 3328637 | Screw, Hex Flange Head Cap | 5; | - | |
| 25 | 3328379 | Screw, Hex Flange Head Cap | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
