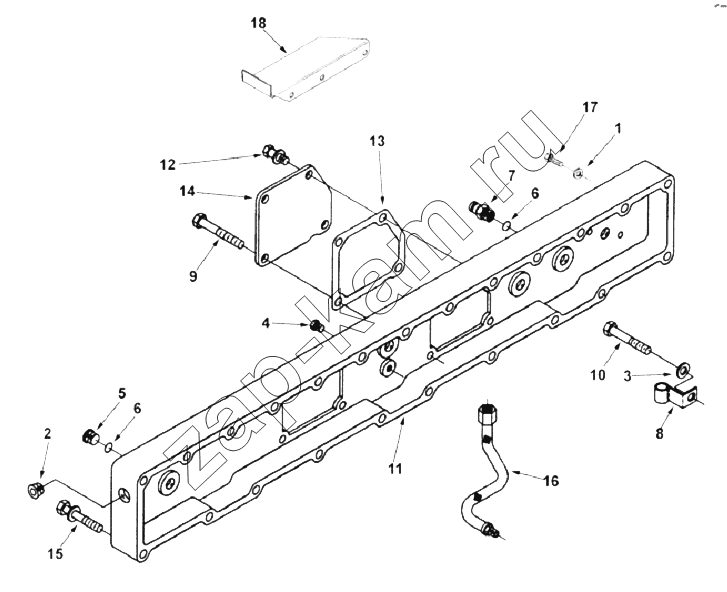

ТВ2365 Turbocharger Arrangement
/ Cummins Серия ISMe
/61.gif)
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| ТВ2365 | ТВ2365 | Turbocharger Arrangement | ; | - | |
| 1 | 3036460 | Washer, Spring | 4; | - | |
| 2 | 3008468 | Заглушка трубки | 1; | - | |
| 3 | 3009330 | Washer, Plain | 2; | - | |
| 4 | 3031511 | Plug, Pipe | 1; | - | |
| 5 | 3037536 | Plug, Threaded | 4; | - | |
| 6 | 3037537 | Seal, O Ring | 1; | - | |
| 6 | 3037537 | Seal, O Ring | 1; | - | |
| 7 | 3042619 | Nipple, Coupling | 1; | - | |
| 8 | 3073750 | Clip | 1; | - | |
| 9 | 3081346 | Screw, Hexagon Head Cap | 2; | - | |
| 10 | 3088162 | Screw, Hexagon Head Cap | 5; | - | |
| 11 | 3406757 | Manifold, Air Intake | 1; | - | |
| 12 | 3818060 | Screw, Captive Washer Cap | 2; | - | |
| 13 | 3818846 | Gasket, Connection | 1; | - | |
| 14 | 3028540 | Plate, Cover | 1; | - | |
| 15 | 3821847 | Screw, Captive Washer Cap | 5; | - | |
| 16 | 3883780 | Hose, Flexible | 1; | - | |
| 17 | 3820710 | Screw, Captive Washer Cap | 2; | - | |
| 18 | 4004810 | Shield, Heat | 1; | - | |
| 19 | 3081345 | Screw, Hexagon Head Cap | 1; | - | |
| 20 | 4973960 | Stud | 2; | - | |
| 21 | 3335470 | Shield, Heat | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
