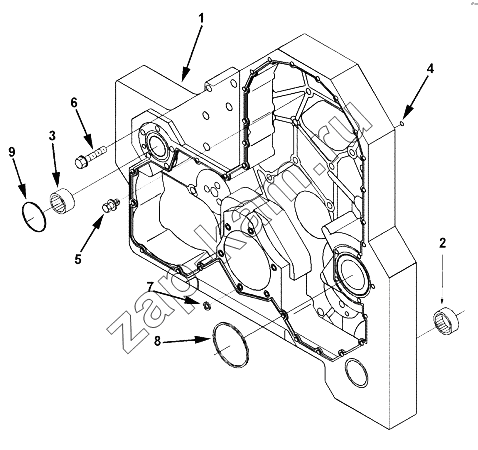

ВВ2778-02 Gear Housing
/ Cummins Серия ISMe

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G2 (2010) 4ISBe-185 (2013) 6BTA5.9-C155 (2009) 6BTA5.9-C180 (2009) 6BTAA5.9-C180 (2013) 6ISBe-210 (2013) 6ISBe-270B (2013) 6ISBe-285 (2013) 6ISBe4-245 (2013) 6ISBe4-245 (Камский Автозавод-4308) (2013) 6ISBe4-300 (2013) 6ISLe-400-40 (Repto) (2013) B180-20 (2008) B3.9-C116 (2012) Cummins 310 (2010) Cummins-300-20 (2008) Cummins-4BT3.9 (1986) ISF 2.8 (S3129T) (2012) ISF 3.8 (S3154) (2012) ISLe 310-30 (340-30, 375-30) (2008) L325-20 (2010) L340-20 (2010) L375-20 (2010) NT855-C280 BC III (2004) QSM-11 Tier 3 (2015) QSNT-G (2015) QSX-15 I (2010) Серия ISMe (2010)

Схема > Не выбрано AD2061-03 Accessory Drive Pulley АР2121 Agency Approval ВВ2736-02 Cylinder Block Plumbing ВВ2778 Block, Cylinder ВВ2778-01 Cylinder Liner Kit ВВ2778-01 Crankshaft ВВ2778-01 Main Bearings ВВ2778-01 Idler Gears ВВ2778-02 Gear Housing ВВ2778-02 Cam Follower Lever ВВ2778-03 Cylinder Block BR2709-03 Crankcase Breather СС2160-04 Air Compressor Coolant Plumbing СН2021-03 Coolant Heater Starting Aid CI2055-03 Air Compressor Inlet Arrangement СР2078-05 Air Compressor DA2070-03 Vibration Damper DF2028-01 Front Gear Train Accessory DP2702-03 Fuel Pump Drive ЕВ2073 Brake, Engine ЕВ2708 Brake, Engine ЕВ2047-02 Brake, Engine ЕС2701-02 Thermostat ЕН2113-06 Alternator Mounting ЕН2701-05 Alternator Drive Pulley ЕМ2037-01 Front Engine Support FA2164-08 Fan Drive FF2194-09 Fuel Filter FF2742-01 Fuel Pump Inlet Fitting FF2750-02 Fuel Filter Plumbing FF2782-02 Fuel Filter Mounting FH2323 Flywheel Housing FP2945-02 Fuel Pump Coupling FP2953-03 Fuel Pump FT22072-07 Fuel Plumbing FW2155-04 Flywheel GG2701-08 Front Gear Cover IC2094 Air Intake Connection IT2005-01 Air Transfer Connection LA2044-05 Lifting Bracket LC2766-02 Oil Filter And Cooler Head LF2054-05 Full Flow Oil Filter LG2152 Oil Level Gauge LP2709-03 Lube Oil Pump ОВ2406-03 Cylinder Block Cover ОВ2701-03 Hand Hole Cover ОР2152 Oil Pan РН2809-11 Electronic Control Cooler РР20090 Turbocharger РР2830-01 Piston Cooling Nozzle РР2830-01 Connecting Rod РР2830-02 Camshaft РР2830-04 Injector РР2830-05 Cylinder Head РР2830-08 Engine Piston PU2002-01 Accessory Drive Pulley RL2718-07 Rocker Lever SM2703-04 Starting Motor Mounting ST2S43 Starting Motor ТВ2365 Turbocharger Arrangement ТВ2365 Turbocharger Arrangement ТВ2724 Exhaust Manifold ТН2059-06 Thermostat Housing ТР2819-05 Turbocharger Plumbing VC2068 Valve Cover WF2031-04 Corrosion Resistor WH2702-04 Oil Cooler Water Plumbing WP2703-02 Water Pump WR2719-07 External Control Module Wi XS2018-02 Exhaust Outlet Connection FH2326 Flywheel Housing

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во
GearHousing	GearHousing		Gear Housing	;
1	4973541		Housing, Gear	1;
2	3025354		Bearing, Needle	1;
3	3893913		Bearing, Needle	1;
4	3883150		Seal, О Ring	1;
5	3818060		Screw, Captive Washer Cap	11;
6	3820186		Screw, Captive Washer Cap	5;
7	3201659		Seal, Rectangular Ring	6;
8	3820945		Seal, Rectangular Ring	1;
9	3820946		Seal, Rectangular Ring	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
