WP2703-02 Water Pump
/ Cummins Серия ISMe
/68.gif)
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26

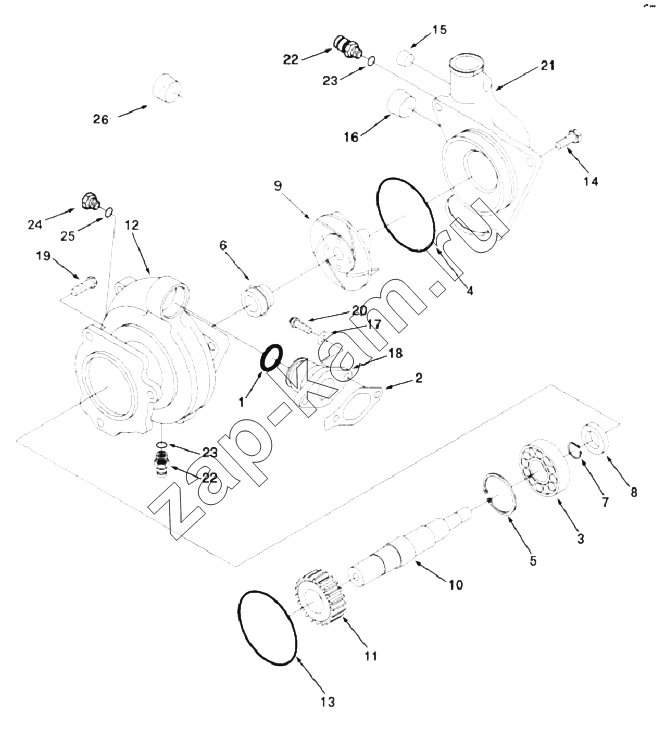

| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| WP2703-02 | WP2703-02 | Water Pump | ; | |
| 3037536 | 3037536 | Plug, Threaded | 2; | |
| 4972853 | 4972853 | Pump, Water Tla | 1; | |
| 1 | 3892095 | Seal, О Ring | 1; | |
| 2 | 3027924 | Gasket, Connection | 1; | |
| 3 | S16002 | Bearing, Ball | 2; | |
| 4 | 3820791 | Seal, О Ring | 2; | |
| 5 | 160586 | Ring, Retaining | 2; | |
| 6 | 4972860 | Seal, Water Pump | 2; | |
| 7 | 3064634 | Ring, Retaining | 2; | |
| 8 | 3019600 | Seal, Oil | 2; | |
| 9 | 3035679 | Impeller, Water Pump | 2; | |
| 10 | 3819632 | Shaft, Water Pump | 1; | |
| 11 | 3038991 | Gear, Water Pump | 1; | |
| 12 | 4926553 | Body, Water Pump | 1; | |
| 13 | 3882774 | Seal, О Ring | 2; | |
| 14 | 3335044 | Screw, Hexagon Head Cap | 3; | |
| 15 | 3008468 | Заглушка трубки | 1; | |
| 16 | 3008470 | PLUG, PIPE | 1; | |
| 17 | 3009329 | Washer, Plain | 2; | |
| 18 | 3328559 | Connection, Water Transfer | 1; | |
| 19 | 3034836 | Screw, Hexagon Head Cap | 3; | |
| 20 | 3900631 | Винт с шестигранной головкой | 2; | |
| 21 | 3073695 | Cover, Water Pump | 1; | |
| 22 | 3042619 | Nipple, Coupling | 1; | |
| 23 | 3037537 | Seal, O Ring | 1; | |
| 24 | 3037536 | Plug, Threaded | 1; | |
| 25 | 3037537 | Seal, O Ring | 1; | |
| 26 | 3008469 | Заглушка трубки | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
