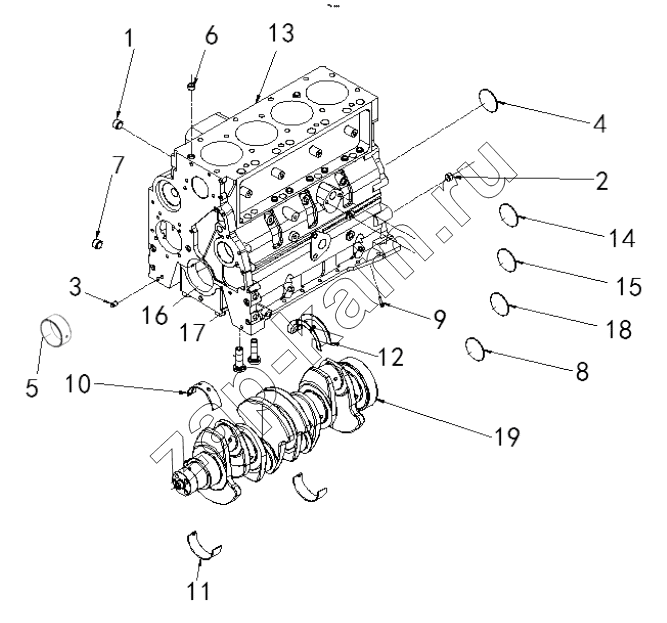

BP 9123 Cylinder block
/ DCEC 4B3.9-G12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C3008468 | PLUG, PIPE | 1; | |
| 2 | C3900068 | DOWEL, RING | 2; | |
| 3 | C3900257 | DOWEL, PIN | 2; | |
| 4 | C3900687 | PLUG, EXPANSION | 1; | |
| 5 | C3901306 | BUSHING | 1; | |
| 6 | C3902343 | DOWEL, RING | 2; | |
| 7 | C3906619 | PLUG, PIPE | 1; | |
| 8 | C3920706 | PLUG, EXPANSION | 1; | |
| 9 | C3937214 | NOZZLE, PISTON COOLING | 4; | |
| 10 | C3978818 | BEARING, MAIN | 4; | |
| 11 | C3978820 | BEARING, MAIN | 5; | |
| 12 | C3978822 | BEARING, THRUST | 1; | |
| 13 | C4991816 | BLOCK, CYLINDER | 1; | |
| 14 | C3900956 | PLUG, EXPANSION | 3; | |
| 15 | C3900965 | PLUG, EXPANSION | 3; | |
| 16 | C3903492 | CAP, MAIN BEARING | 5; | |
| 17 | C3904217 | SCREW, HEXAGON HEAD CAP | 10; | |
| 18 | C3914035 | PLUG, EXPANSION | 3; | |
| 19 | C5362422 | Crankshaft | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
