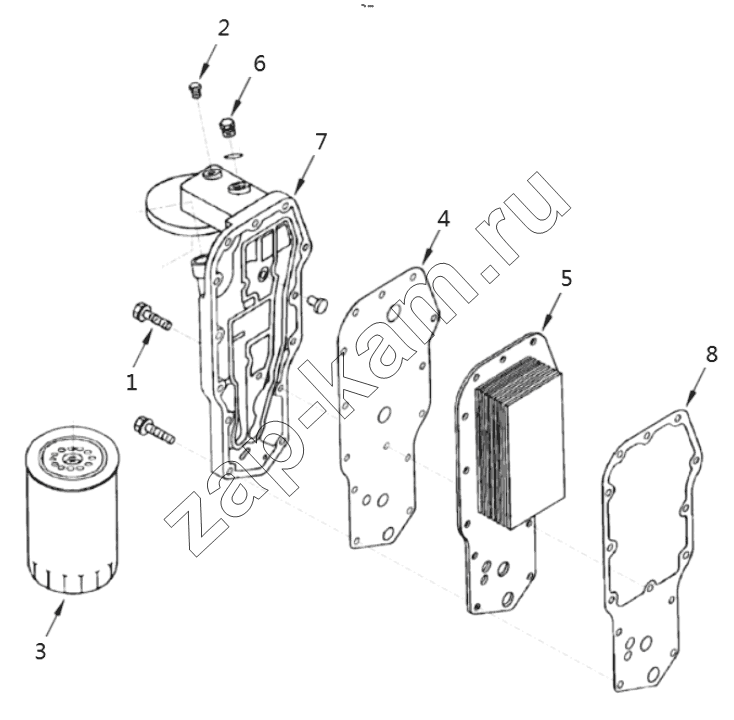

LC 9017 Oil cooler
/ DCEC 4B3.9-G12

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AC 9230 Air filter AF 9006 Crankshaft pulley AP90246 Parameter card BP 9122 Front gear chamber cover BP 9123 Cylinder block BP 9704 Rocker arm BP 9705 Camshaft follower CM 9001 Post-processing installation parts DF 9051 Front-end gear train accessory drive EC 9052 Thermostat EE 9314 Generator EH97541 Generator installation parts EH97545 Generator drive parts EI 9701 Mechanical tachometer drive EM 9311 Engine front suspension bracket EO 9106 Coolant temperature sensor EO 9148 Oil pressure sensor EO 9156 Speed sensor FA 9514 Fan driver FE 9081 Supercharger compensation connecting tube FF 9007 Fuel filter FF90109 Fuel filter connection line FH 9634 Flywheel shell FN 9213 Engine fan FP91295 Fuel pump connector FP92090 Fuel pump bracket FP95504 Fuel pump FS90250 Oil pump FT 9395 Fuel line FW90104 Flywheel LA 9113 Engine lug LB 9101 label LC 9017 Oil cooler LG 9001 Oil ruler LP 9062 Oil pump OB 9509 Cylinder block refueling accessories OP 9004 Oil pan OP 9704 Oil pan mounting parts PP45357 Performance parts PP97342 Cylinder head mounting parts PP99438 Cylinder head SM 9702 Starter mounting parts SP 9108 Fan spacer SS 9148 Paint SS 9530 Random pieces ST 9720 Starter TH 9114 Thermostat seat VC 9001 Valve chamber cover WH 9131 Engine coolant in addition to trachea WI 9226 Water inlet connecting pipe WI 9701 Water inlet connecting pipe WP 9617 Water pump XM 9060 Exhaust manifold XS 9467 Exhaust connector

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	C3900632		SCREW, HEX FLANGE HEAD CA	14;
2	C3906619		PLUG, PIPE	1;
3	C3908616		CARTRIDGE, LUB OIL FILTER	1;
4	C3942915		GASKET, FILTER HEAD	1;
5	C3957543		CORE, COOLER	1;
6	C3977852		PLUG, THREADED	1;
7	C4934218		HEAD, LUB OIL FILTER	1;
8	C5266445		GASKET, OIL COOLER CORE	1;
