TH 9114ZZ Thermostat seat
/ DCEC 4B3.9-G1

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AC 9230ZZ Air Filter AP90246ZZ Parameter plate BP 9122ZZ Front gear cover set BP 9123ZZ Cylinder BP 9704ZZ Rocker arm set BP 9705ZZ Camshaft Follower Set CM 9001ZZ Actuator cover set DA 9208ZZ Torsional Vibration Damper Set DF 9051ZZ Front Gear Train Accessory Drive Set EA 9101ZZ Electronic Accessory Set EC 9052ZZ Thermostat Group EE 9314ZZ Generator set EH97541ZZ Generator Mounting Parts EH97545ZZ Generator Drive Set EI 9701ZZ Mechanical Tachometer Drive Group EM 9311ZZ Engine front mount bracket set EO 9106ZZ Signal generator set EO 9107ZZ Oil Pressure Sensor EO 9156ZZ Speed Sensor Set FA 9514ZZ Fan Driver Set FE 9081ZZ Booster compensator connecting pipe set FF 9007ZZ Fuel Filter Set FF90109ZZ Fuel filter connecting line FH 9634ZZ Flywheel housing set FN 9213ZZ Engine fan pack FP91078ZZ Fuel Pump FP91295ZZ Fuel pump connection FP92090ZZ Fuel pump bracket FS 9986ZZ Oil Transfer Pump FT 9395ZZ Fuel Line FV 9484ZZ Oil Shutoff Solenoid Valve FW90104ZZ Flywheel LA 9113ZZ Engine Lifting Eye Set LB 9101ZZ Label LC 9017ZZ Oil Cooler LG 9001ZZ Oil dipstick set LP 9062ZZ Oil Pump Set OB 9509ZZ Cylinder block refueling accessory set OP 9004ZZ Oil Pan Set OP 9704ZZ Oil Pan Mounting Kit PP43114ZZ Performance Parts PP97016ZZ Cylinder head group PP97342ZZ Cylinder head mount RE 9055ZZ Engine rear mount group SB 9104ZZ Electronic Start Accessory Set SM 9702ZZ Starter Mounting Kit SP 9108ZZ Fan Spacer Set SS 9148ZZ Paint set SS 9530ZZ Random Kit SS 9697ZZ Random Kit ST 9451ZZ Starter set TH 9114ZZ Thermostat seat TL 9118ZZ Throttle bracket set TL 9171ZZ Throttle Control TO90000ZZ Service Tool VC 9001ZZ Valve cover set WH 9131ZZ Engine coolant outlet pipe group WI 9226ZZ Inlet Hose Connector Set WI 9701ZZ Inlet pipe connector set WP 9617ZZ Water Pump Set XM 9060ZZ Exhaust Manifold XS 9467ZZ Exhaust Connection

1

2

3

4

5

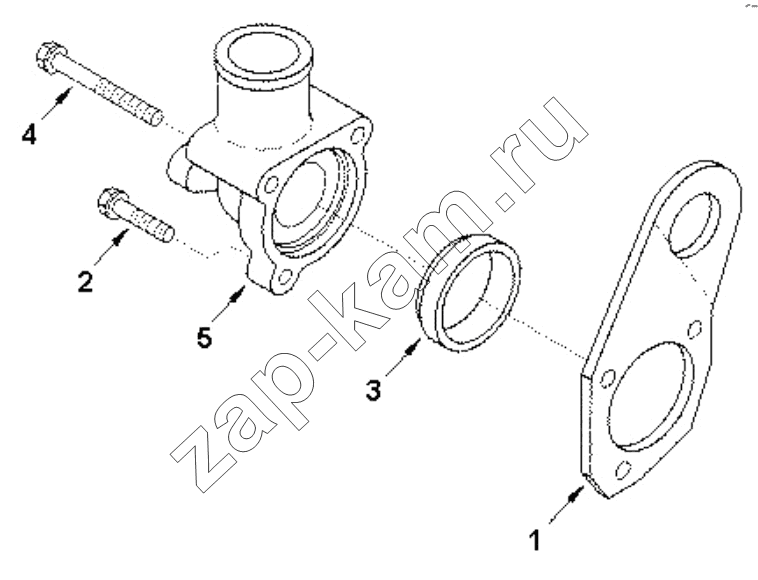

Поз.	Артикул		Название детали	Кол-во	Цена
1	C3281246		BRACKET, LIFTING	1;	-
2	C3900632		SCREW, HEX FLANGE HEAD CA	1;	-
3	C3923331		GASKET, THM HOUSING COVER	1;	-
4	C3926972		SCREW, HEX FLANGE HEAD CA	2;	-
5	C5257270		HOUSING, THERMOSTAT	1;	-
