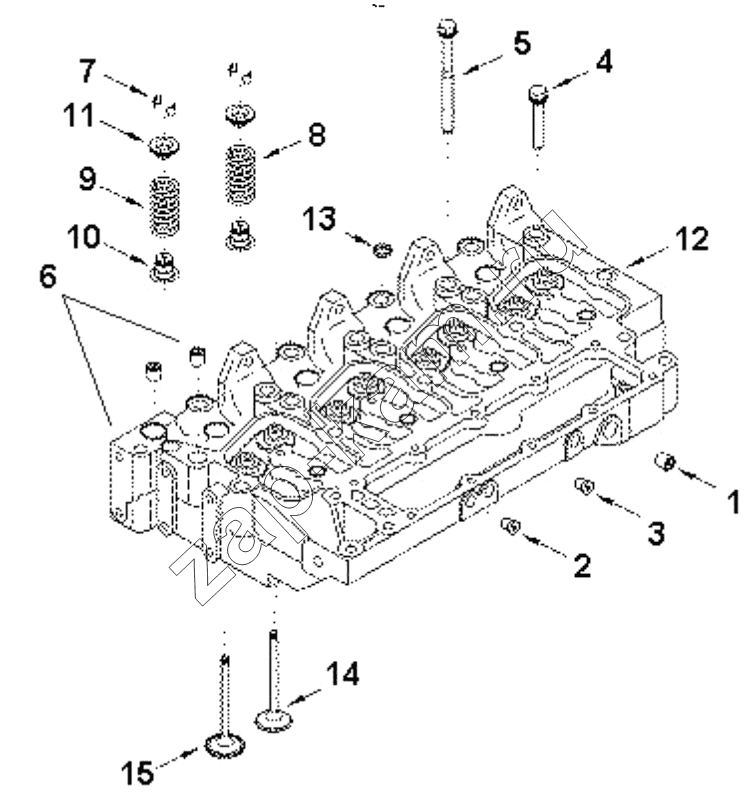

PP97016ZZ Cylinder head set
/ DCEC 4BT3.9-G1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | C3008468 | PLUG, PIPE | 2; | - | |
| 2 | C3906619 | PLUG, PIPE | 1; | - | |
| 3 | C3906619 | PLUG, PIPE | 1; | - | |
| 4 | C3920779 | SCREW, HEX FLANGE HEAD CA | 4; | - | |
| 5 | C3920780 | SCREW, HEX FLANGE HEAD CA | 10; | - | |
| 6 | C3967432 | HEAD, CYLINDER | 1; | - | |
| 7 | C3900250 | COLLET, VALVE | 16; | - | |
| 8 | C3916691 | SPRING, VALVE | 4; | - | |
| 9 | C3926700 | SPRING, VALVE | 4; | - | |
| 10 | C3957912 | SEAL, VALVE STEM | 8; | - | |
| 11 | C3957913 | RETAINER, VALVE SPRING | 8; | - | |
| 12 | C3966448 | HEAD, CYLINDER | 1; | - | |
| 13 | C3812092 | PLUG, EXPANSION | 3; | - | |
| 14 | C4994143 | VALVE, EXHAUST | 4; | - | |
| 15 | C4995554 | VALVE, INTAKE | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
