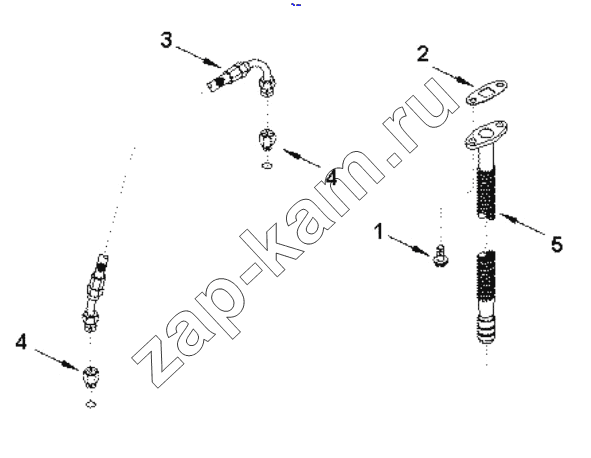

TP97452ZZ Supercharger pipeline group
/ DCEC 4BT3.9-G1

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AC 9184ZZ Air filter AP90246ZZ Parameter card BP 9073ZZ Cylinder block set BP 9122ZZ Front gear chamber cover set BP 9704ZZ Rocker arm set BP 9705ZZ Camshaft follower set CM 9001ZZ Push rod chamber cover set DA 9208ZZ Torsional vibration shock absorber set DF 9051ZZ Front-end gear train accessory drive group EA 9101ZZ Electronic Accessory Group EC 9052ZZ Thermostat group EE 9314ZZ Generator set EH97541ZZ Generator installation parts EH97545ZZ Generator drive set EI 9701ZZ Mechanical tachometer drive group EM 9311ZZ Engine front suspension bracket set EO 9106ZZ Signal generating device group EO 9107ZZ Oil pressure sensor EO 9156ZZ Speed sensor group FA 9514ZZ Fan drive set FE 9081ZZ Booster compensator connecting tube set FF 9007ZZ Fuel filter set FF90109ZZ Fuel filter connection line FH 9634ZZ Flywheel shell set FN 9213ZZ Engine fan set FP91079ZZ Fuel pump FP91295ZZ Fuel pump connector FS 9986ZZ Oil pump FT 9395ZZ Fuel line FV 9484ZZ Oil-off solenoid valve FW90104ZZ Flywheel set LA 9113ZZ Engine lug set LB 9101ZZ Label LC 9018ZZ Oil cooler set LG90372ZZ Oil ruler set LP 9062ZZ Oil pump set OB 9509ZZ Cylinder block refueling accessory group OP 9004ZZ Oil pan set OP 9704ZZ Oil pan mounting kit PP43115ZZ Performance parts PP97016ZZ Cylinder head set PP97342ZZ Cylinder head mounting parts PP99396ZZ Supercharger RE 9055ZZ Engine rear suspension group SB 9104ZZ Electronic starter accessory set SM 9702ZZ Starter installation kit SP 9108ZZ Fan spacer group SS 9148ZZ Paint set SS 9530ZZ Random piece set SS 9697ZZ Random piece set ST 9451ZZ Starter unit TB91642ZZ Supercharger layout TH 9114ZZ Thermostat seat TL 9118ZZ Throttle bracket group TL 9171ZZ Throttle control piece TO90000ZZ Service tool TP97452ZZ Supercharger pipeline group VC 9001ZZ Valve chamber cover set WH 9131ZZ Engine coolant outlet pipe set WI 9226ZZ Inlet pipe connector set WI 9701ZZ Inlet pipe connector set WP 9617ZZ Water pump set XS 9471ZZ Exhaust connector

1

2

3

4

4

5

Поз.	Артикул		Название детали	Кол-во
1	C3900631		SCREW, HEX FLANGE HEAD CA	2;
2	C3937706		GASKET, OIL DRAIN	1;
3	C3974113		HOSE, FLEXIBLE	1;
4	C3975113		CONNECTOR, MALE	2;
5	C5255217		CONNECTION, TUR OIL DRAIN	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
