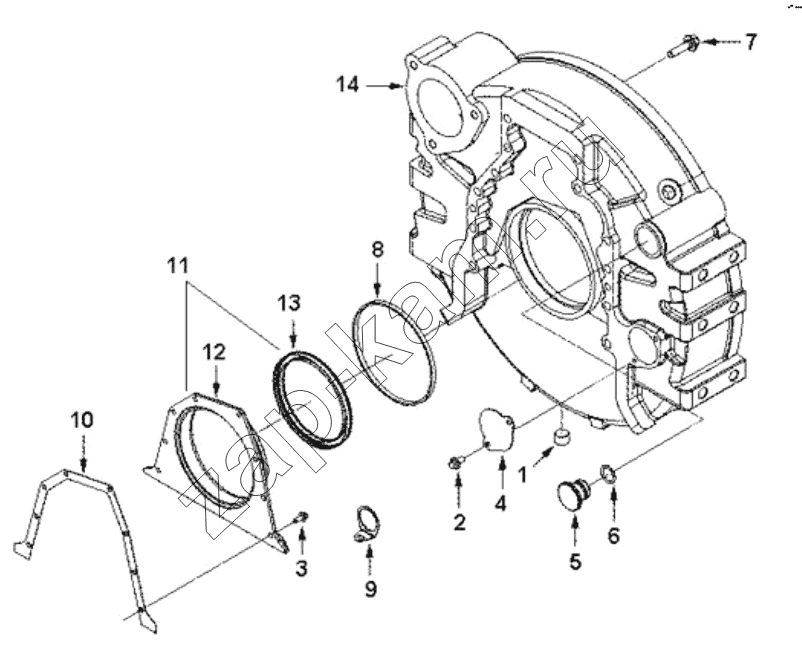

FH 9634ZZ Flywheel housing group
/ DCEC 4BTA3.9-G2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | C3008469 | PLUG, PIPE | 1; | - | |
| 2 | C3900225 | SCREW, HEXAGON HEAD CAP | 2; | - | |
| 3 | C3900627 | SCREW, HEX FLANGE HEAD CA | 6; | - | |
| 4 | C3908095 | PLATE, COVER | 1; | - | |
| 5 | C3910248 | PLUG, O RING | 1; | - | |
| 6 | C3910260 | SEAL, O RING | 1; | - | |
| 7 | C3910540 | SCREW, HEX FLANGE HEAD CA | 8; | - | |
| 8 | C3912473 | SEAL, RECTANGULAR RING | 1; | - | |
| 9 | C3928989 | CLIP | 1; | - | |
| 10 | C3938159 | GASKET, REAR COVER | 1; | - | |
| 11 | C4933323ZZ | COVER, REAR | 1; | - | |
| 12 | C3936904 | COVER, REAR | 1; | - | |
| 13 | C4982415 | SEAL, OIL | 1; | - | |
| 14 | C4947579 | HOUSING, FLYWHEEL | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
