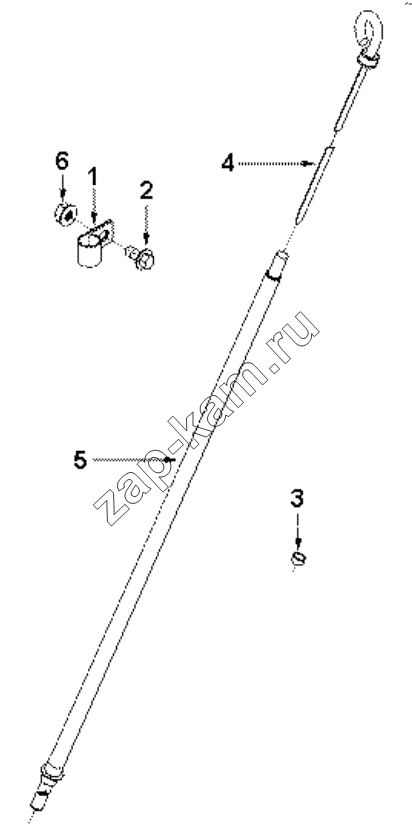

LG90372ZZ Oil dipstick group
/ DCEC 4BTA3.9-G2

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AC 9184ZZ Air filter AP90246ZZ Parameter plate BP 9073ZZ Cylinder block group BP 9122ZZ Front gear chamber cover group BP 9704ZZ Rocker arm group BP 9705ZZ Camshaft follower group CM 9001ZZ Putter chamber cover group DA 9208ZZ Torsional vibration damper group DF 9051ZZ Front-end gear train accessory drive group EA 9101ZZ Electronic accessory group EC 9052ZZ Thermostat group EE 9314ZZ Generator set EH97541ZZ Generator mounting parts EH97545ZZ Generator drive unit EI 9701ZZ Mechanical tachometer drive group EM 9311ZZ Engine front suspension bracket group EO 9106ZZ Signal generating device group EO 9107ZZ Oil Pressure Sensor EO 9156ZZ Speed sensor group FA 9514ZZ Fan drive unit FE 9081ZZ Booster compensator connecting pipe set FF 9007ZZ Fuel filter group FF90109ZZ Fuel filter connection line FH 9634ZZ Flywheel housing group FN 9180ZZ Engine fan group FP91296ZZ Fuel pump connection FP91901ZZ Fuel pump FS 9986ZZ Pump FT 9322ZZ Fuel line FW90104ZZ Flywheel LA 9113ZZ Engine lug group LB 9101ZZ label LC 9018ZZ Oil cooler group LG90372ZZ Oil dipstick group LP 9062ZZ Oil pump set OB 9509ZZ Cylinder block refueling accessory group OP 9004ZZ Oil pan group OP 9704ZZ Oil pan mounting kit PP43116ZZ Performance parts PP97016ZZ Cylinder head assembly PP97342ZZ Cylinder head mounting parts PP99396ZZ Supercharger RE 9055ZZ Engine rear mounting group SB 9104ZZ Electronic starter accessory group SM 9702ZZ Starter mounting kit SP 9108ZZ Fan block group SS 9148ZZ Paint group SS 9530ZZ Random set ST 9451ZZ Starter TB91623ZZ Supercharger layout TH 9114ZZ Thermostat seat TO90000ZZ Service tools TP97452ZZ Turbocharger pipeline group VC 9001ZZ Valve chamber cover group WA 9759ZZ Intercooler pipeline WH 9131ZZ Engine coolant outlet pipe group WI 9226ZZ Inlet pipe connector group WI 9701ZZ Inlet pipe connector group WP 9617ZZ Water pump set XS 9471ZZ Exhaust connection

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	C108722		CLIP	1;	-
2	C3900629		SCREW, HEX FLANGE HEAD CA	1;	-
3	C3900955		PLUG, EXPANSION	1;	-
4	C4937482		DIPSTICK	1;	-
5	C4937483		TUBE, OIL GAUGE	1;	-
6	C4991519		NUT, REGULAR HEXAGON	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
